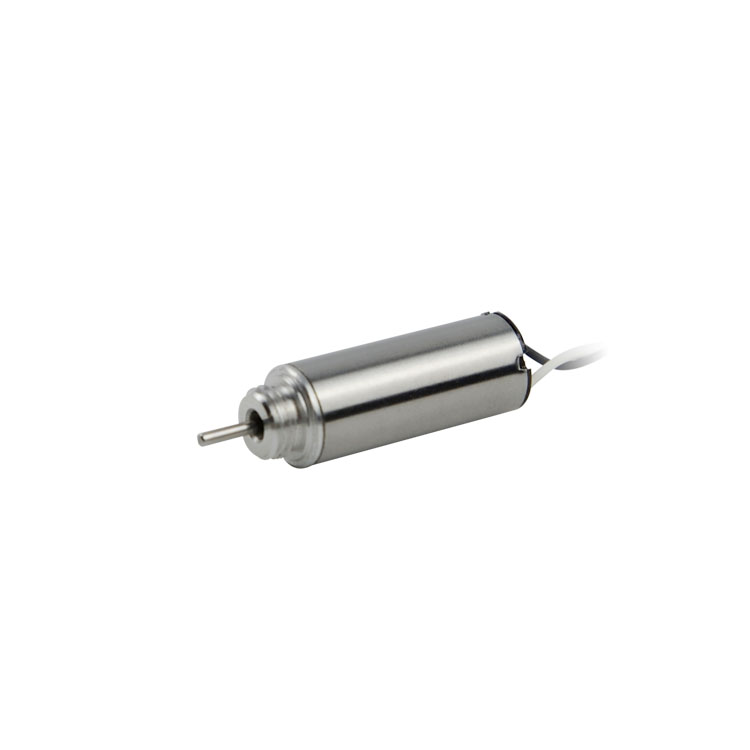

0615N5M

3~6V Precision DC Coreless Motor
Diameter: 6mm; Length: 15mm; Voltage: 3~6V; Max. output power: 0.09~0.83W; Speed: 12200~29500rpm; Nominal torque: 0.05~0.3mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Gearboxes.

Ask for datasheet

Customized Assessment

Ask for a quotation

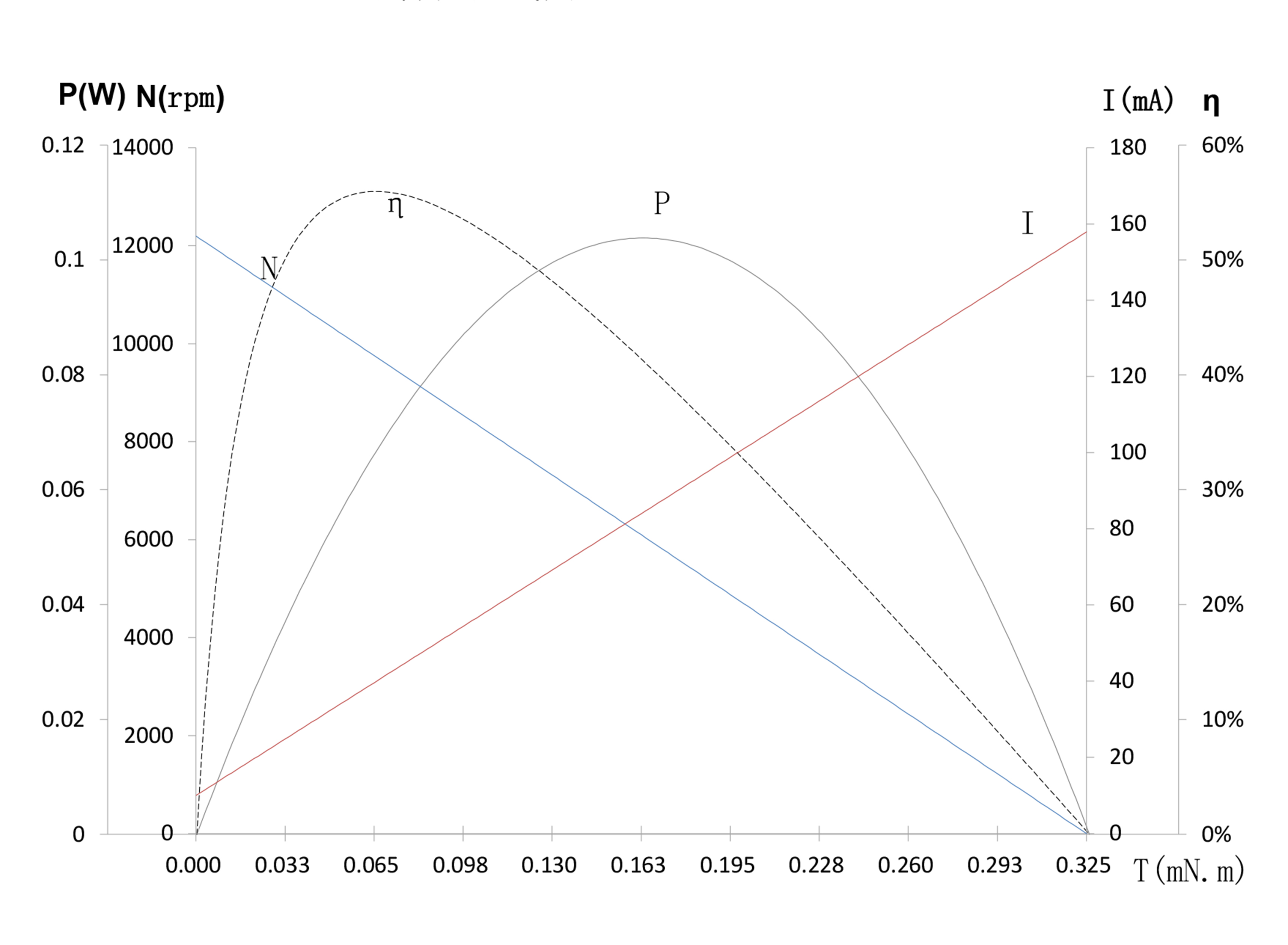

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	01-122-3.0	02-185-3.0	03-295-6.0
Voltage	V	3.0	3.0	6.0
Terminal resistance	Ω	19	18.5	10.1
No-load speed	rpm	12200	18500	29500
No-load current	mA	10	18	20
Stall torque	mNm	0.33	0.2	1.07
Stall current	mA	160	160	590
Nominal torque	mNm	0.1	0.05	0.3
Nominal speed	rpm	8500	13770	21230
Nominal current	mA	60	50	180
Max.output power	W	0.11	0.09	0.83
Max.efficiency	%	56	44	67
Back-EMF constant	mV/rpm	0.2	0.1	0.2
Torque constant	mNm/A	2.2	1.4	1.9
Speed/torque gradient	rpm/mNm	37000	94600	27600
Rotor inertia	gcm²	0.015	0.015	0.015
Weight	g	2.5	2.5	2.5
