1230N5M

5.3~24V Precision DC Coreless Motor
Diameter: 12.4mm; Length:30.8mm; Voltage: 5.3~24V; Max. output power: 0.52~3.36W; Speed: 4450~11300rpm; Nominal torque: 0.9~3mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Gearheads, Encoder.

Ask for datasheet

Customized Assessment

Ask for a quotation

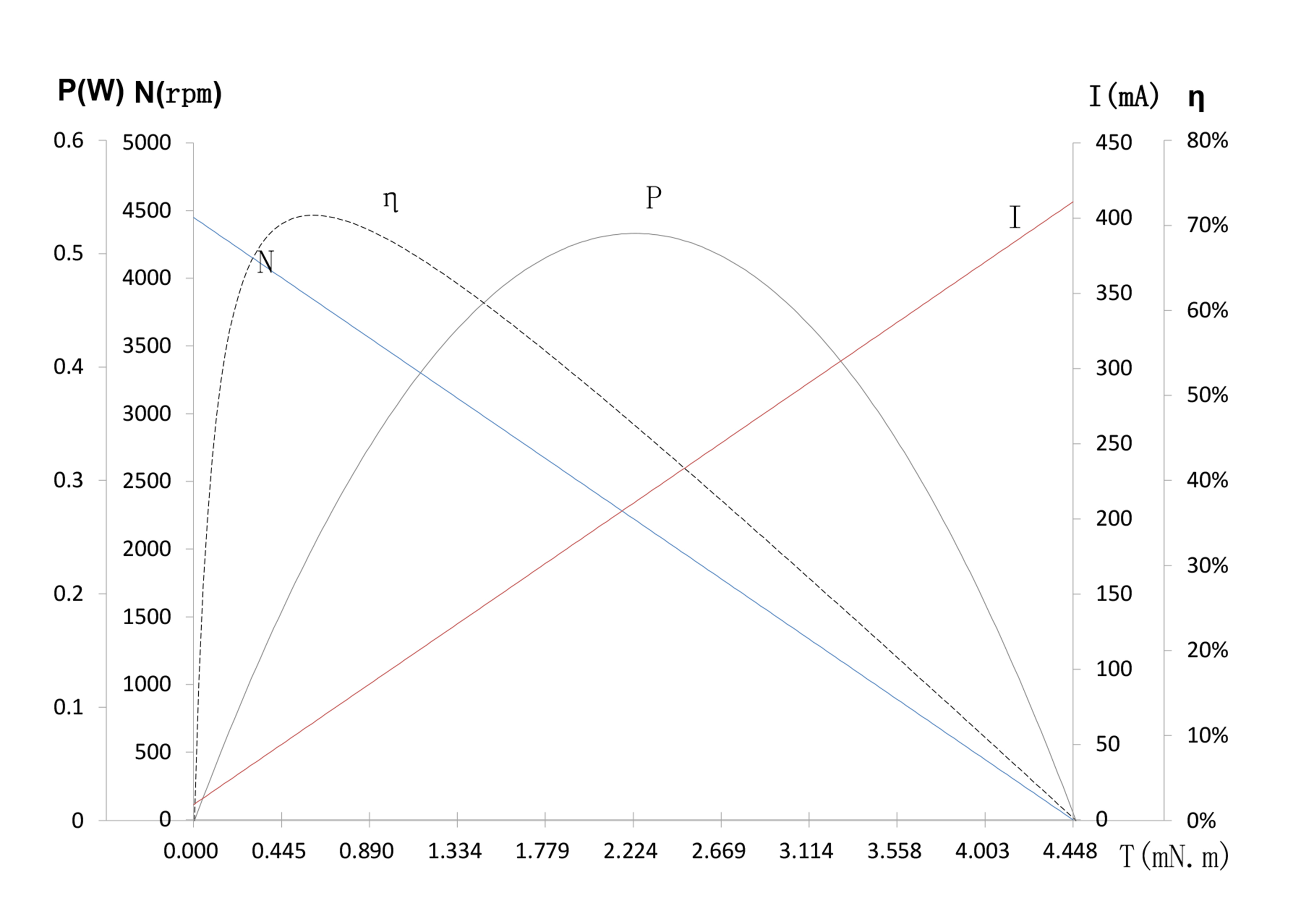

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	06-44-5.3	15-113-12.0	05-76-24.0
Voltage	V	5.3	12.0	24.0
Terminal resistance	Ω	12.9	10.4	81
No-load speed	rpm	4450	11300	7600
No-load current	mA	10	15	5
Stall torque	mNm	4.4	11.4	8.7
Stall current	mA	410	1150	300
Nominal torque	mNm	0.9	3	2.0
Nominal speed	rpm	3550	8320	5860
Nominal current	mA	90	310	70
Max.output power	W	0.52	3.36	1.74
Max.efficiency	%	71	79	76
Back-EMF constant	mV/rpm	1.2	1	3.1
Torque constant	mNm/A	11.1	10	29.6
Speed/torque gradient	rpm/mNm	1000	990	900
Rotor inertia	gcm²	0.25	0.25	0.25
Weight	g	17.7	17.7	17.9
