1319N7M

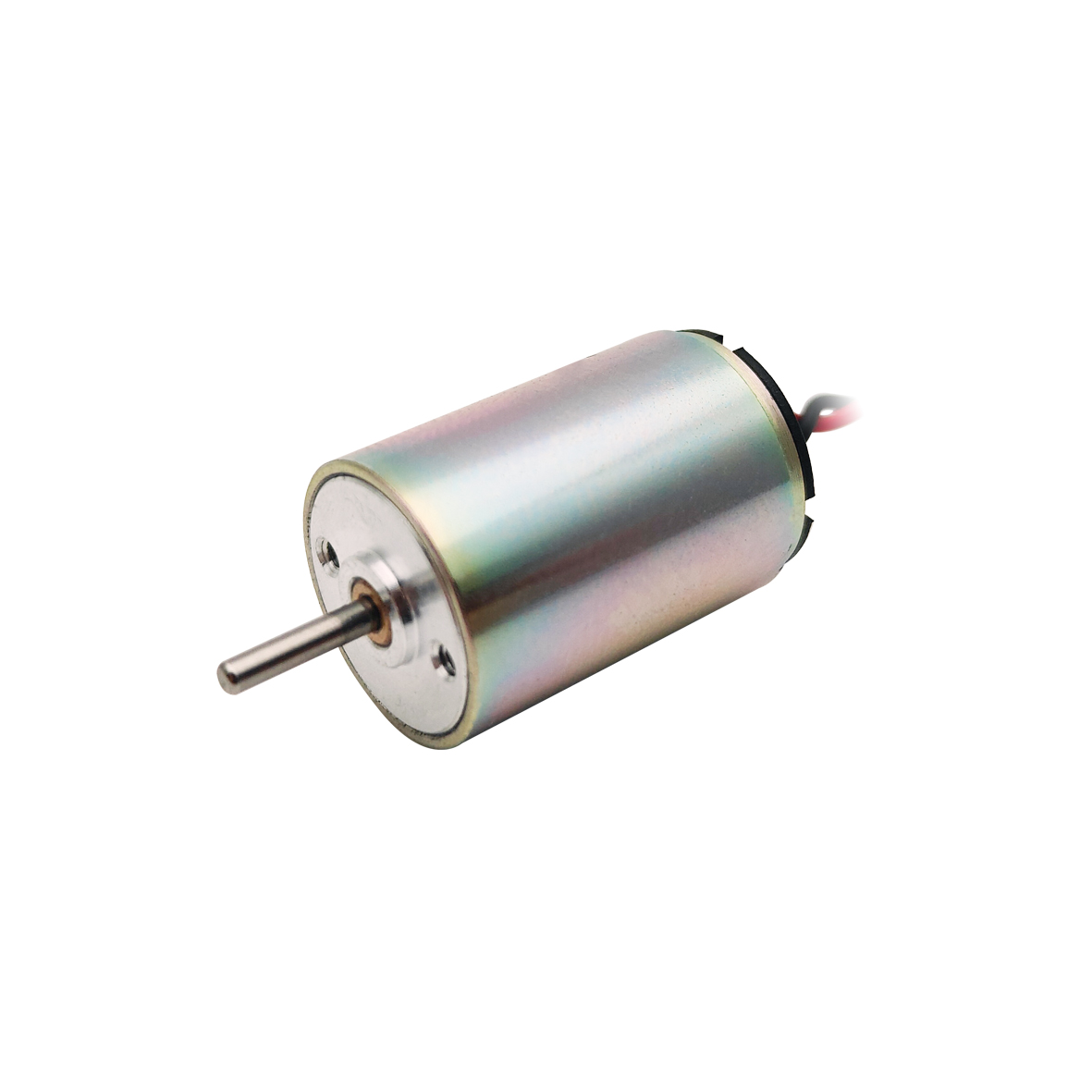

6~12V Precision DC Coreless Motor
Diameter: 13mm; Length:19.2mm; Voltage: 6~12V; Max. output power: 0.56~1.07W; Speed: 8800~12500rpm; Nominal torque: 0.5~1mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

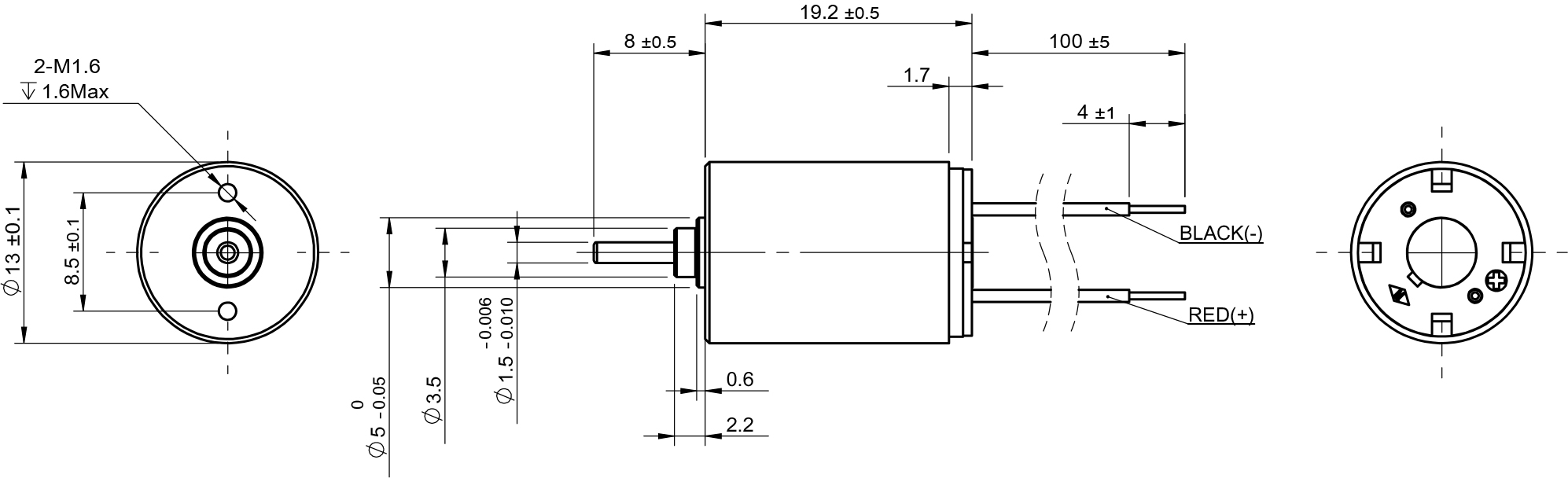

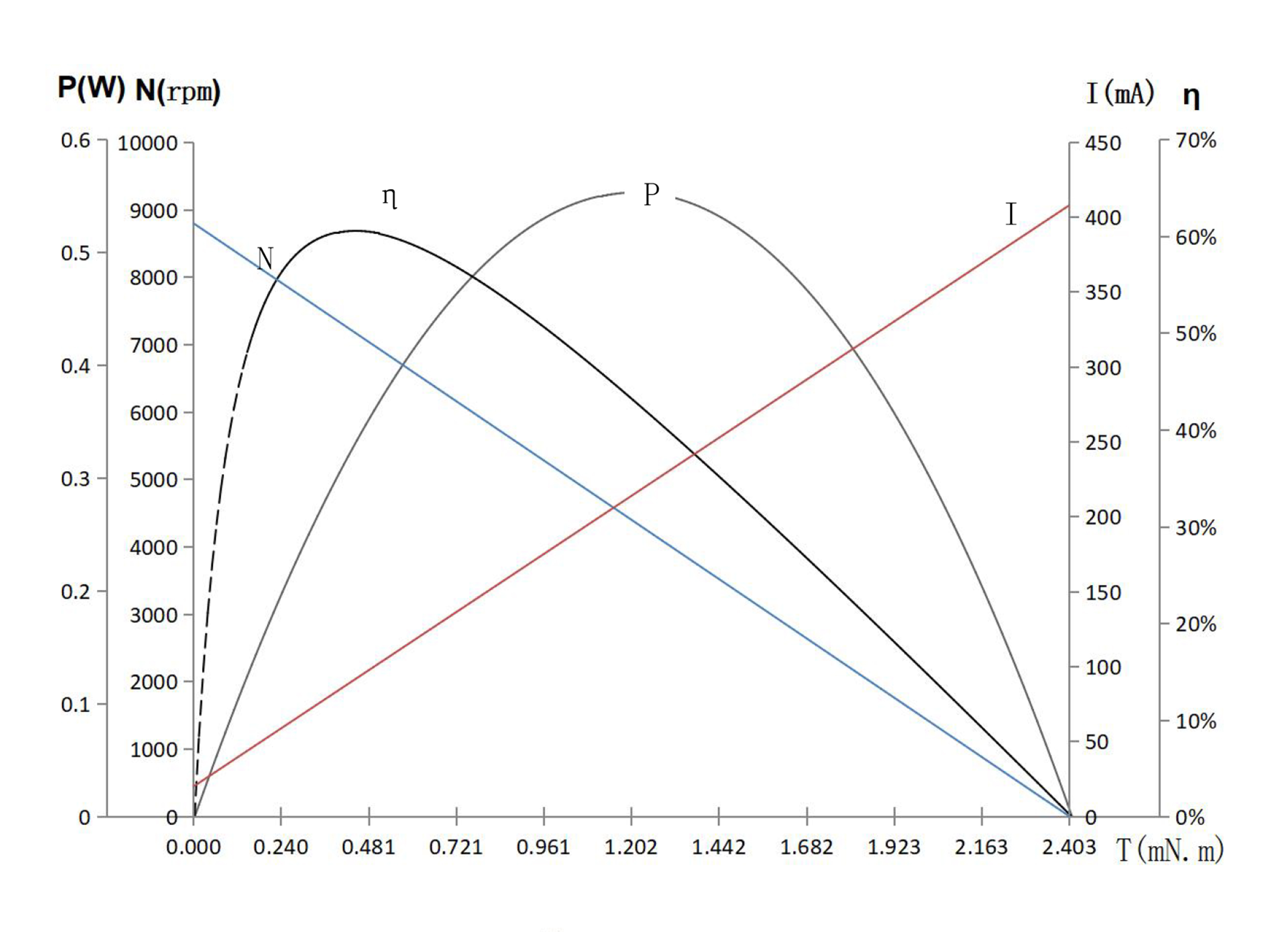

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	02-88-6.0	03-100-9.0	01-125-12.0
Voltage	V	6.0	9.0	12.0
Terminal resistance	Ω	14.7	25.5	32.0
No-load speed	rpm	8800	10000	12500
No-load current	mA	20	15	12
Stall torque	mNm	2.4	2.8	3.3
Stall current	mA	410	350	380
Nominal torque	mNm	0.5	0.5	1.0
Nominal speed	rpm	6980	8190	8670
Nominal current	mA	100	80	120
Max.output power	W	0.56	0.72	1.07
Max.efficiency	%	61	63	68
Back-EMF constant	mV/rpm	0.6	0.9	0.9
Torque constant	mNm/A	6.2	8.2	8.9
Speed/torque gradient	rpm/mNm	3600	3600	3800
Rotor inertia	gcm²	0.2	0.2	0.2
Weight	g	11	11	11
