1515N5M

6~18V Precision DC Coreless Motor
Diameter: 15mm; Length:15.2mm; Voltage: 6~18V; Max. output power: 1.52~5.33W; Speed: 12000~26000rpm; Nominal torque: 1~1.5mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

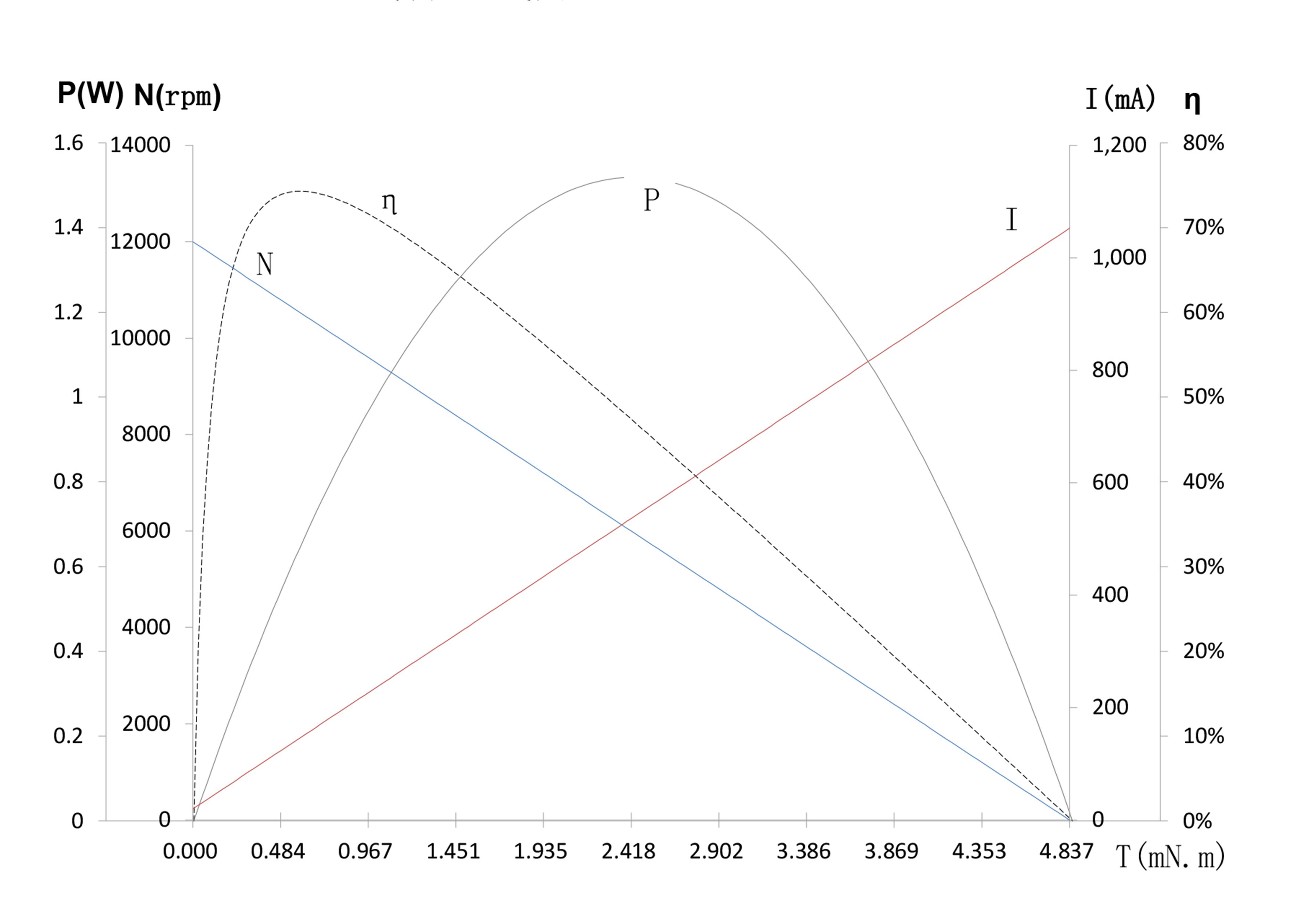

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	04-120-6.0	02-260-7.4	07-220-18.0
Voltage	V	6.0	7.4	18.0
Terminal resistance	Ω	5.7	2.5	30.5
No-load speed	rpm	12000	26000	22000
No-load current	mA	20	40	15
Stall torque	mNm	4.8	7.8	4.4
Stall current	mA	1050	2960	590
Nominal torque	mNm	1.0	1.5	1.0
Nominal speed	rpm	9510	21020	16980
Nominal current	mA	230	600	150
Max.output power	W	1.52	5.33	2.52
Max.efficiency	%	74	78	71
Back-EMF constant	mV/rpm	0.5	0.3	0.8
Torque constant	mNm/A	4.7	2.7	7.6
Speed/torque gradient	rpm/mNm	2500	3300	5000
Rotor inertia	gcm²	0.21	0.21	0.21
Weight	g	12	12	12
