1625N5M

3.7~15V Precision DC Coreless Motor
Diameter: 16mm; Length:25.2mm; Voltage: 3.7~15V; Max. output power: 0.43~1.42W; Speed: 6000~14500rpm; Nominal torque: 0.5~1mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

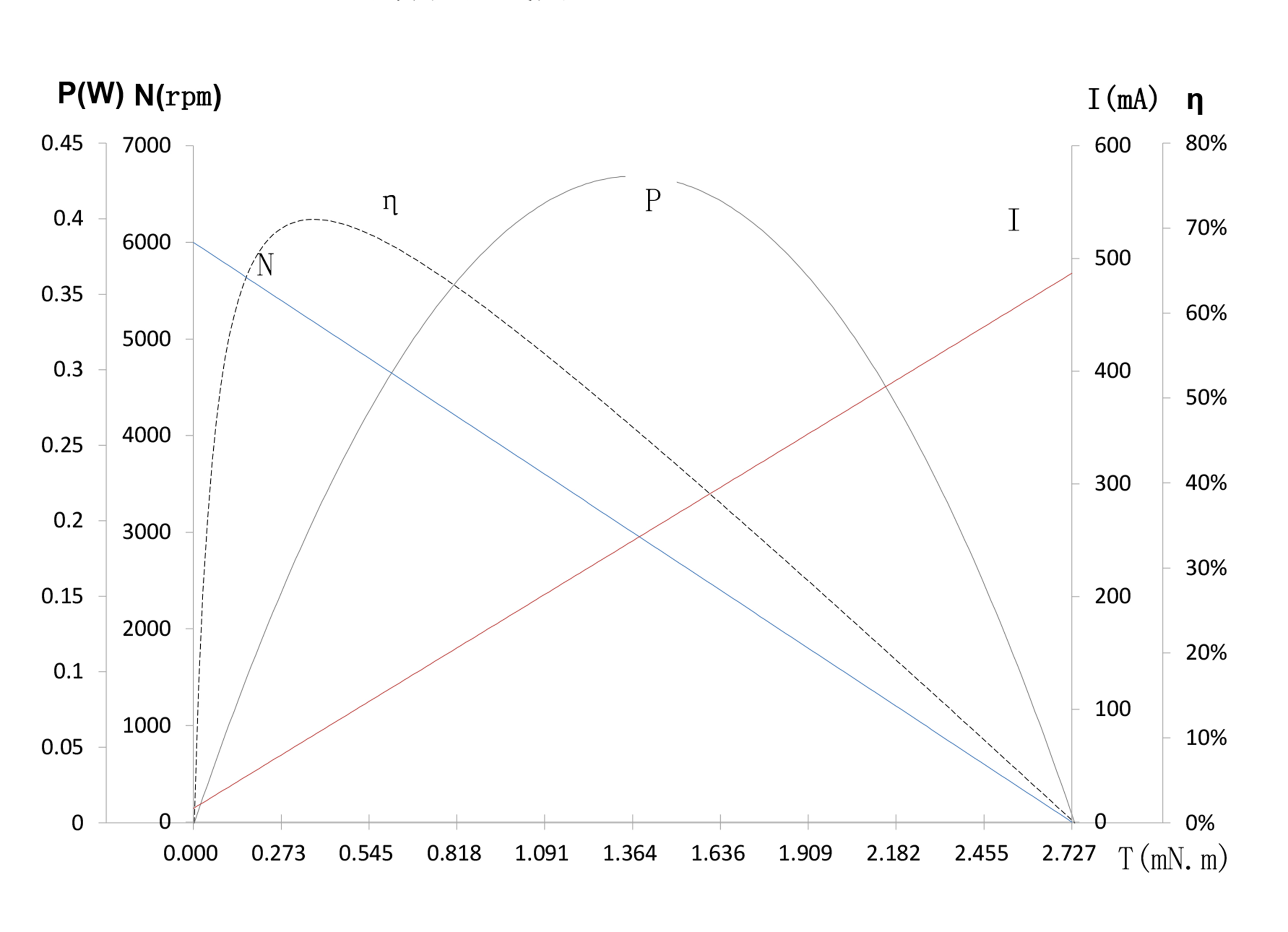

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	24-60-3.7	56-100-6.0	51-145-15.0
Voltage	V	3.7	6.0	15.0
Terminal resistance	Ω	7.6	6.1	45
No-load speed	rpm	6000	10000	14500
No-load current	mA	12	18	10
Stall torque	mNm	2.7	5.4	3.1
Stall current	mA	490	980	330
Nominal torque	mNm	0.5	1.0	1.0
Nominal speed	rpm	4910	8150	9770
Nominal current	mA	100	200	110
Max.output power	W	0.43	1.42	1.17
Max.efficiency	%	71	75	68
Back-EMF constant	mV/rpm	0.6	0.6	1.0
Torque constant	mNm/A	5.7	5.6	9.6
Speed/torque gradient	rpm/mNm	2200	1800	4700
Rotor inertia	gcm²	0.78	0.78	0.78
Weight	g	21	21	21
