1625N5M2B

7.5~12V Precision DC Coreless Motor
Diameter: 16mm; Length:25.2mm; Voltage: 7.5~12V; Max. output power: 0.75~1.15W; Speed: 9200~11000rpm; Nominal torque: 0.5~1mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

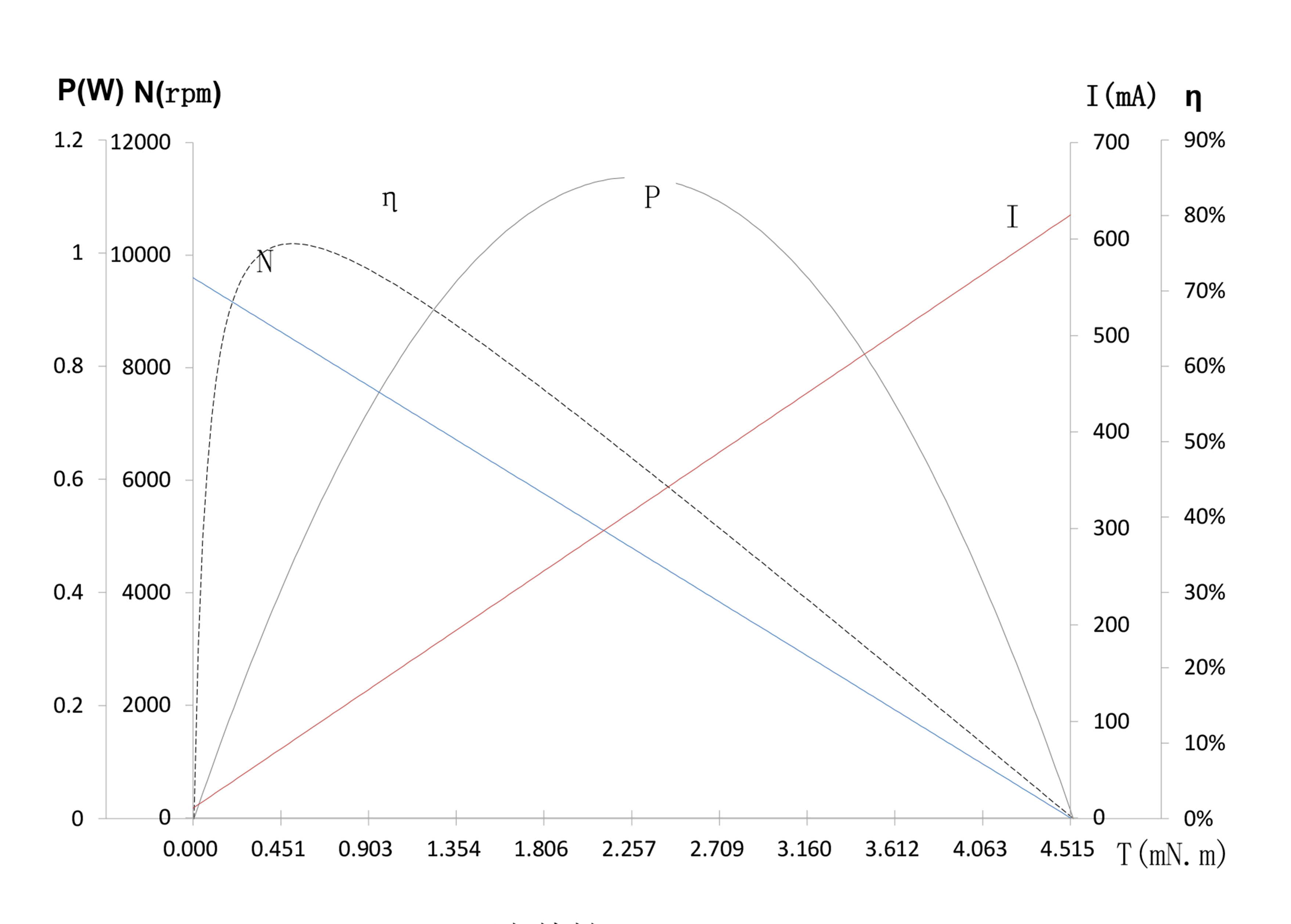

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	47-96-7.5	65-92-9.0	66-110-12.0
Voltage	V	7.5	9.0	12.0
Terminal resistance	Ω	12.0	25.5	36
No-load speed	rpm	9600	9200	11000
No-load current	mA	10	9	8
Stall torque	mNm	4.6	3.1	3.3
Stall current	mA	630	350	330
Nominal torque	mNm	1.0	0.5	0.5
Nominal speed	rpm	7490	7720	9320
Nominal current	mA	150	60	60
Max.output power	W	1.15	0.75	0.94
Max.efficiency	%	76	71	71
Back-EMF constant	mV/rpm	0.8	1.0	1.1
Torque constant	mNm/A	7.3	9.1	10.2
Speed/torque gradient	rpm/mNm	2100	3000	3400
Rotor inertia	gcm²	0.78	0.78	0.78
Weight	g	19	19	19
