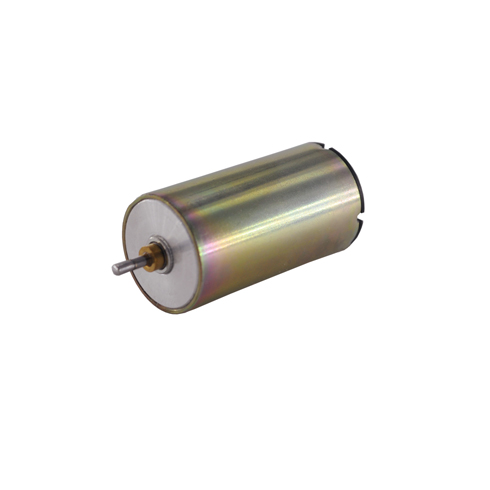

1630N5M

5~12V Precision DC Coreless Motor
Diameter: 16mm; Length:30mm; Voltage: 5~12V; Max. output power: 1.1~3.8W; Speed: 6600~8700rpm; Nominal torque: 1~4mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

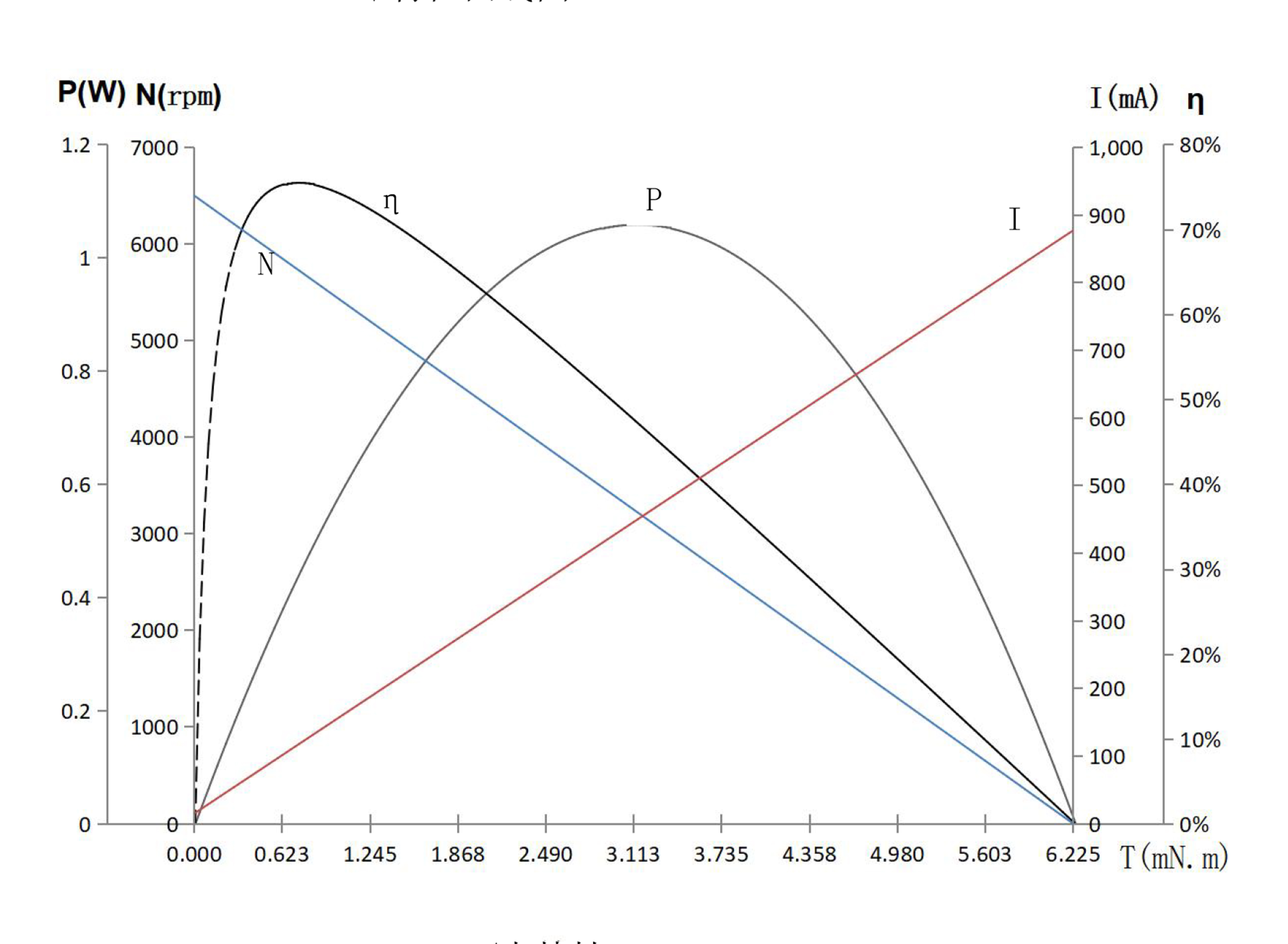

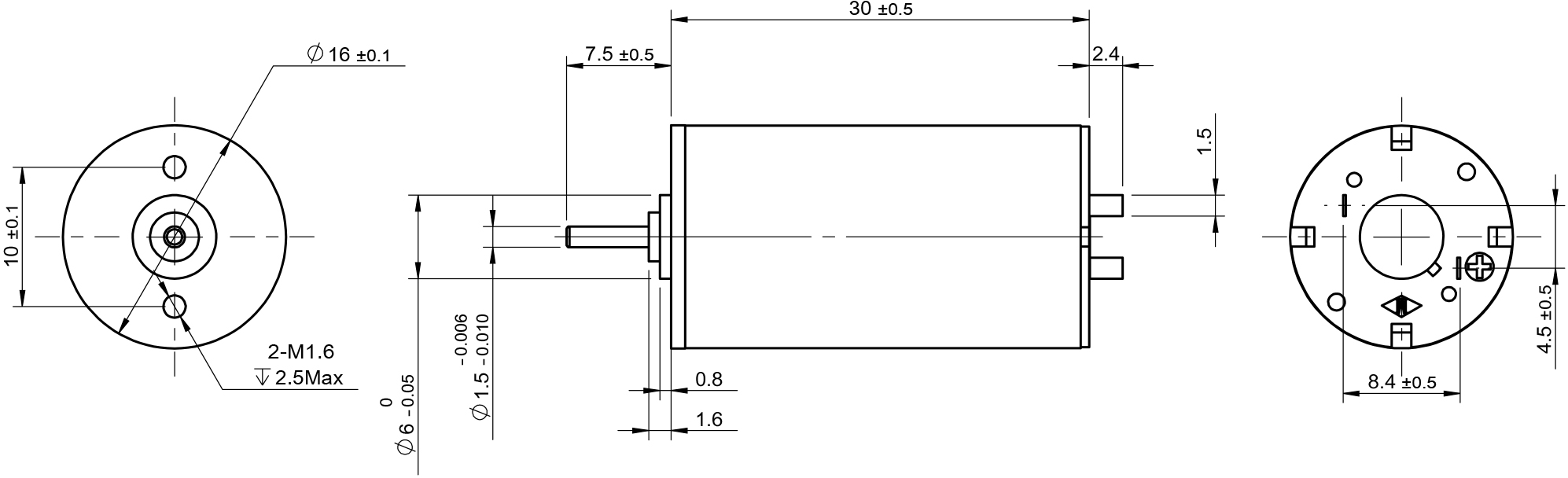

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	39-65-5.0	29-78-7.4	36-87-12.0
Voltage	V	5.0	7.4	12.0
Terminal resistance	Ω	5.7	5.9	9.4
No-load speed	rpm	6500	7800	8700
No-load current	mA	15	15	7
Stall torque	mNm	6.2	11.1	16.7
Stall current	mA	880	1250	1280
Nominal torque	mNm	1	2.5	4.0
Nominal speed	rpm	5460	6040	6610
Nominal current	mA	150	290	310
Max.output power	W	1.1	2.3	3.8
Max.efficiency	%	76	79	86
Back-EMF constant	mV/rpm	0.8	0.9	1.4
Torque constant	mNm/A	7.2	9.0	13.1
Speed/torque gradient	rpm/mNm	1000	700	500
Rotor inertia	gcm²	0.6	0.6	0.6
Weight	g	26	26	26
