1635N9M

12~24V Precision DC Coreless Motor
Diameter: 16mm; Length:36.5mm; Voltage: 12~24V; Max. output power: 4.4~12.9W; Speed: 7700~13700rpm; Nominal torque: 5~6mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

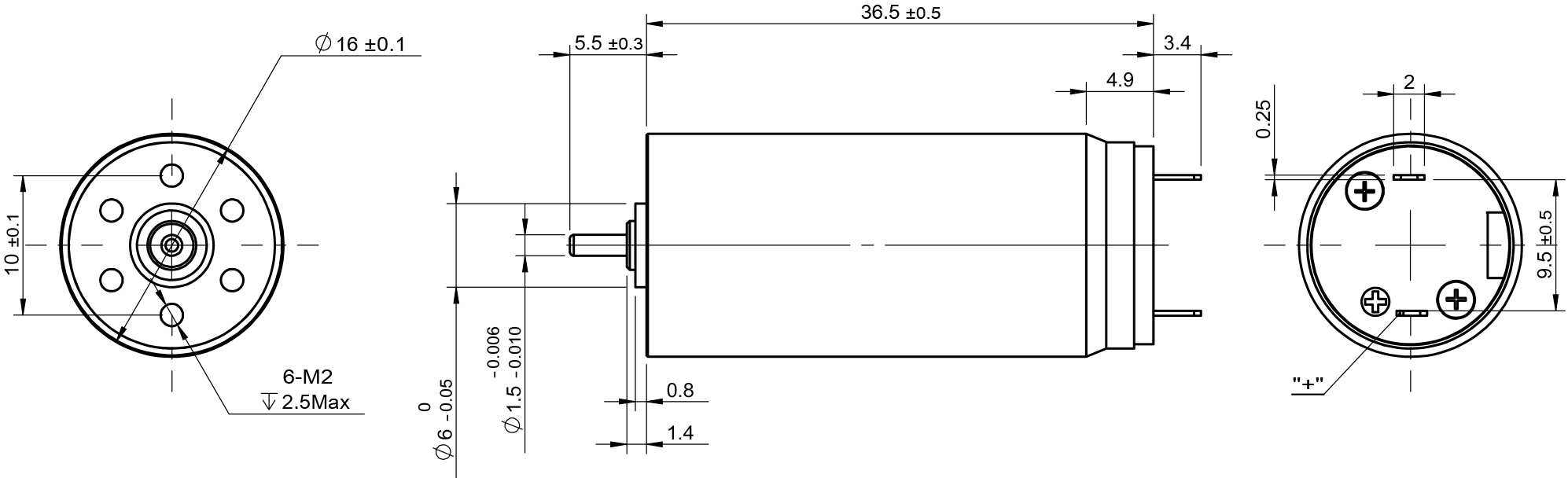

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	40-67-6.0	41-85-9.0	42-96-12.0
Voltage	V	6.0	9.0	12.0
Terminal resistance	Ω	5.6	7.9	11.5
No-load speed	rpm	6700	8500	9600
No-load current	mA	8	8	8
Stall torque	mNm	9.0	11.4	12.2
Stall current	mA	1070	1140	1040
Nominal torque	mNm	1.0	2.0	3.0
Nominal speed	rpm	5960	7000	7240
Nominal current	mA	130	210	260
Max.output power	W	1.6	2.5	3.1
Max.efficiency	%	84	84	83
Back-EMF constant	mV/rpm	0.9	1.1	1.2
Torque constant	mNm/A	8.5	10	11.8
Speed/torque gradient	rpm/mNm	700	700	800
Rotor inertia	gcm²	0.6	0.6	0.6
Weight	g	26	26	26
