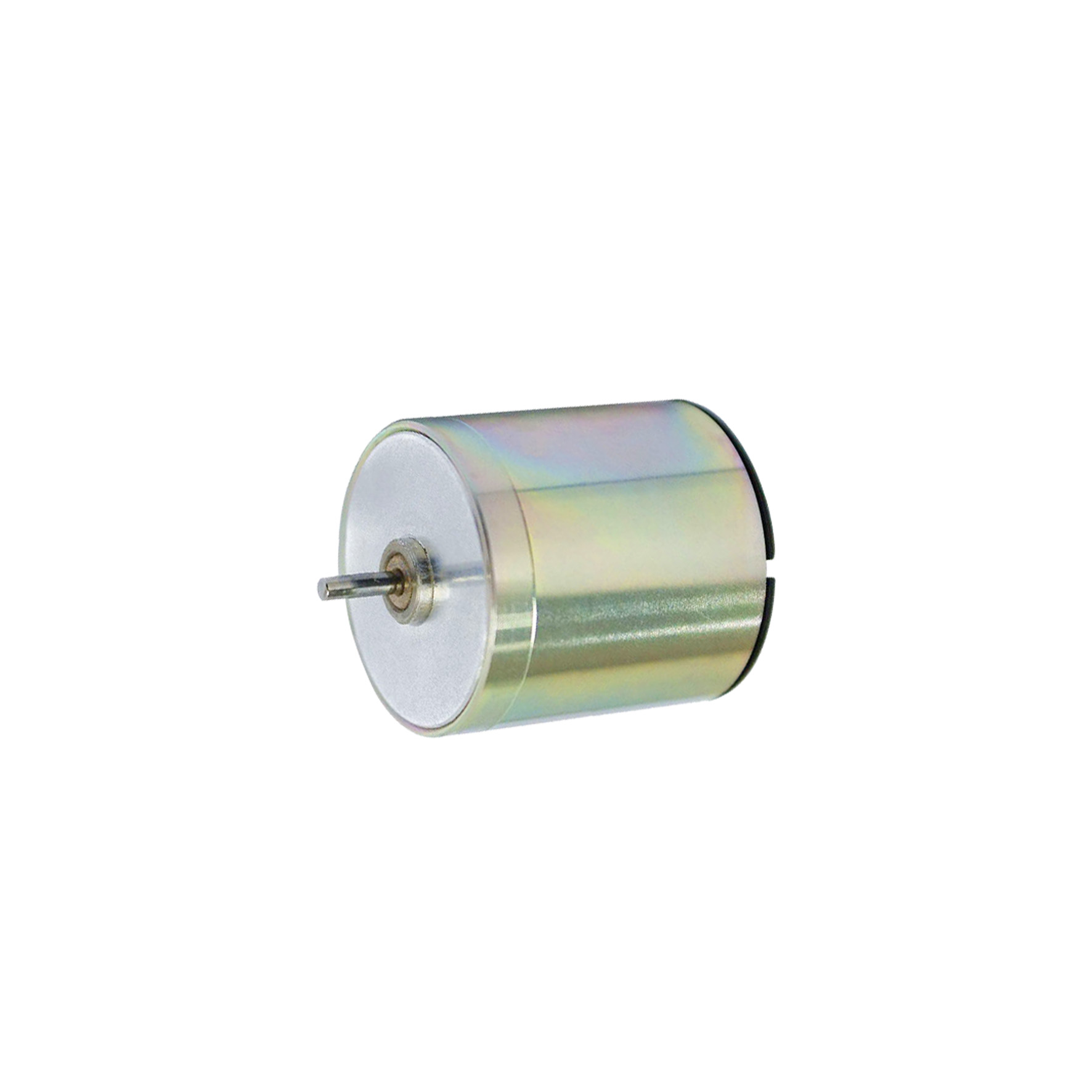

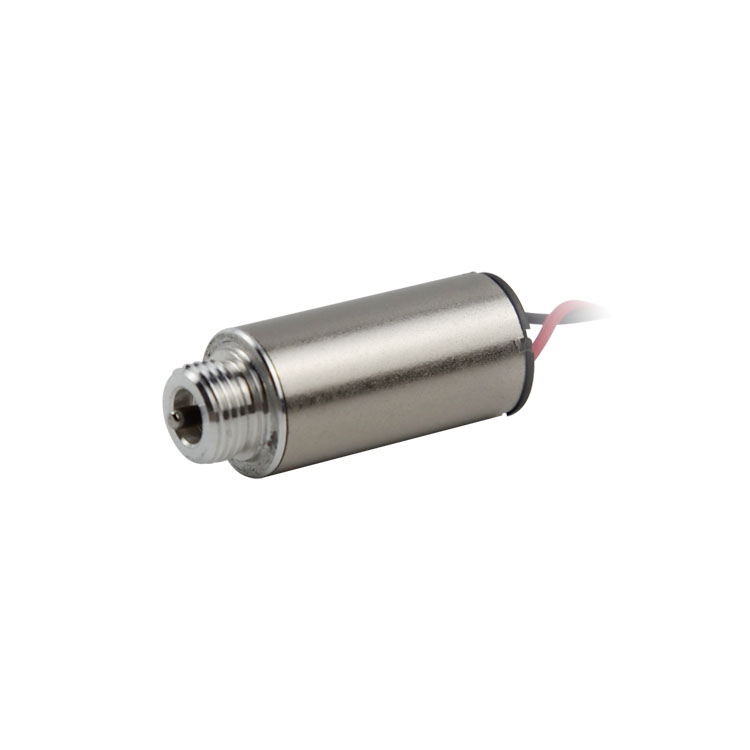

2224N5M

6~12V Precision DC Coreless Motor
Diameter: 22mm; Length:24mm; Voltage: 6~12V; Max. output power: 6.8~17.7W; Speed: 10500~15800rpm; Nominal torque: 5mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

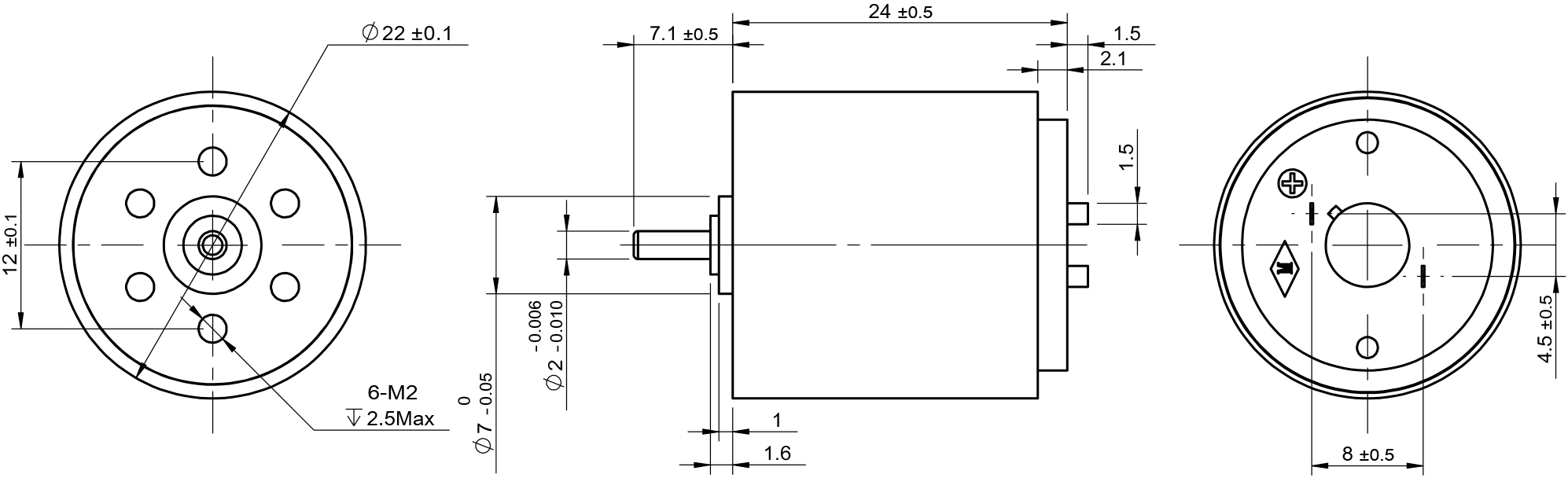

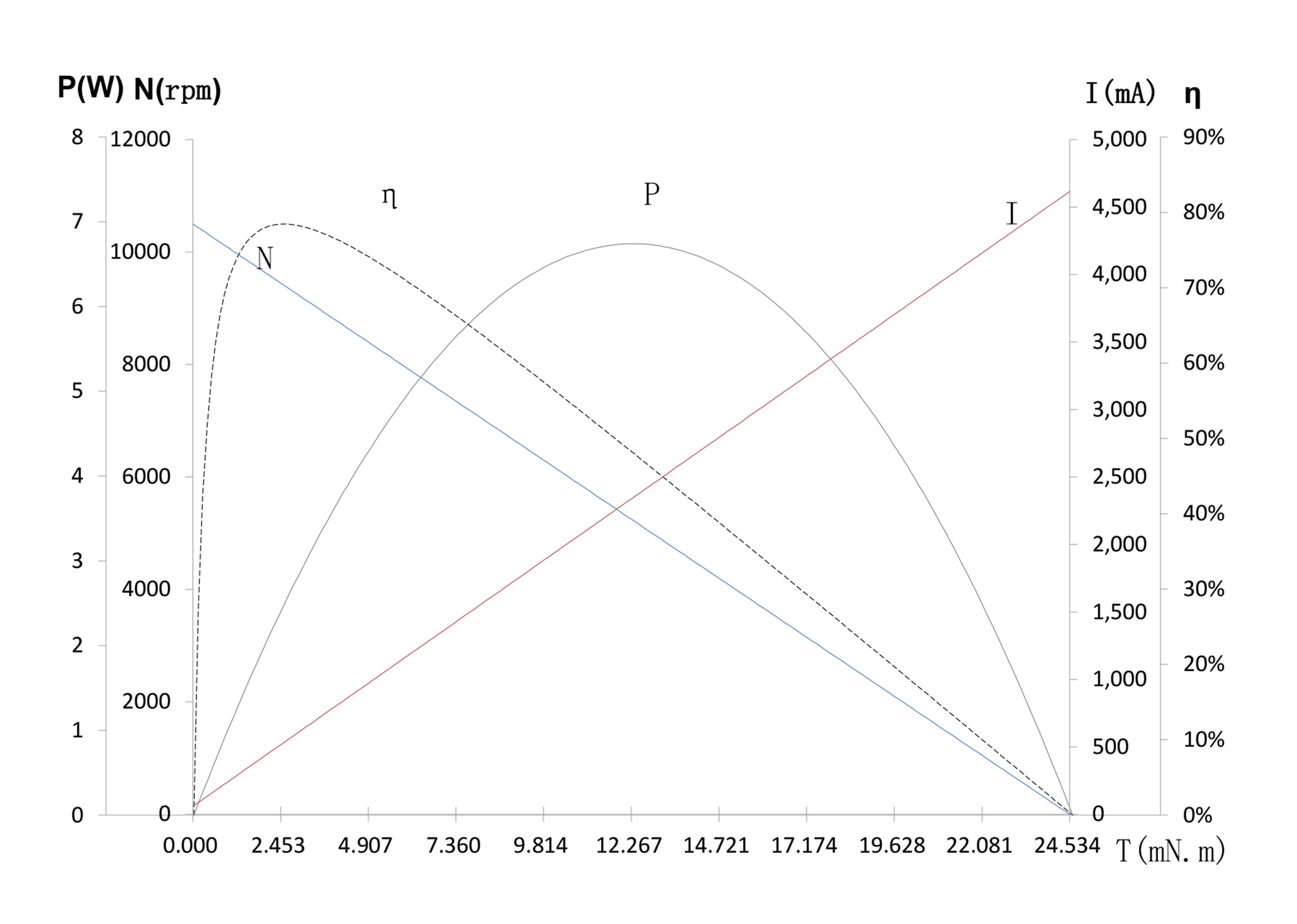

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	11-105-6.0	09-158-12.0	12-112-12.0
Voltage	V	6.0	12.0	12.0
Terminal resistance	Ω	1.3	2	5.9
No-load speed	rpm	10500	15800	11200
No-load current	mA	60	55	30
Stall torque	mNm	24.6	42.7	20.2
Stall current	mA	4620	6000	2030
Nominal torque	mNm	5	5	4
Nominal speed	rpm	8360	13950	8980
Nominal current	mA	990	750	430
Max.output power	W	6.8	17.7	5.9
Max.efficiency	%	79	82	77
Back-EMF constant	mV/rpm	0.6	0.8	1.1
Torque constant	mNm/A	5.4	7.2	10.1
Speed/torque gradient	rpm/mNm	400	400	600
Rotor inertia	gcm²	2.4	2.4	2.4
Weight	g	40	40	40
