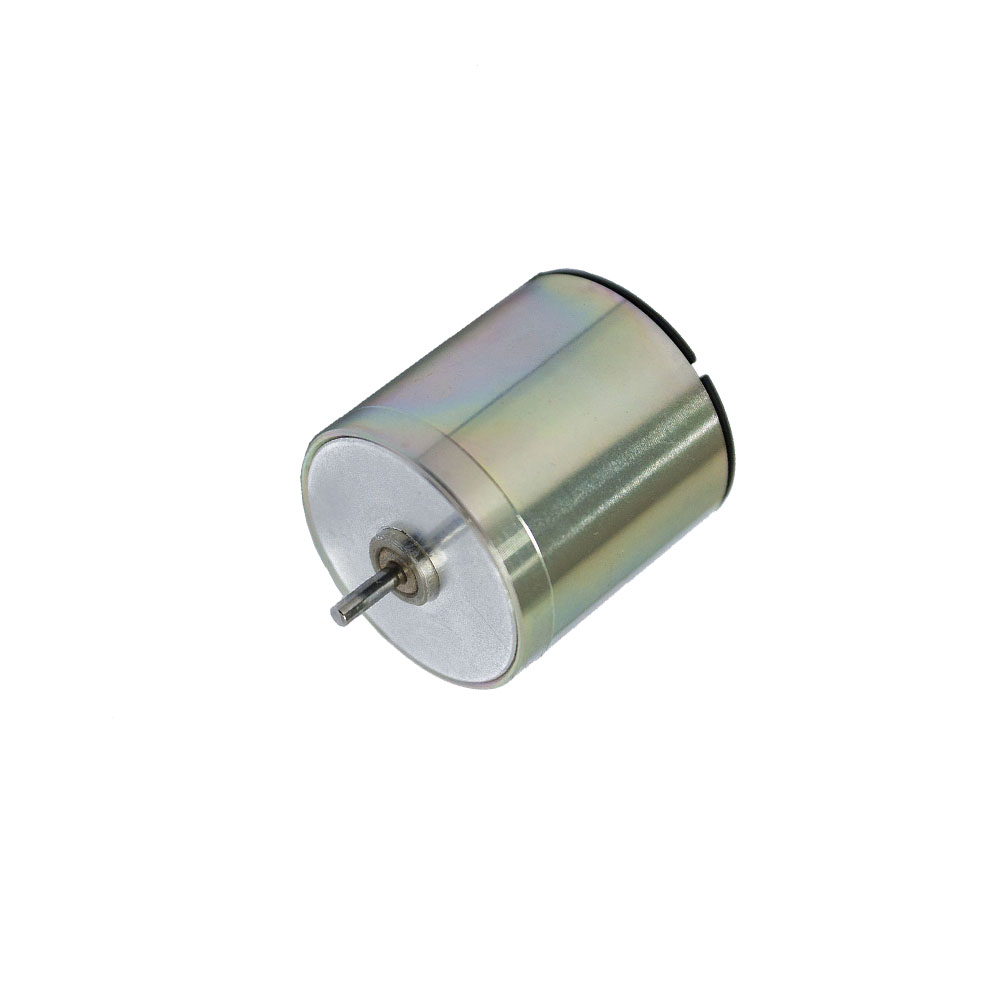

2224N5M2B

6~18V Precision DC Coreless Motor
Diameter: 22mm; Length:24mm; Voltage: 6~18V; Max. output power: 1.3~5.2W; Speed: 6400~8300rpm; Nominal torque: 1.5~5mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

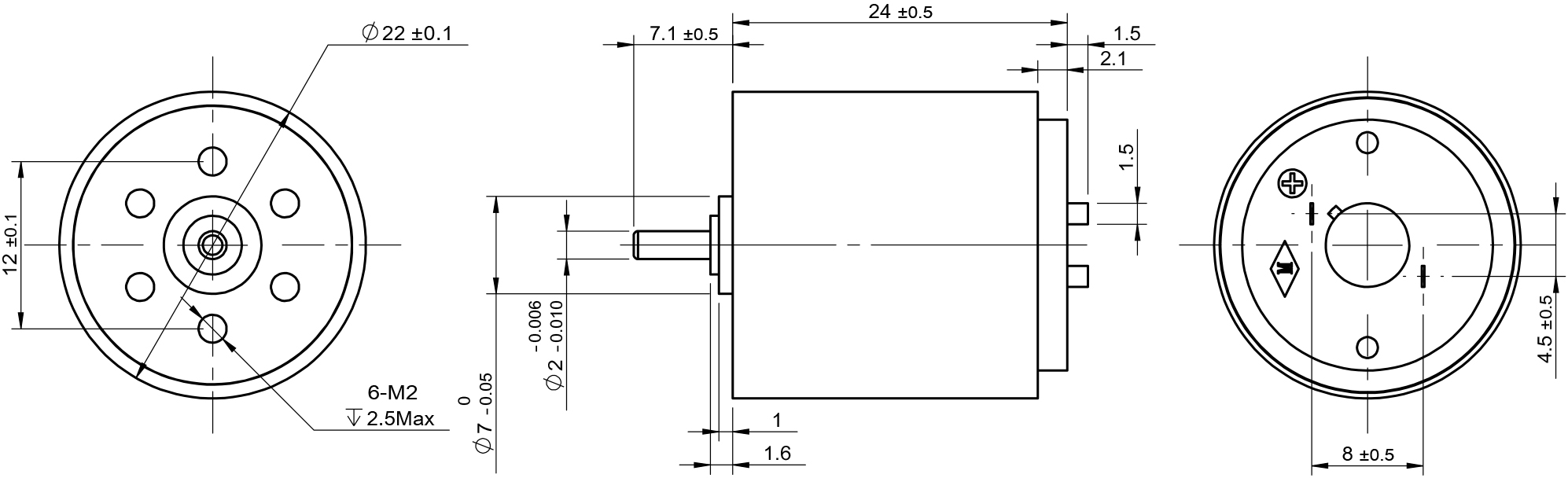

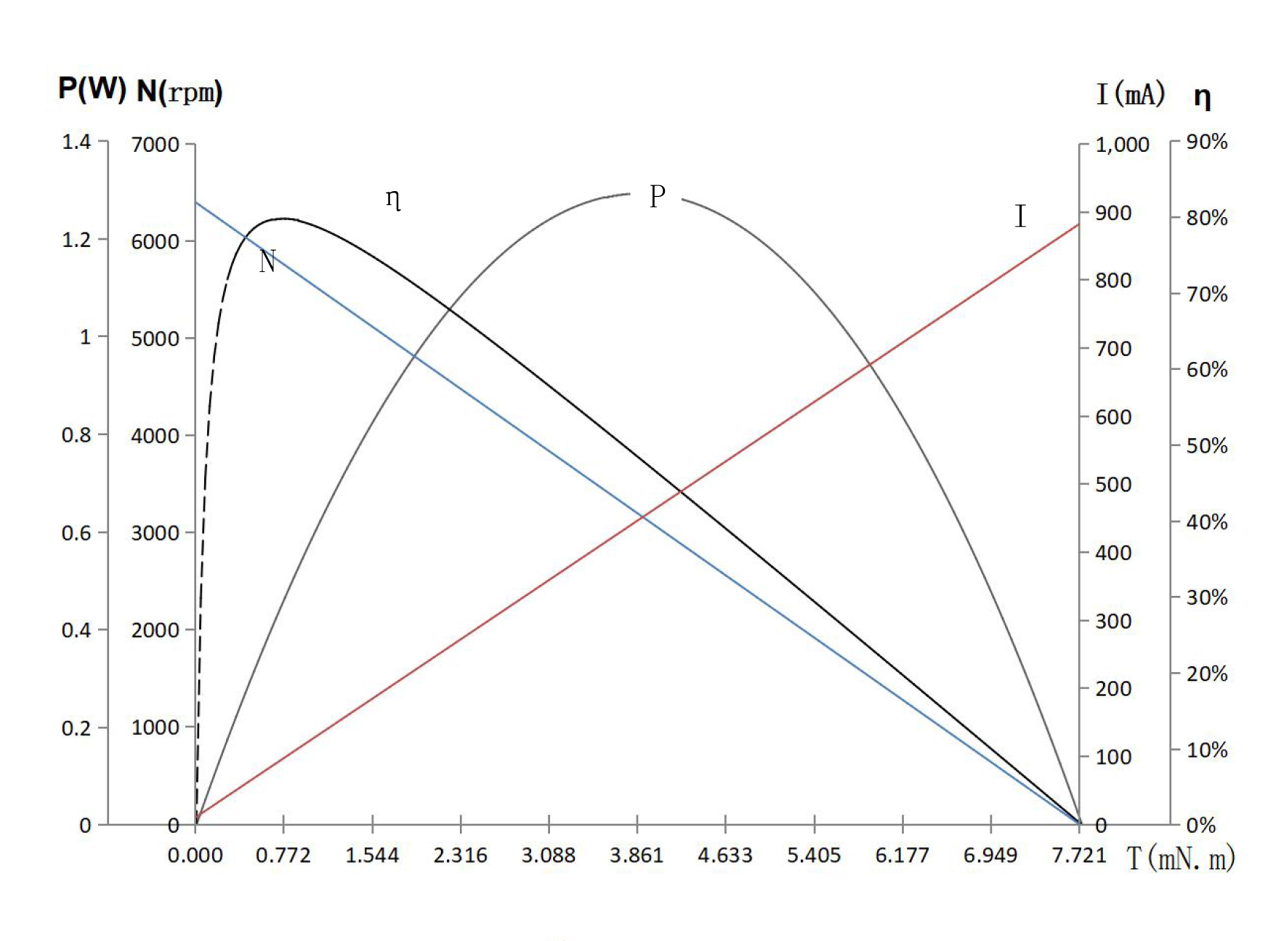

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	16-64-6.0	18-83-12.0	19-82-18.0
Voltage	V	6.0	12.0	18.0
Terminal resistance	Ω	6.8	6.8	19.6
No-load speed	rpm	6400	8300	8200
No-load current	mA	10	15	10
Stall torque	mNm	7.7	23.9	18.9
Stall current	mA	880	1760	920
Nominal torque	mNm	1.5	5.0	4.0
Nominal speed	rpm	5150	6560	6460
Nominal current	mA	180	380	200
Max.output power	W	1.3	5.2	4.1
Max.efficiency	%	80	82	80
Back-EMF constant	mV/rpm	0.9	1.4	2.2
Torque constant	mNm/A	8.9	13.7	20.7
Speed/torque gradient	rpm/mNm	800	300	400
Rotor inertia	gcm²	2.4	2.4	2.4
Weight	g	40	40	40
