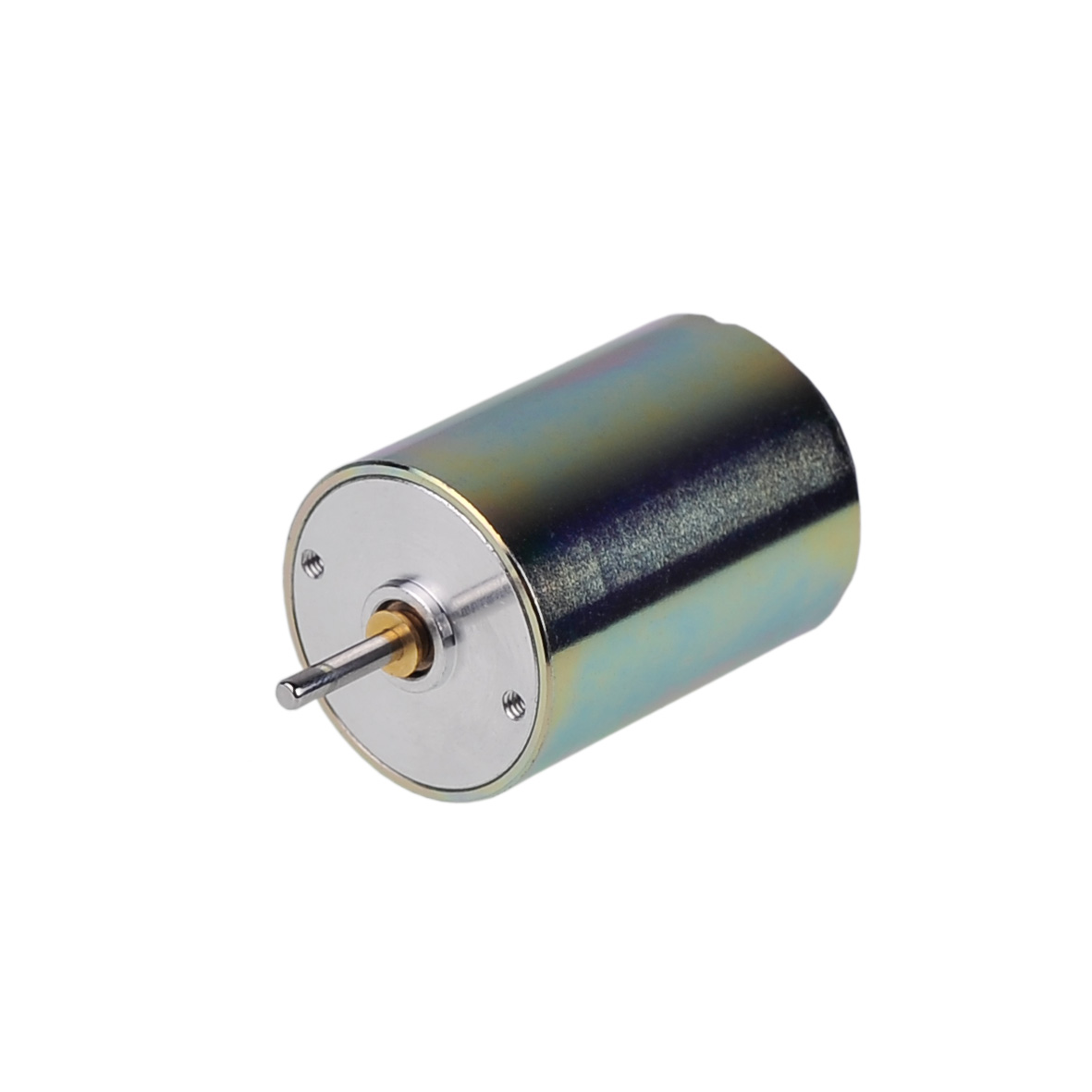

2232N5M

6~12V Precision DC Coreless Motor
Diameter: 22mm; Length:31.6mm; Voltage: 6~12V; Max. output power: 2~8.3W; Speed: 5400~7900rpm; Nominal torque: 4~6mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

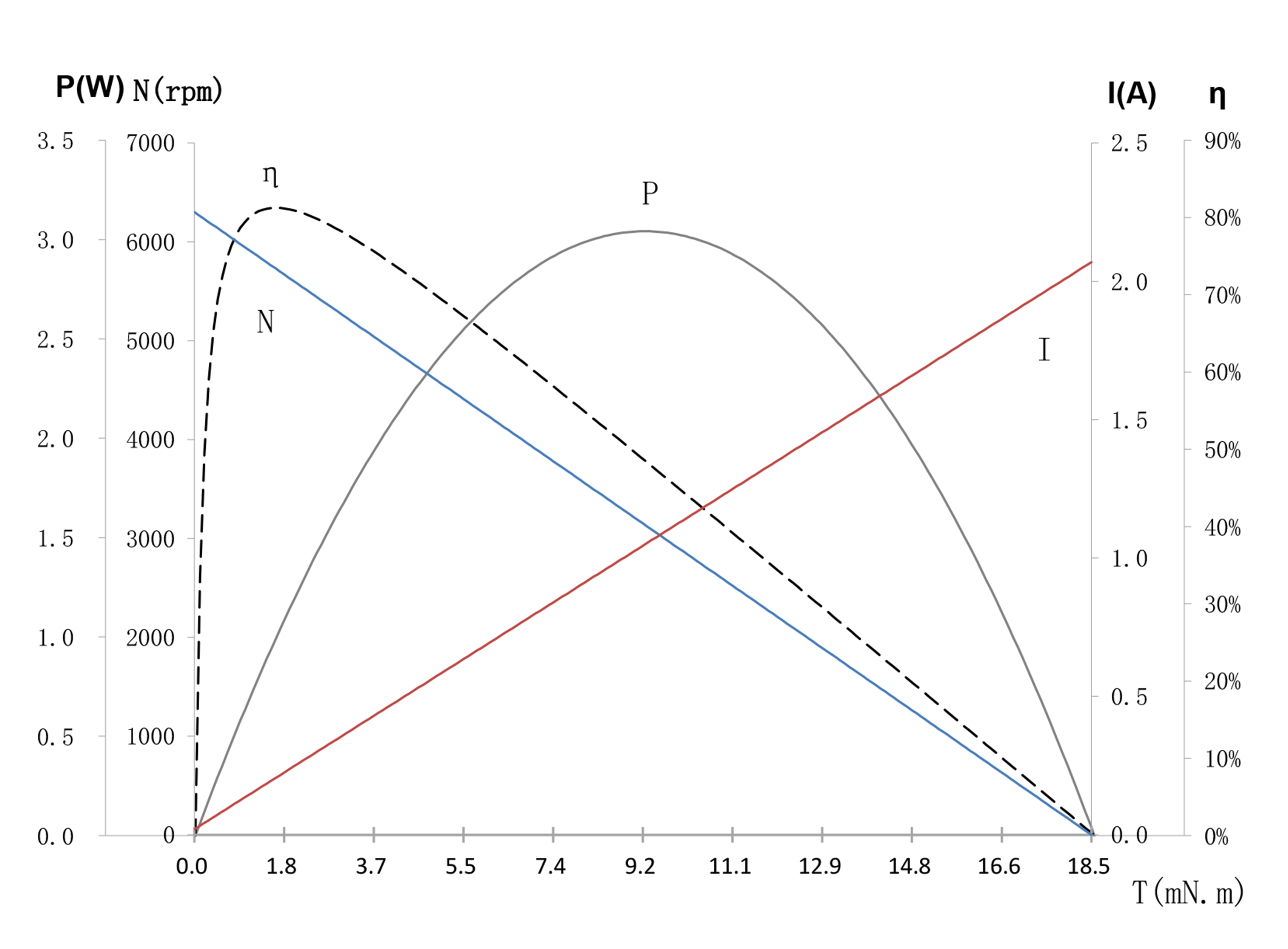

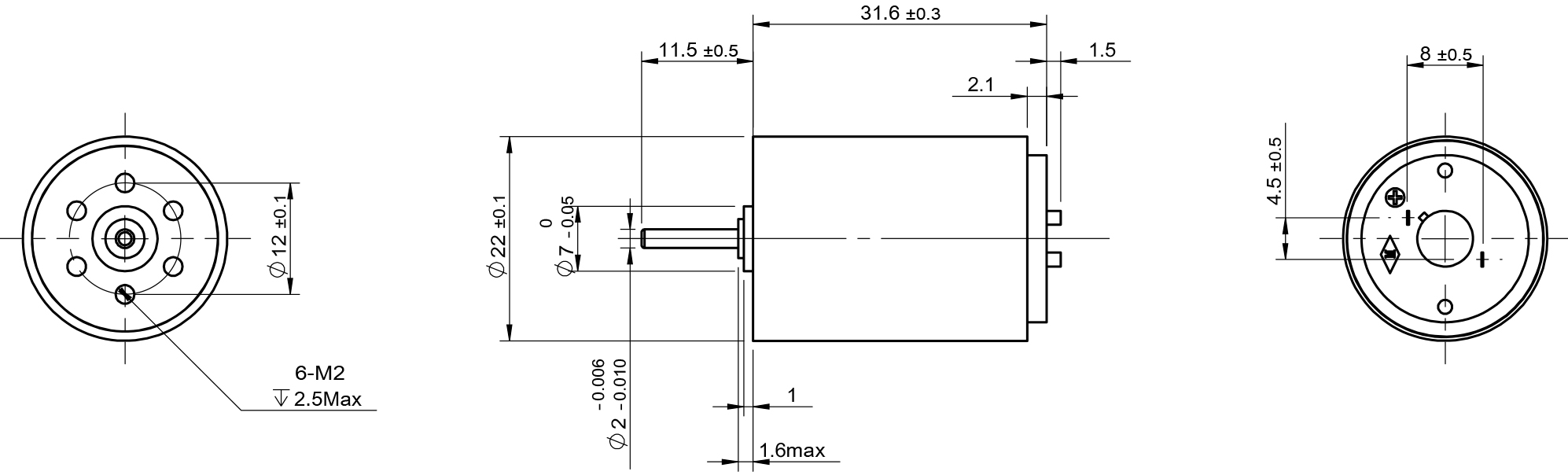

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	08-63-6.0	13-79-9.0	05-54-12.0
Voltage	V	6.0	9.0	12.0
Terminal resistance	Ω	2.9	2.4	17.5
No-load speed	rpm	6300	7900	5400
No-load current	mA	20	25	15
Stall torque	mNm	18.5	40.3	14.0
Stall current	mA	2070	3750	690
Nominal torque	mNm	4.0	6.0	4.0
Nominal speed	rpm	4940	6720	3860
Nominal current	mA	460	580	210
Max.output power	W	3.0	8.3	2.0
Max.efficiency	%	81	84	73
Back-EMF constant	mV/rpm	0.9	1.1	2.2
Torque constant	mNm/A	9.0	10.8	20.8
Speed/torque gradient	rpm/mNm	300	200	400
Rotor inertia	gcm²	4.4	4.4	4.4
Weight	g	55	55	55
