2232N9M2B

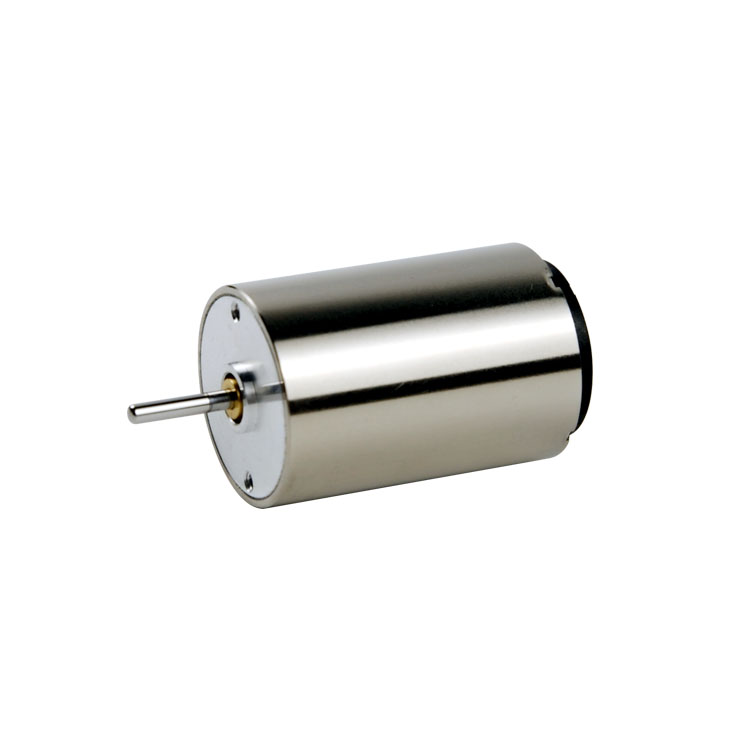

6~12V Precision DC Coreless Motor
Diameter: 22mm; Length:31.6mm; Voltage: 6~12V; Max. output power: 3.6~8.1W; Speed: 7400~11000rpm; Nominal torque: 5~7mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

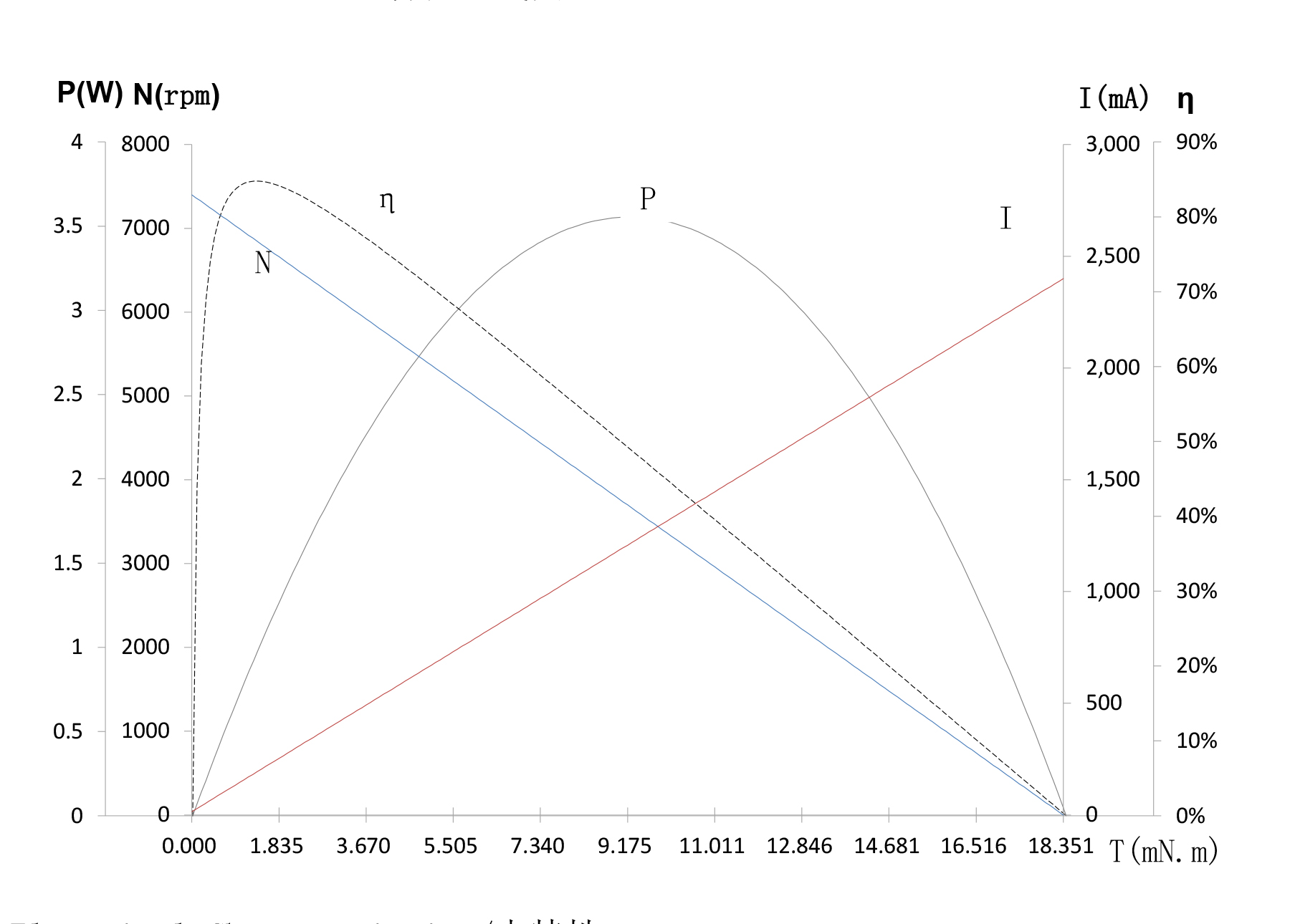

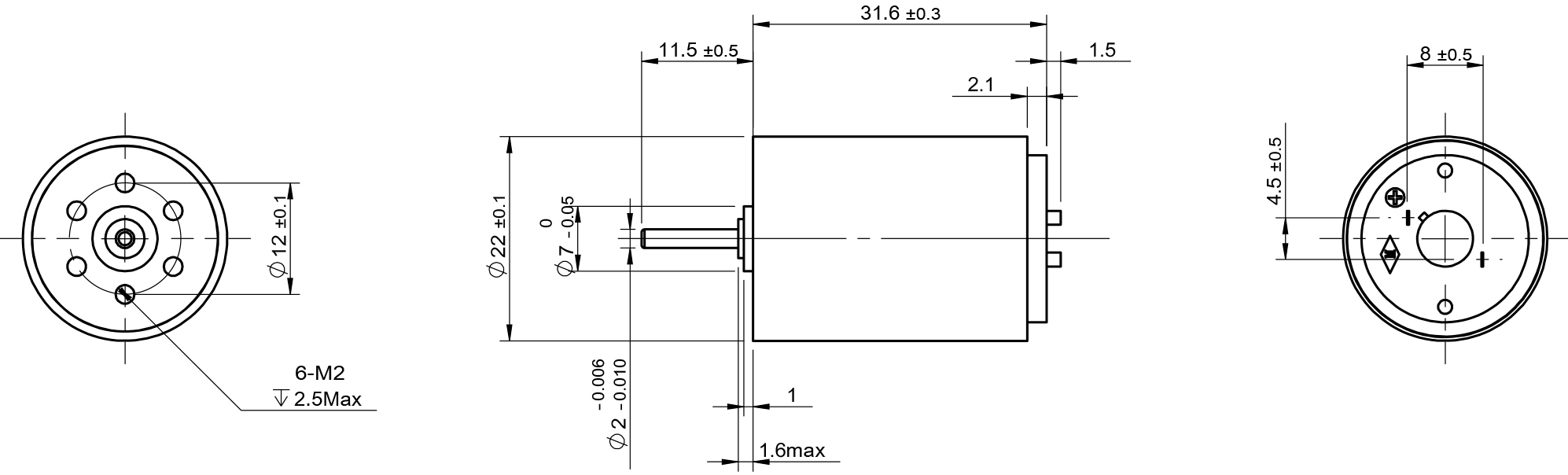

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	04-74-6.0	05-99-9.0	04-110-12.0
Voltage	V	6.0	9.0	12.0
Terminal resistance	Ω	2.5	2.9	4.4
No-load speed	rpm	7400	9900	11000
No-load current	mA	15	20	20
Stall torque	mNm	18.4	26.6	28.0
Stall current	mA	2400	3100	2730
Nominal torque	mNm	5.0	6.0	7.0
Nominal speed	rpm	5380	7660	8250
Nominal current	mA	660	720	700
Max.output power	W	3.6	6.9	8.1
Max.efficiency	%	85	85	84
Back-EMF constant	mV/rpm	0.8	0.9	1.1
Torque constant	mNm/A	7.7	8.6	10.3
Speed/torque gradient	rpm/mNm	400	400	400
Rotor inertia	gcm²	4.4	4.4	4.4
Weight	g	55	55	55
