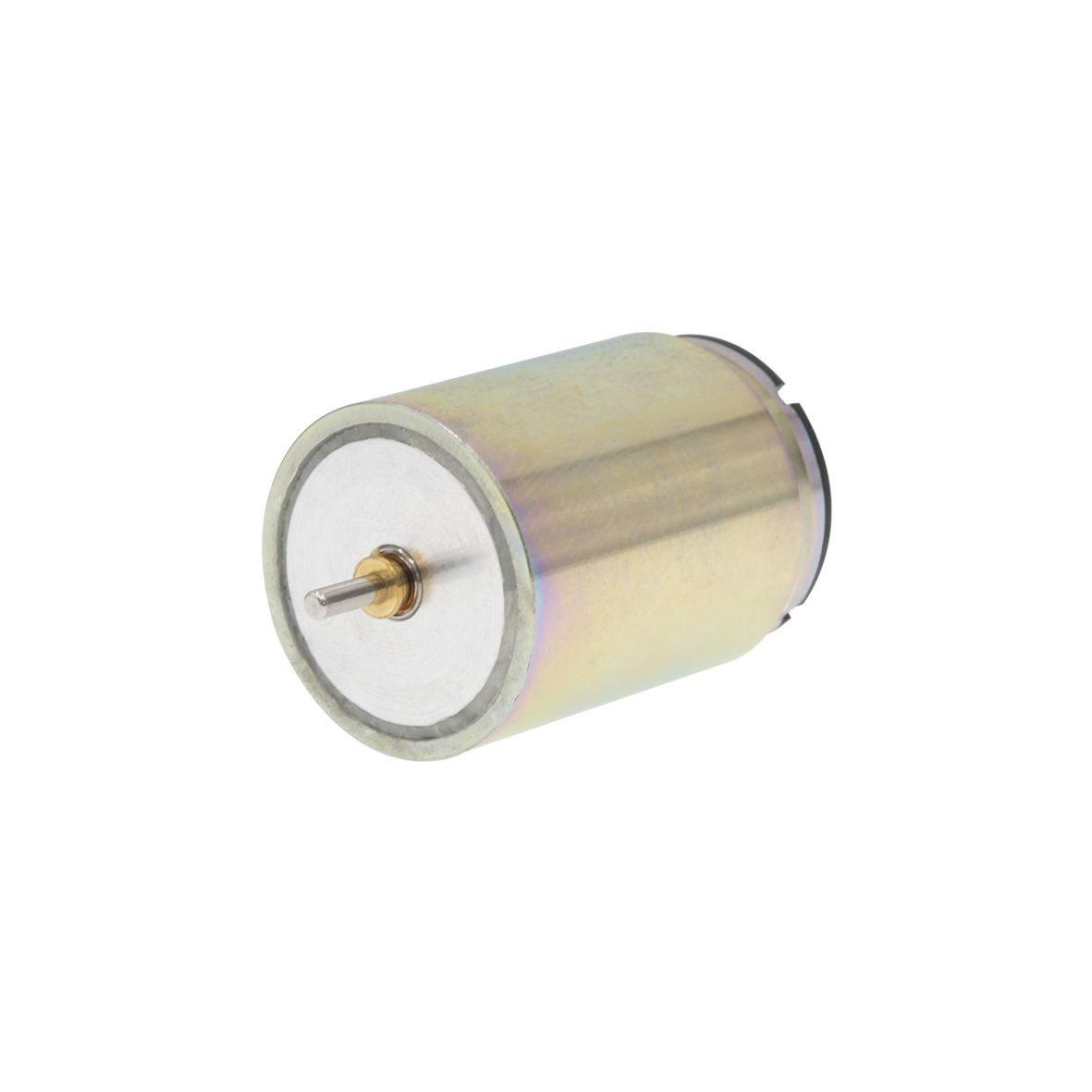

2433N5M2B

4.5~12V Precision DC Coreless Motor
Diameter: 24mm; Length:32.8mm; Voltage: 4.5~12V; Max. output power: 9.2~11.8W; Speed: 7600~8100rpm; Nominal torque: 10mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

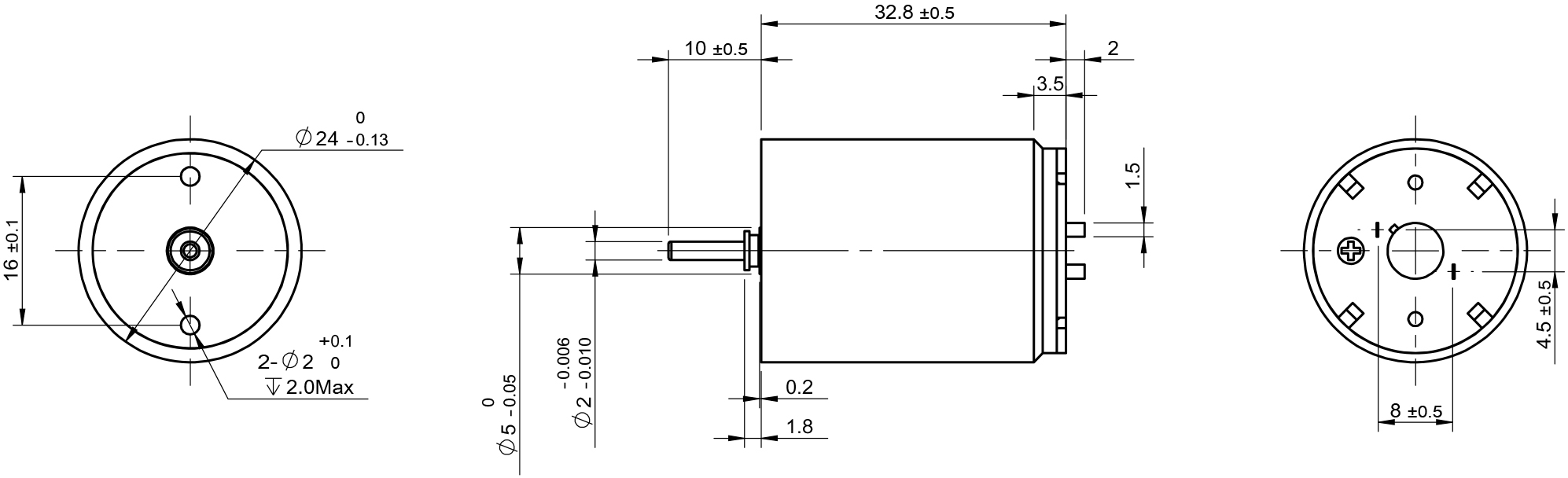

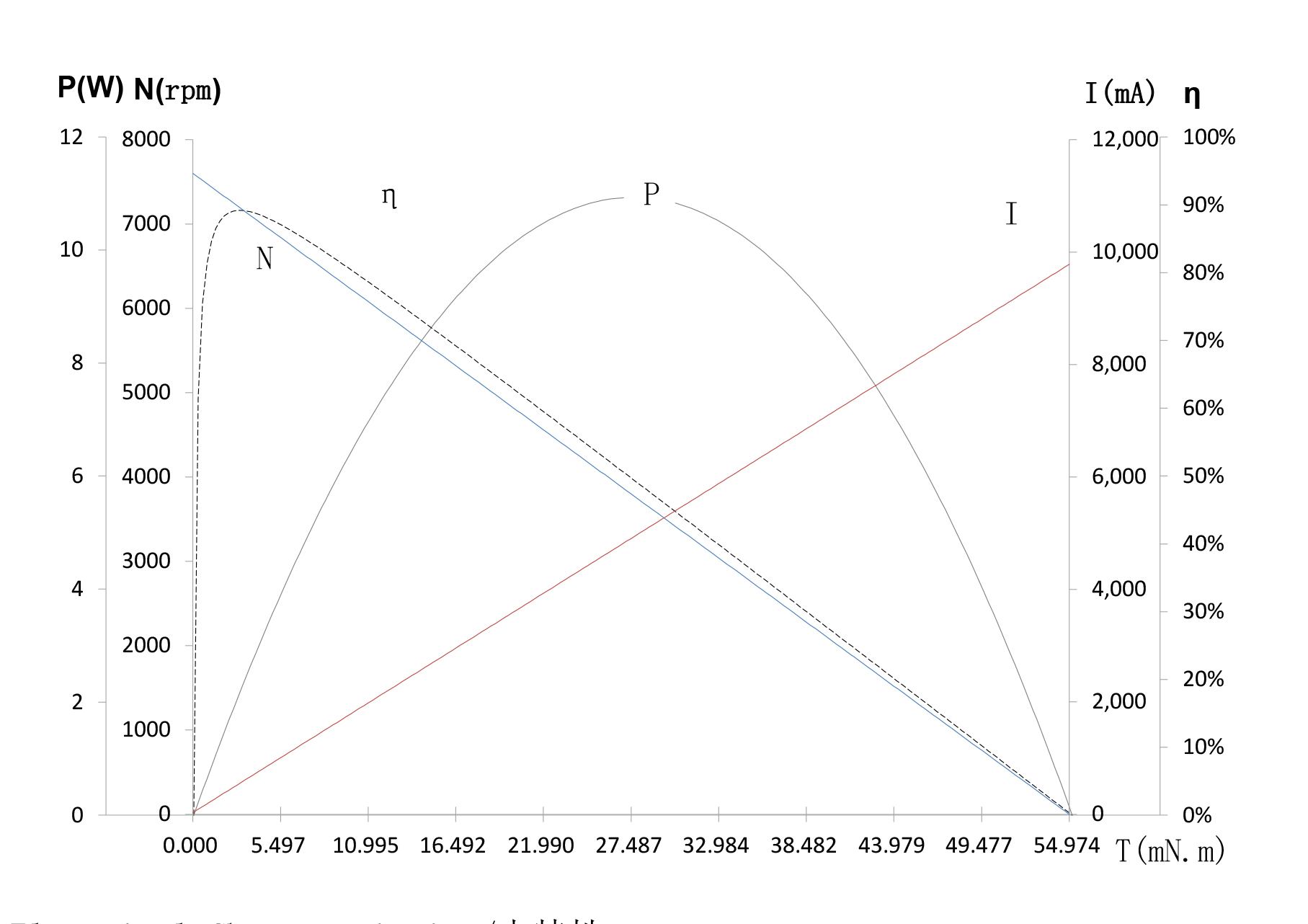

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	01-76-4.5	02-79-9.0	04-81-12.0
Voltage	V	4.5	9.0	12.0
Terminal resistance	Ω	0.46	1.7	3.9
No-load speed	rpm	7600	7900	8100
No-load current	mA	30	15	15
Stall torque	mNm	55.0	57.2	43.1
Stall current	mA	9780	5290	3080
Nominal torque	mNm	10.0	10.0	10.0
Nominal speed	rpm	6220	6520	6220
Nominal current	mA	1800	940	730
Max.output power	W	10.9	11.8	9.2
Max.efficiency	%	89	90	87
Back-EMF constant	mV/rpm	0.6	1.1	1.5
Torque constant	mNm/A	5.6	10.8	14.1
Speed/torque gradient	rpm/mNm	140	140	190
Rotor inertia	gcm²	2.2	2.2	2.2
Weight	g	66	66	66
