Planetary Gear Motor

32**...32*P...

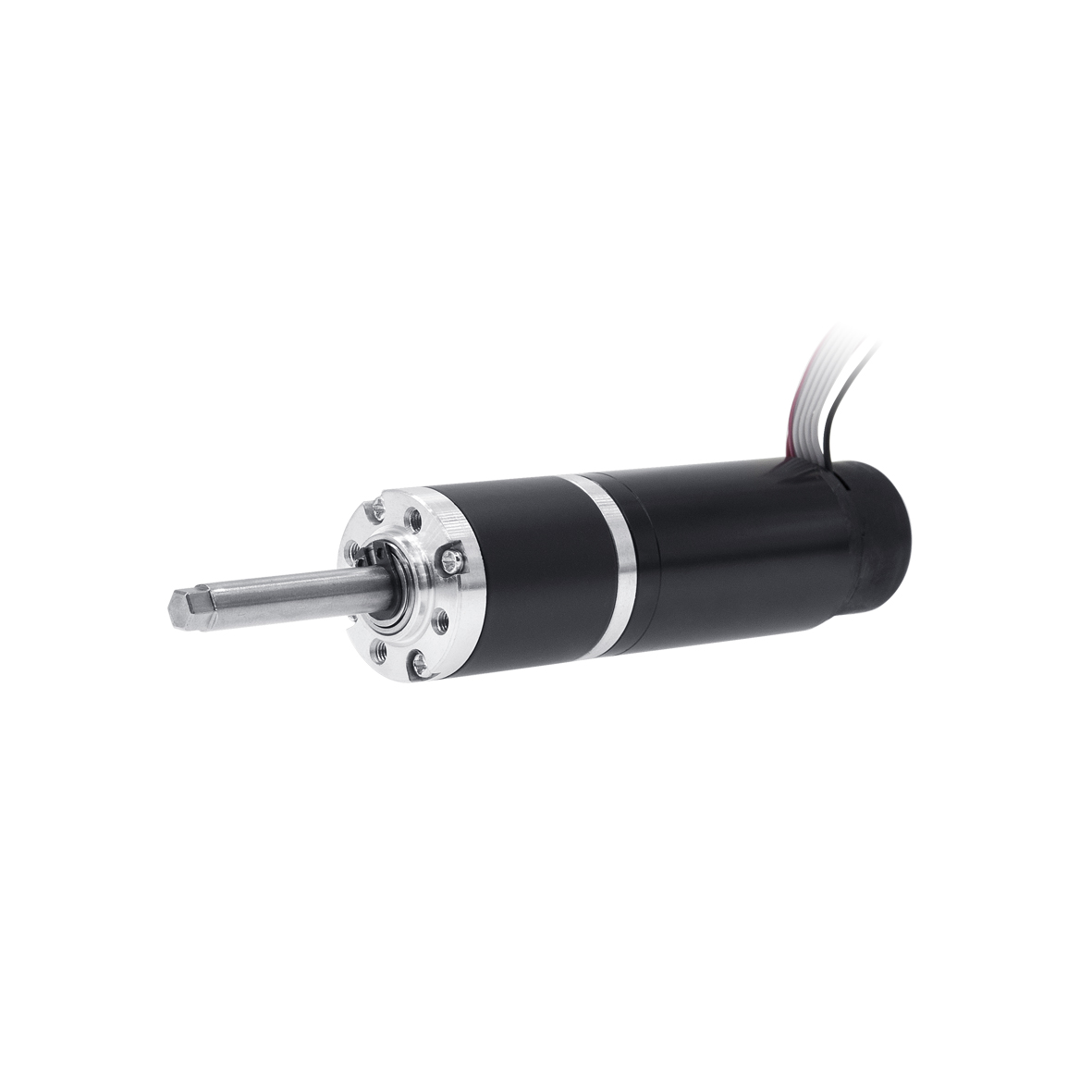

32mm planetary gear reduction motor

Diameter: 32mm; Length: 93~113mm; Voltage: 12v, 24v; Reduction ratio: 16~1076;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

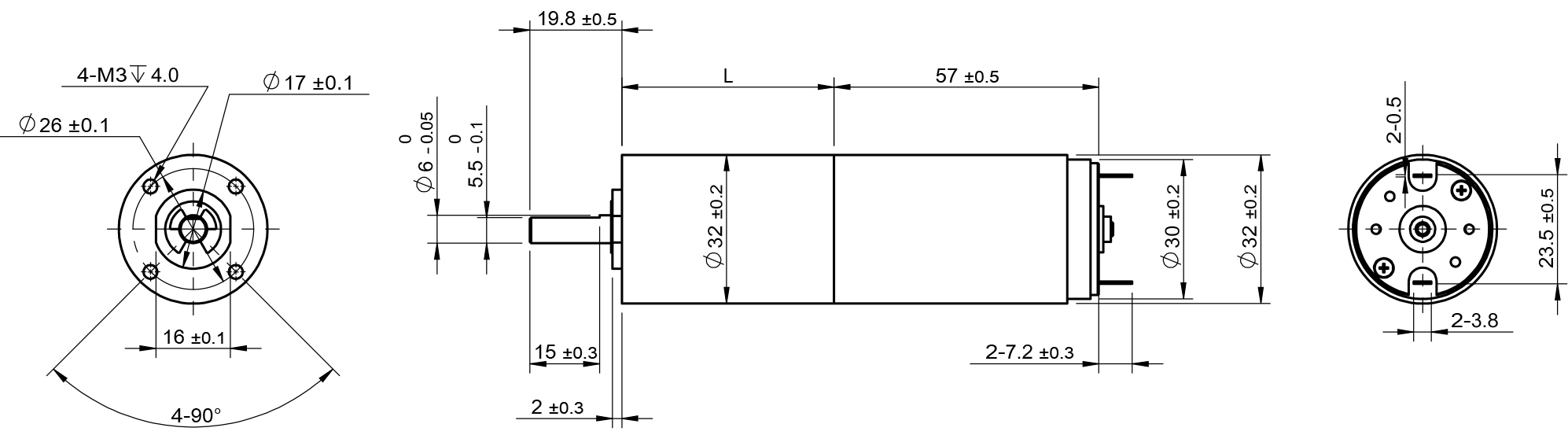

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 3257N9C2B01-54-12.0 3257N9C2B02-64-24.0 3257N9C2B08-74-24.0
Voltage V 12.0 24.0 24.0
Terminal resistance Ω 1 2.8 2.4
No-load speed rpm 5600 6400 7400
No-load current mA 240 70 100
Stall torque mNm 235.8 301.9 303.5
Stall current mA 12000 8570 10000
Nominal torque mNm 30.0 50 50
Nominal speed rpm 4890 5340 6180
Nominal current mA 1740 1480 1730
Max.output power W 34.6 50.6 58.9
Max.efficiency % 74 83 81
Back-EMF constant mV/rpm 2.1 3.7 3.2
Torque constant mNm/A 20.1 35.5 30.7
Speed/torque gradient rpm/mNm 23.7 21.2 24.4
Rotor inertia gcm2 42 42 42
Weight g 230 230 230
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 　 16~33 67~188 272~1076 　 　
Max. rated torque mNm 　 400 800 1200 　 　
Max. momentary torque mNm 　 1200 2400 3600 　 　
Length（L） mm 　 35.7 45.7 55.7 　 　
Shell material Metal
Gear processing technology Plastic injection
