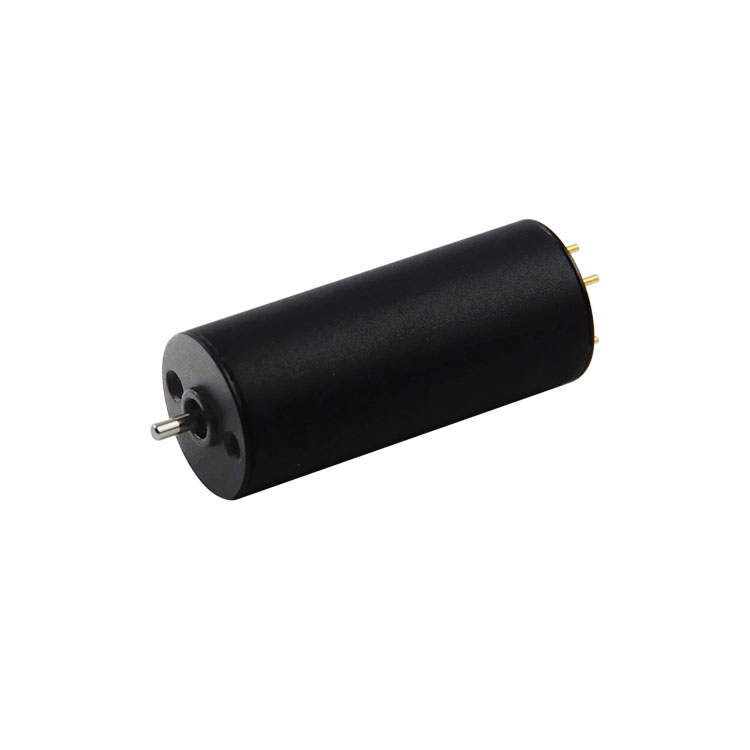

B1023NH2B

10mm brushless motor with sensor
Diameter: 9.8mm; Length: 23mm; Voltage: 6V, 7.4V, 15V; Max output power: 1.2 - 8.7W; Speed: 14600 - 38200 rpm; Rated torque: 0.7 - 1.7 mNm.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver

Ask for datasheet

Customized Assessment

Ask for a quotation

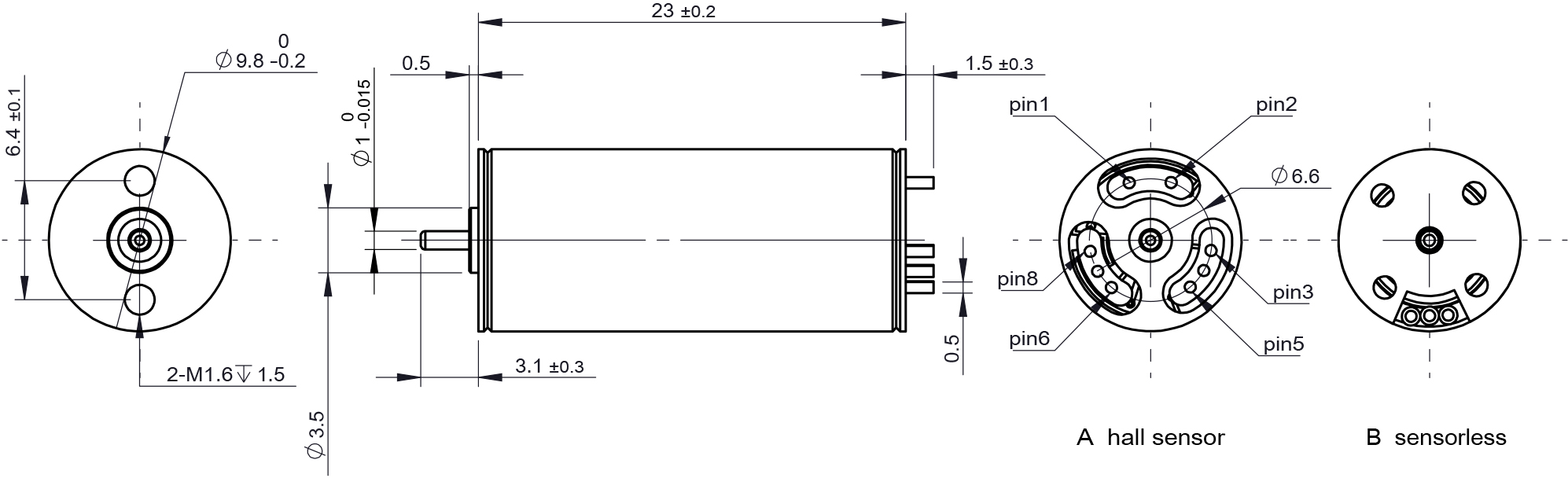

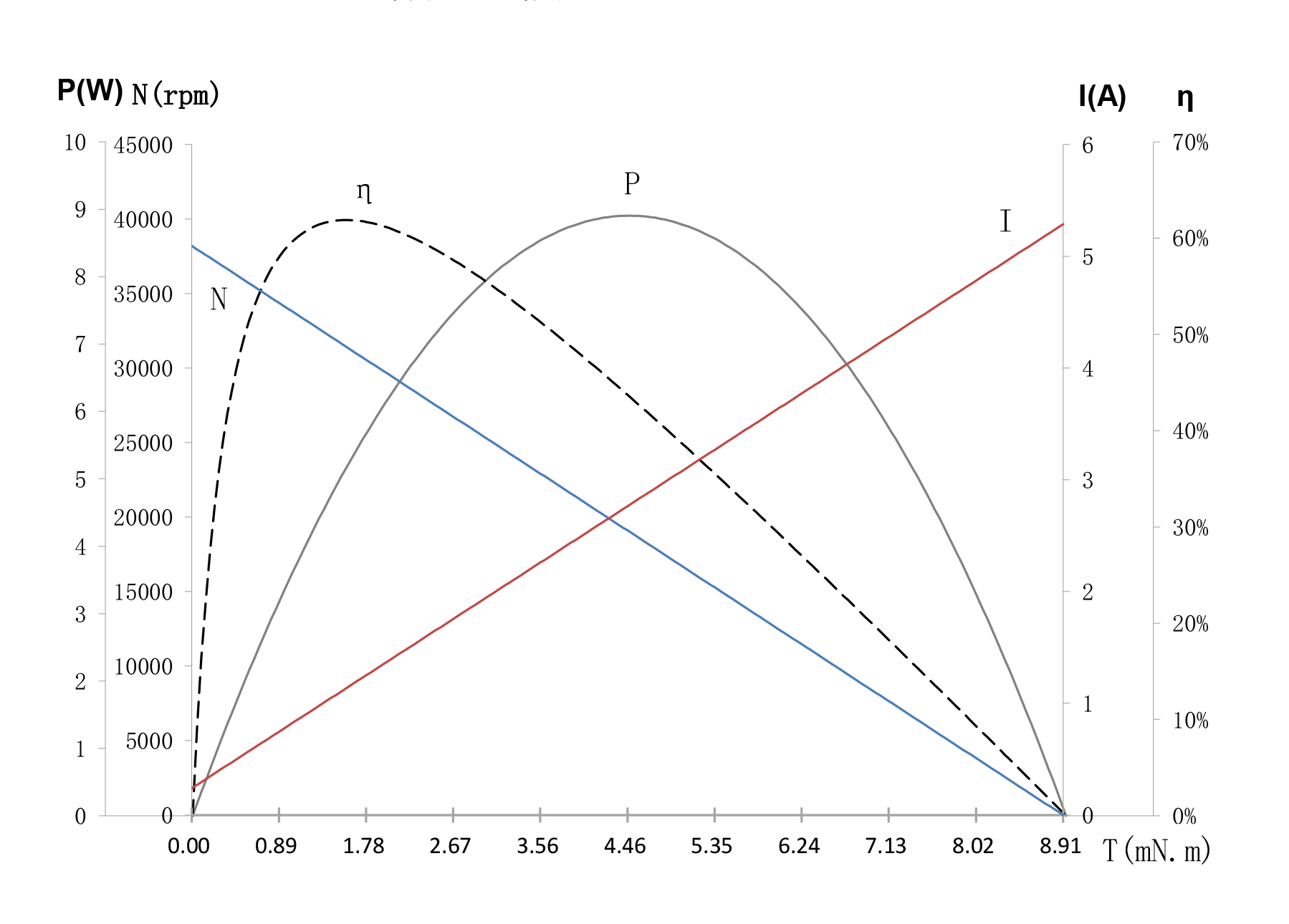

Parameter Outline Drawing Characteristic Curve Download

	UNIT	05-382-7.4	08-146-6.0	09-315-15.0
Voltage	V	7.4	6.0	15.0
Terminal resistance	Ω	1.4	6.5	9
No-load speed	rpm	38200	14600	31500
No-load current	A	240	40	80
Stall torque	mNm	8.8	3.3	6.8
Stall current	mA	5300	950	1700
Nominal torque	mNm	1.7	0.7	1.0
Nominal speed	rpm	30750	11500	27000
Nominal current	A	1270	220	310
Max.output power	W	8.7	1.2	5.6
Max.efficiency	%	61	60	60
Back-EMF constant	mV/rpm	0.18	0.39	0.45
Torque constant	mNm/A	1.76	3.8	4.3
KV Value	rpm/V	5160	2430	2100
Speed/torque gradient	rpm/mNm	4340	4420	4630
Rotor inertia	gcm2	0.06	0.06	0.06
Weight	g	8.3	8.3	8.3
