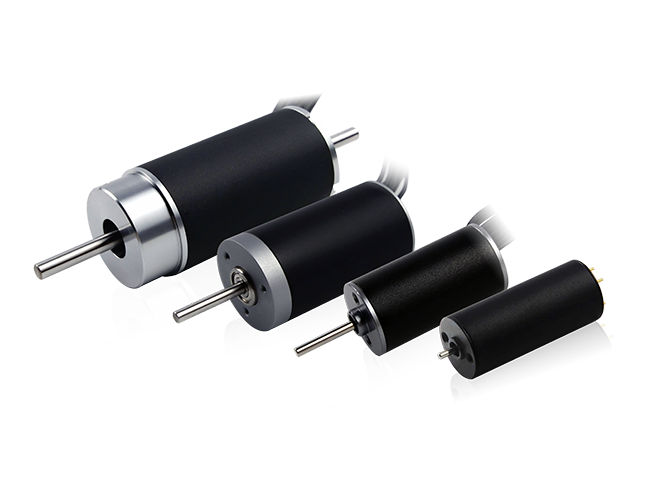

Brushless-Slotless Inner Rotor Motor

High reliability, high rotational speed, compact size, strong overload capacity, minimal electromagnetic interference, low noise, and excellent speed regulation performance.

Application Fields: Precision drive systems for medical devices, industrial equipment, and related applications.

Model	Specification(MM)	Voltage (V)	No-load current(mA)	No-load speed (RPM)	Nominal torque（mNm）	Max.output power（W）
B0815N2B	φ8*15	5.0	60	20000	0.73	0.38
B0832NH	φ08*32	6.0	270	32000	1.3	6.3
B1020N	φ10*20	7.4	320	39300	2.6	11.3
B1023NH2B	φ9.8*23	7.4	240	38200	1.7	8.7
B1215NH2B	φ12*15	3.6	300	35000	0.7	4.3
B1220N2B	φ12*20	7.4	100	23000	1.3	3.3
B1230N2B	φ12*30	3.7	230	18000	3	5.9
B1231NH2B	φ12*30.8	12	150	20000	1.1	10
B1635N2B	φ16*35.7	12	350	45000	1.5	100
B2040N2B	φ20*40	12	250	15000	7.6	31
B2050NH2B	φ20*49.8	24	80	8300	7	8
B4040NH2B	φ40*40.3	24	200	42000	5	69.7
