C16**...13MS...

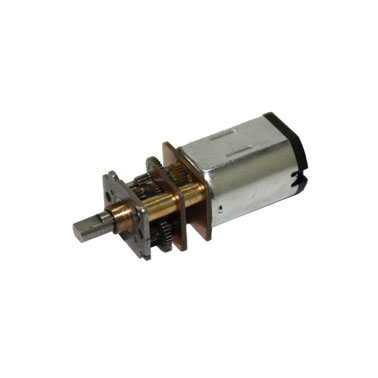

Precision Gearmotor
Diameter: 16mm; Length: 31~39mm; Voltage: 6V; Gearbox: Metal / Metal CNC; Matched motor type: Core motor.

Applications: medical equipment, scientific instruments, industrial equipment, etc.
Options: Lead wires length, Shaft length, Special coils, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

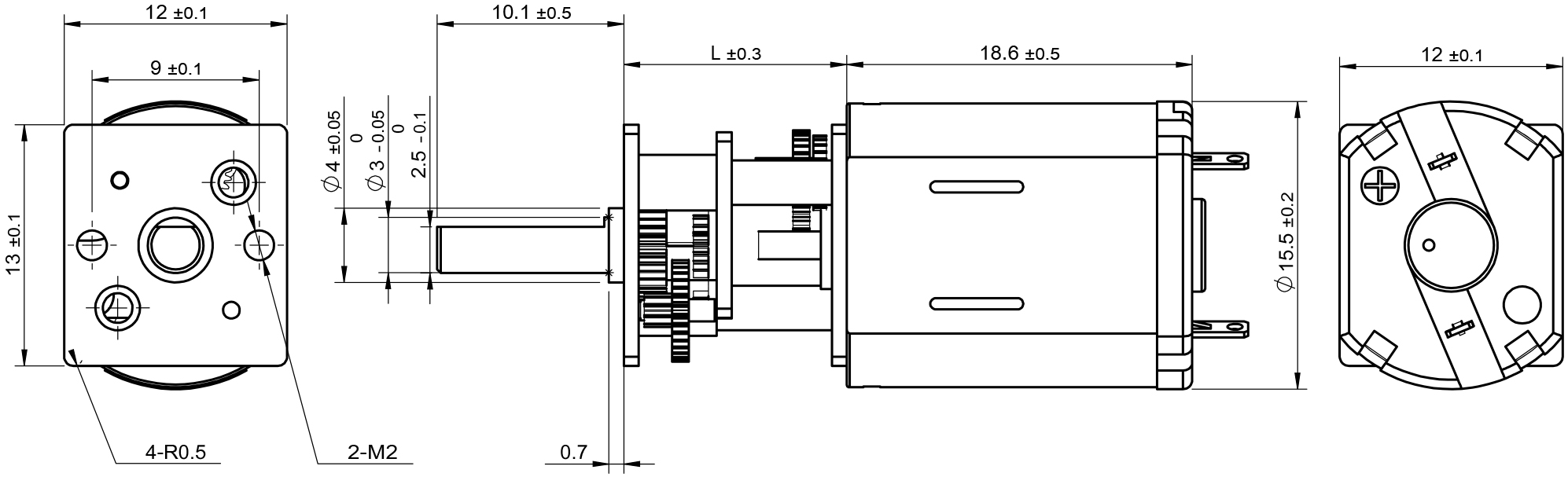

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	C1215F33-0128		C1215F13-0462
Voltage	V	6.0		6.0
Terminal resistance	Ω	8.8		10.3
No-load speed	rpm	8600		11700
No-load current	mA	55		51
Stall torque	mNm	3.75		2.36
Stall current	mA	652		580
Nominal torque	mNm	0.79		2.1
Nominal speed	rpm	6800		1305
Nominal current	mA	180		520
Max. output power	W	0.85		0.73
Max. efficiency	%	51.9		50
Back-EMF constant	mV/rpm	0.64		0.47
Torque constant	mNm/A	6.28		4.47
Speed/torque gradient	rpm/mNm	2293		4950
Rotor inertia	gcm²	0.5		0.5
Weight	g	16.7		11
Gearbox
Number of stages		2	4	4	4	5	5	5
Reduction ratio		3,7,10	16,17,20,30,35	50,63	70,86	115,150	210,250	360
Max. rated torque	mNm	20	30	40	50	60	70	80
Max. momentary torque	mNm	60	90	120	150	180	210	240
Length（L）	mm	11	11	11	11	11	11	12
Shell material		Metal
Gear processing technology		Metal CNC
