C1020...10PP...（2）

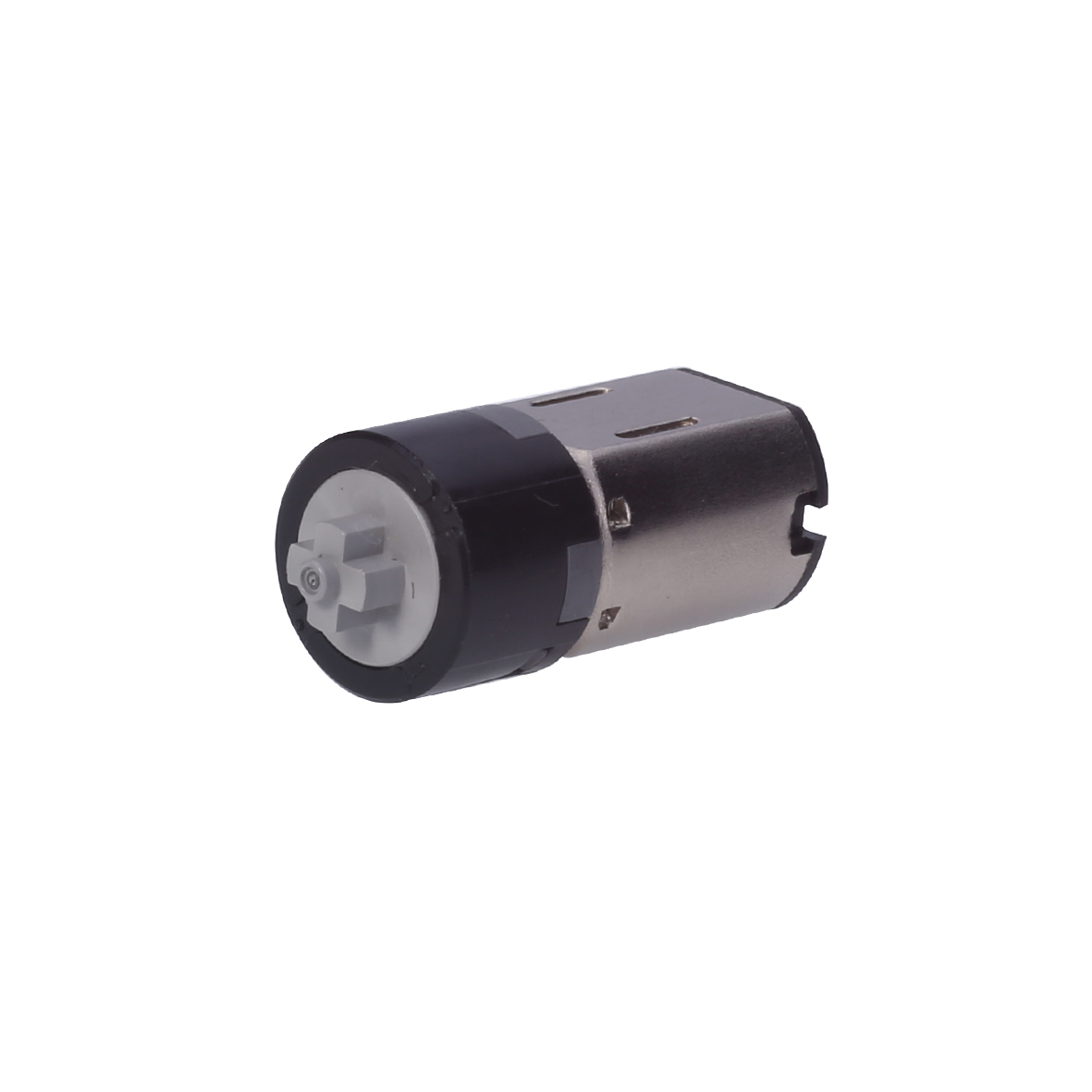

10mm plastic planetary reducer motor

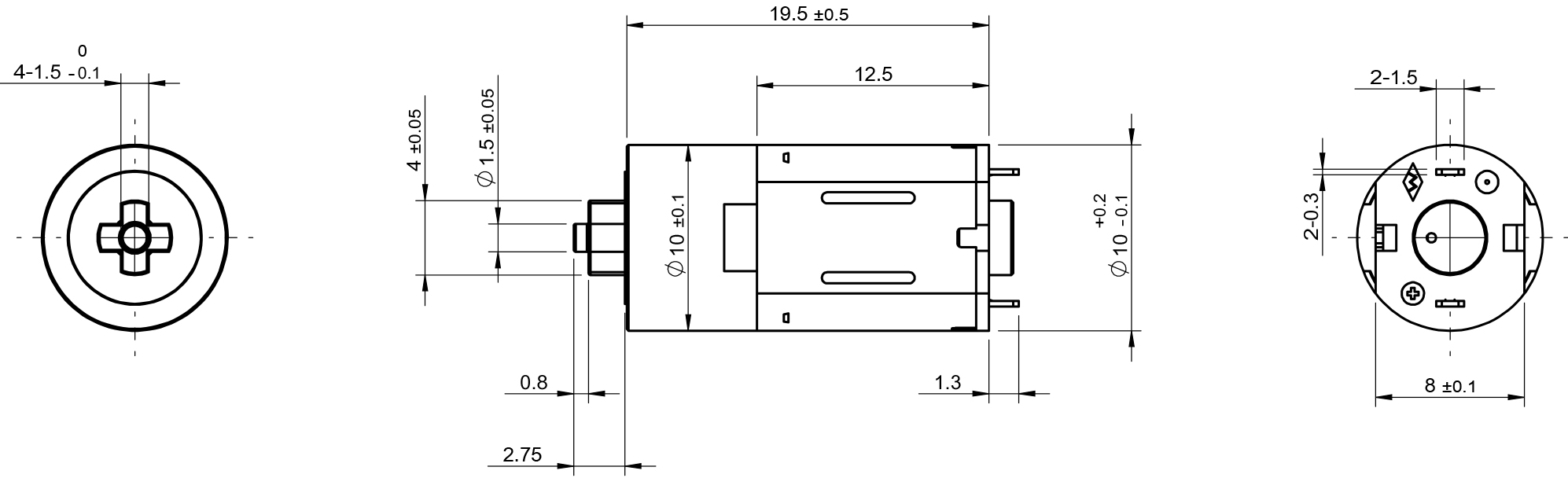

Diameter: 10mm Length: 19.5mm Voltage: 2.5v, 3v; Speed: 80-115rpm Gear: Plastic planetary gear reducer Manufacturer: Shenzhen Guangming, Chongqing

Applications: medical equipment, security systems and locks, audio and visual producks, personal healthcare products, and high-end hobby products.

Customizable options: wire length, shaft length, performance,

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	C1020-110-2.5-10PP171-0053	C1019-80-3.0-10PRC171-0108	C1019-110-3.0-10PRC171-0078
Voltage	V	2.5	3.0	3.0
Terminal resistance	Ω	3.7	10.5	5.6
No-load speed	rpm	110	80	115
No-load current	mA	100	40	75
Max torque	mNm	37.2	25	38
Load torque	mNm	9.8	9.8	9.8
Load speed	rpm	80	48	85
Load current	mA	230	140	195
Reduction ratio		1/171	1/171	1/171
Weight	g	3.8	3.8	3.8
Operating temperature range	℃	-10～+70	-10～+70	-10～+70
