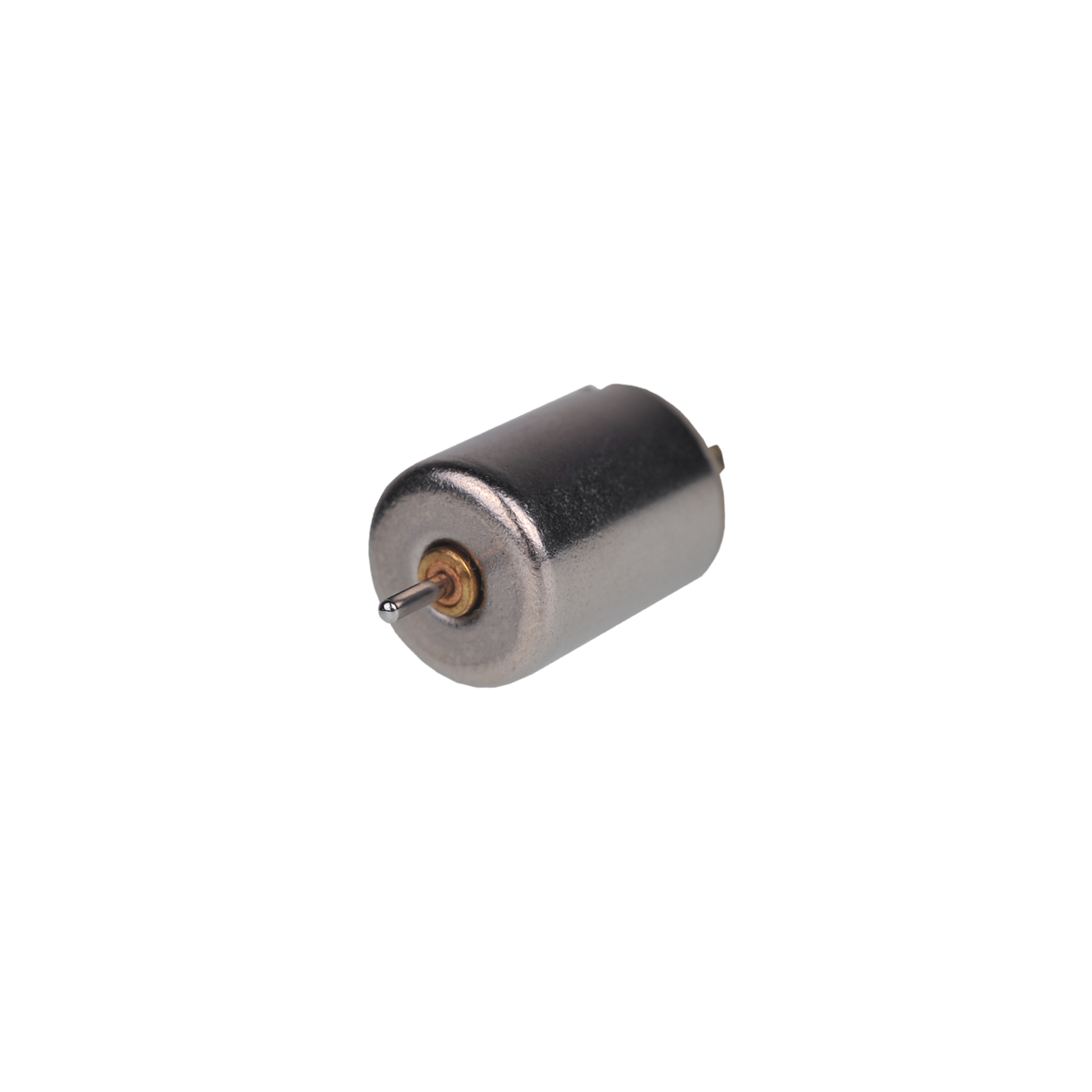

L1015N5M

10mm DC Coreless Motor Series

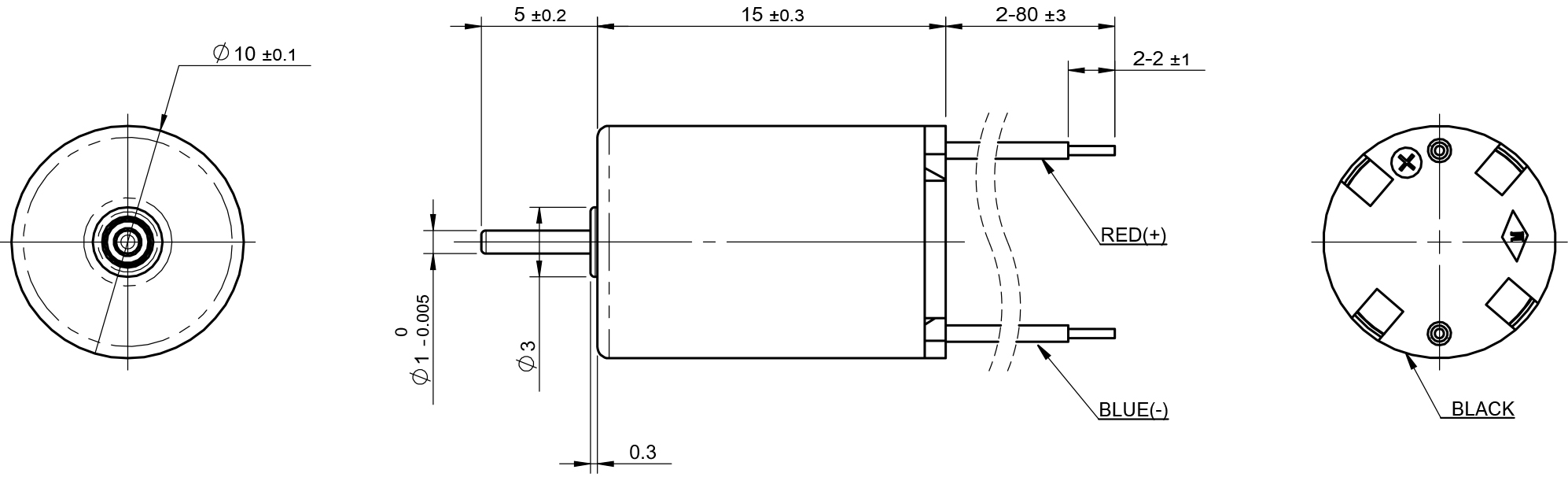

Width: 10mm; Length: 15mm; Voltage: 3.7v, 5.0v, 6.0v; No-load speed: 21200-26700rpm; Maximum output power: 1.23-1.52w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

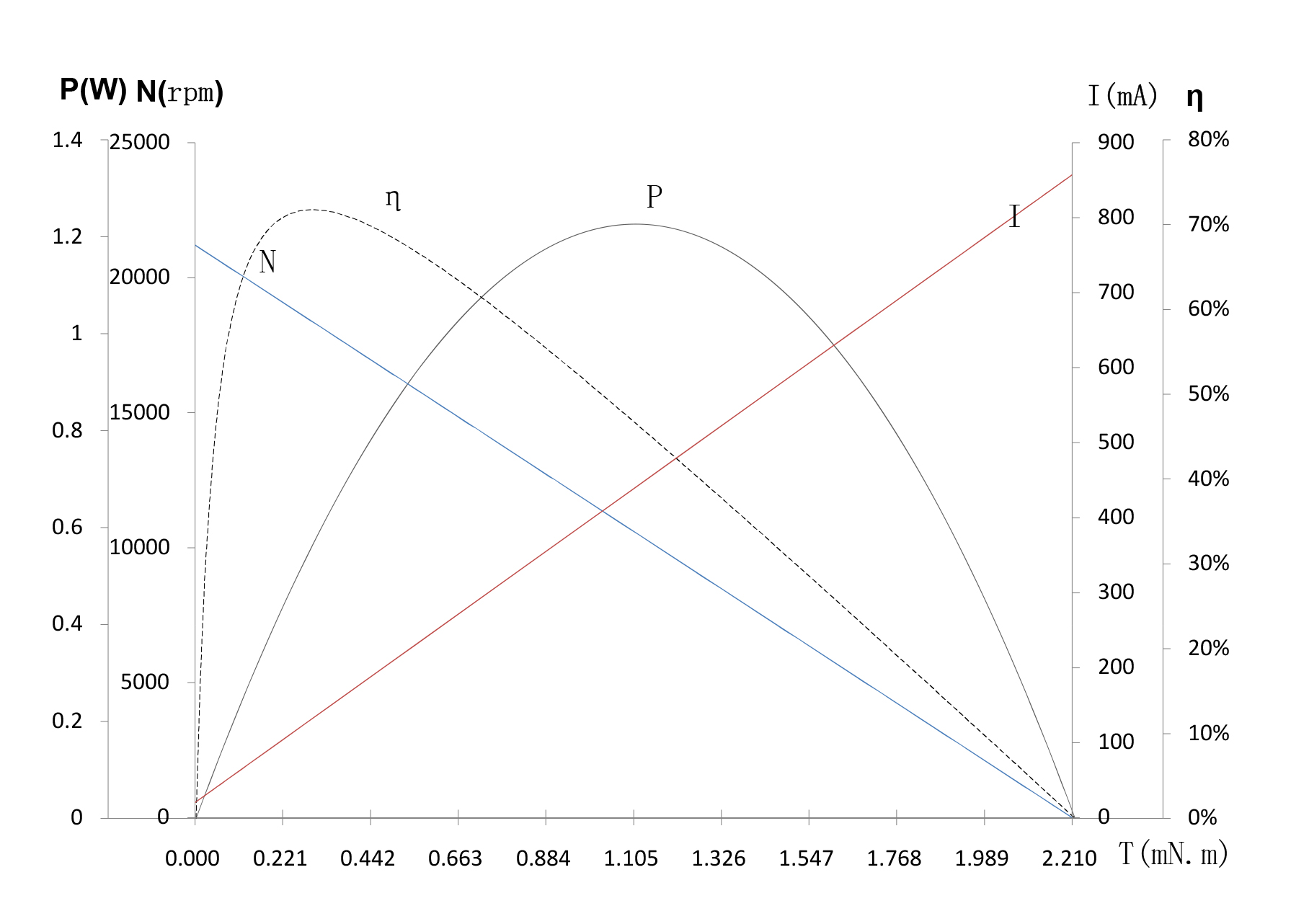

Nombre	Unidad	22-212-6.0	93-213-3.7	95-267-5.0
Voltage	V	6.0	3.7	5.0
Terminal resistance	Ω	7	2.5	3.9
No-load speed	rpm	21200	21300	26700
No-load current	mA	20	35	35
Stall torque	mNm	2.21	2.32	2.17
Stall current	mA	860	1470	1280
Load torque	mNm	0.5	0.5	1.5
Load speed	rpm	16400	16710	8240
Load current	mA	210	340	900
Max.output power	W	1.23	1.3	1.52
Max.efficiency	%	72	72	70
Back-EMF constant	mV/rpm	0.3	0.2	0.2
Torque constant	mNm/A	2.6	1.6	1.7
Speed/torque gradient	rpm/mNm	9590	9180	12310
Weight	g	5.1	5.1	5.1
Rotor inertia	gcm²	0.07	0.07	0.07
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
