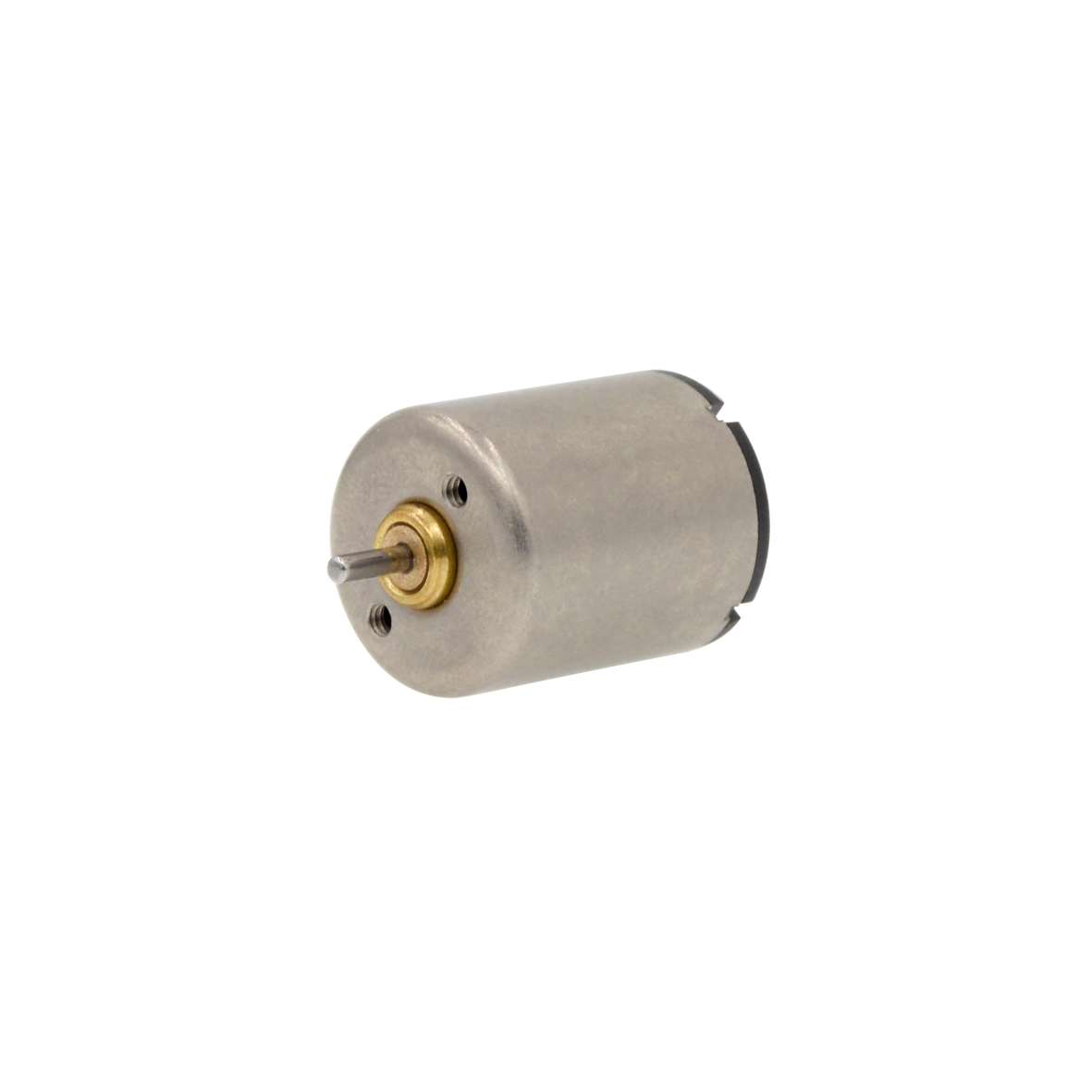

L1718N5M

17mm DC Coreless Motor Series

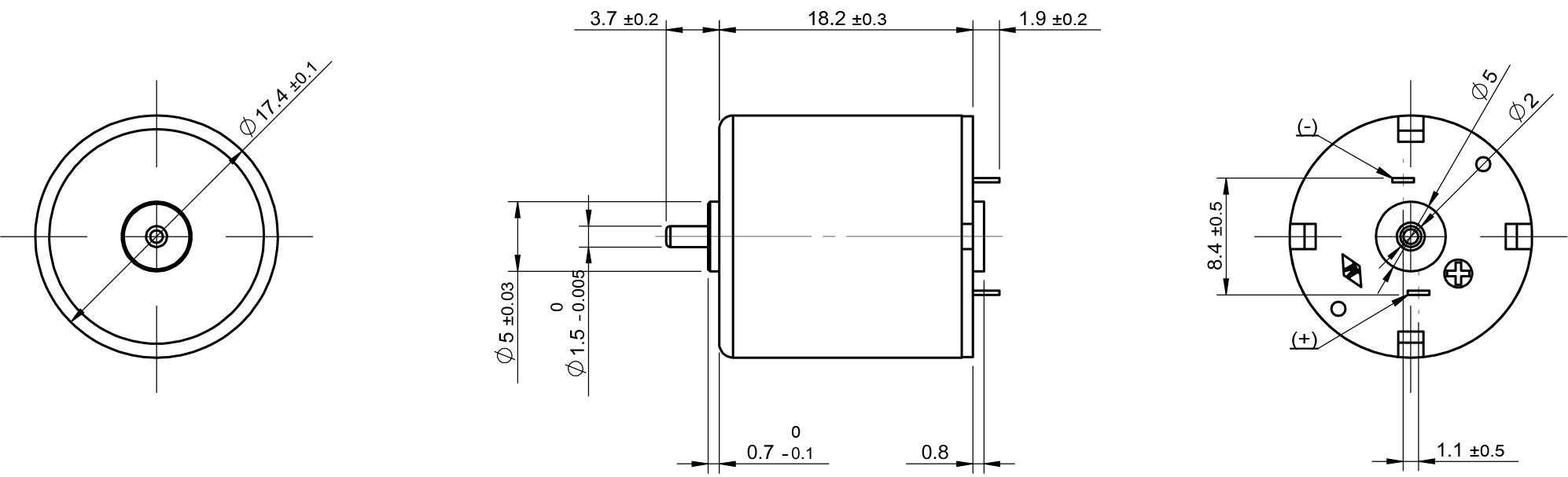

Width: 17.4mm; Length: 18.2mm; Voltage: 6.0v, 6.5v, 7.4v; No-load speed: 18000-26000rpm; Maximum output power: 4.6-11.3w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	06-180-6.0	67-185-6.5	46-245-7.4	57-260-7.4
Voltage	V	6.0	6.5	7.4	7.4
Terminal resistance	Ω	1.9	1.7	1.2	1.3
No-load speed	rpm	18000	18500	24500	26000
No-load current	mA	50	50	40	60
Stall torque	mNm	9.7	12.5	17.6	15.1
Stall current	mA	3160	3820	6170	5690
Load torque	mNm	1	1	1	2
Load speed	rpm	16150	17020	23110	22570
Load current	mA	370	350	390	800
Max.output power	W	4.6	6.1	11.3	10.3
Max.efficiency	%	77	79	85	81
Back-EMF constant	mV/rpm	0.3	0.3	0.3	0.3
Torque constant	mNm/A	3.1	3.3	2.9	2.7
Speed/torque gradient	rpm/mNm	1850	1480	1390	1720
Weight	g	18.3	18.3	18.5	20.5
Rotor inertia	gcm²	0.8	0.8	0.8	0.8
Operating temperature range	°C	-20～+85	-20～+85	-20～+85	-20～+85
