C1222...12PP...

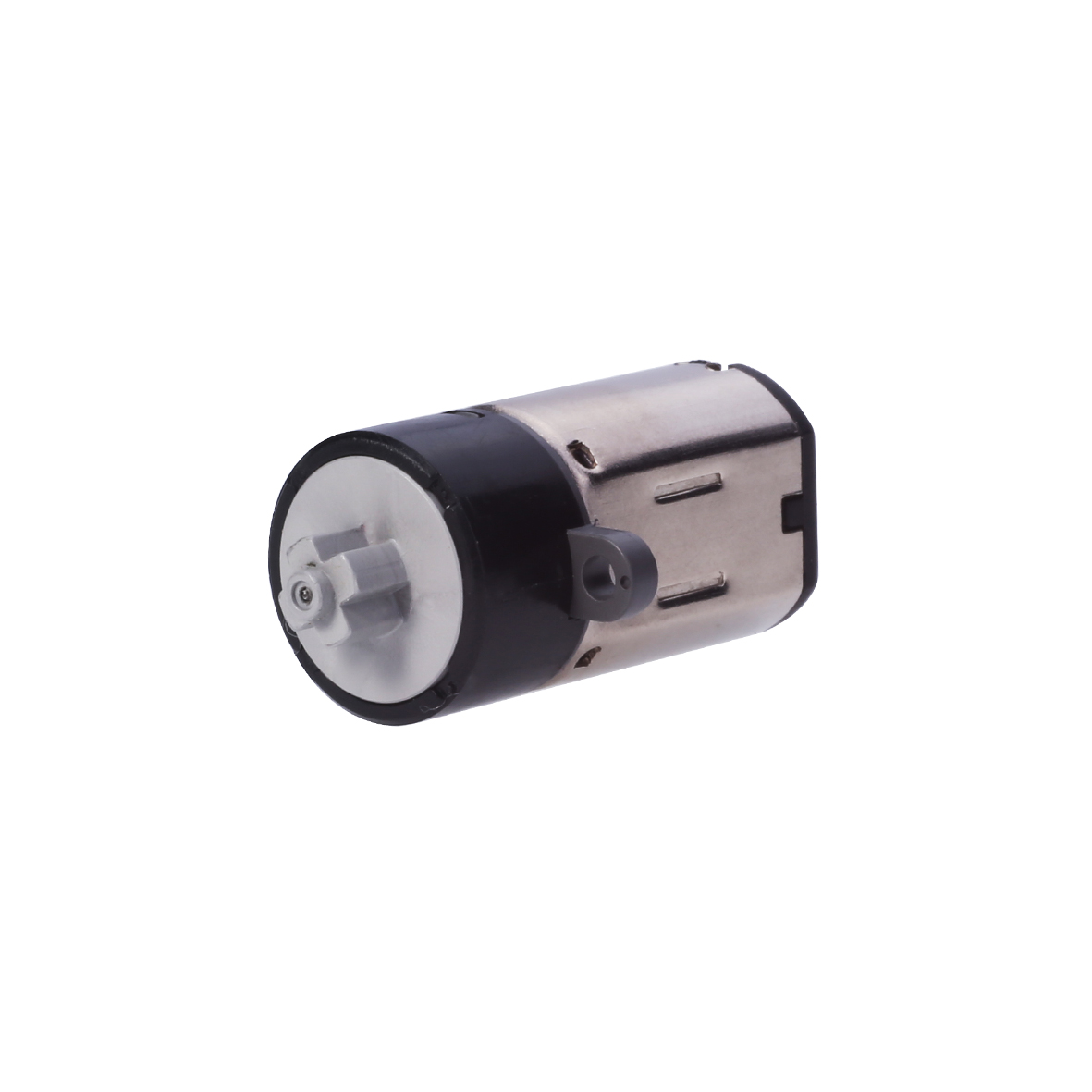

12mm plastic planetary reducer motor

Diameter: 12mm Length: 22.1mm Voltage: 2.5v, 5.0v; Speed: 80, 8, 95rpm Gear: Plastic planetary gear reducer Manufacturer: Shenzhen Guangming, Chongqing

Applications: medical equipment, security systems and locks, audio and visual producks, personal healthcare products, and high-end hobby products.

Customizable options: wire length, shaft length, performance,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet

Customized Assessment

Ask for a quotation

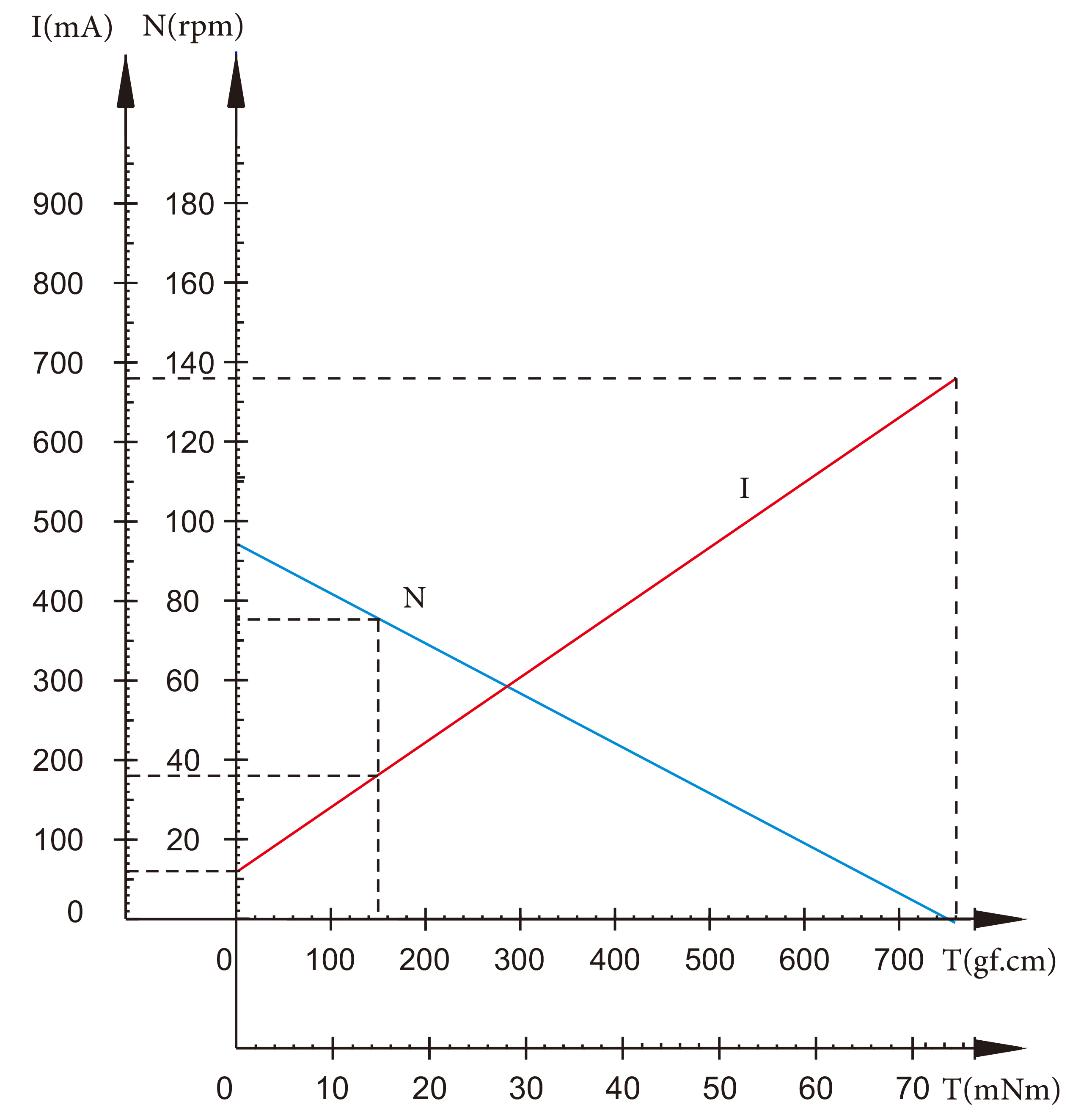

Parameter Outline Drawing Characteristic Curve Download

Nombre	Unidad	C1222-95-2.5-12PP120-0141	C1222-88-5.0-12PP120-0142	C1222-80-2.5-12PFC120-0228
Voltage	V	2.5	5.0	2.5
Terminal resistance	Ω	3.5	17.8	5.3
No-load speed	rpm	95	88	80
No-load current	mA	60	35	50
Max torque	mNm	68.6	62.7	50
Load torque	mNm	14.7	14.7	15
Load speed	rpm	75	66	56
Load current	mA	180	100	185
Reduction ratio		1/120	1/120	1/120
Weight	g	6.5	6.5	6.5
Operating temperature range	℃	-10～+70	-10～+70	-10～+70
