L0816N5M

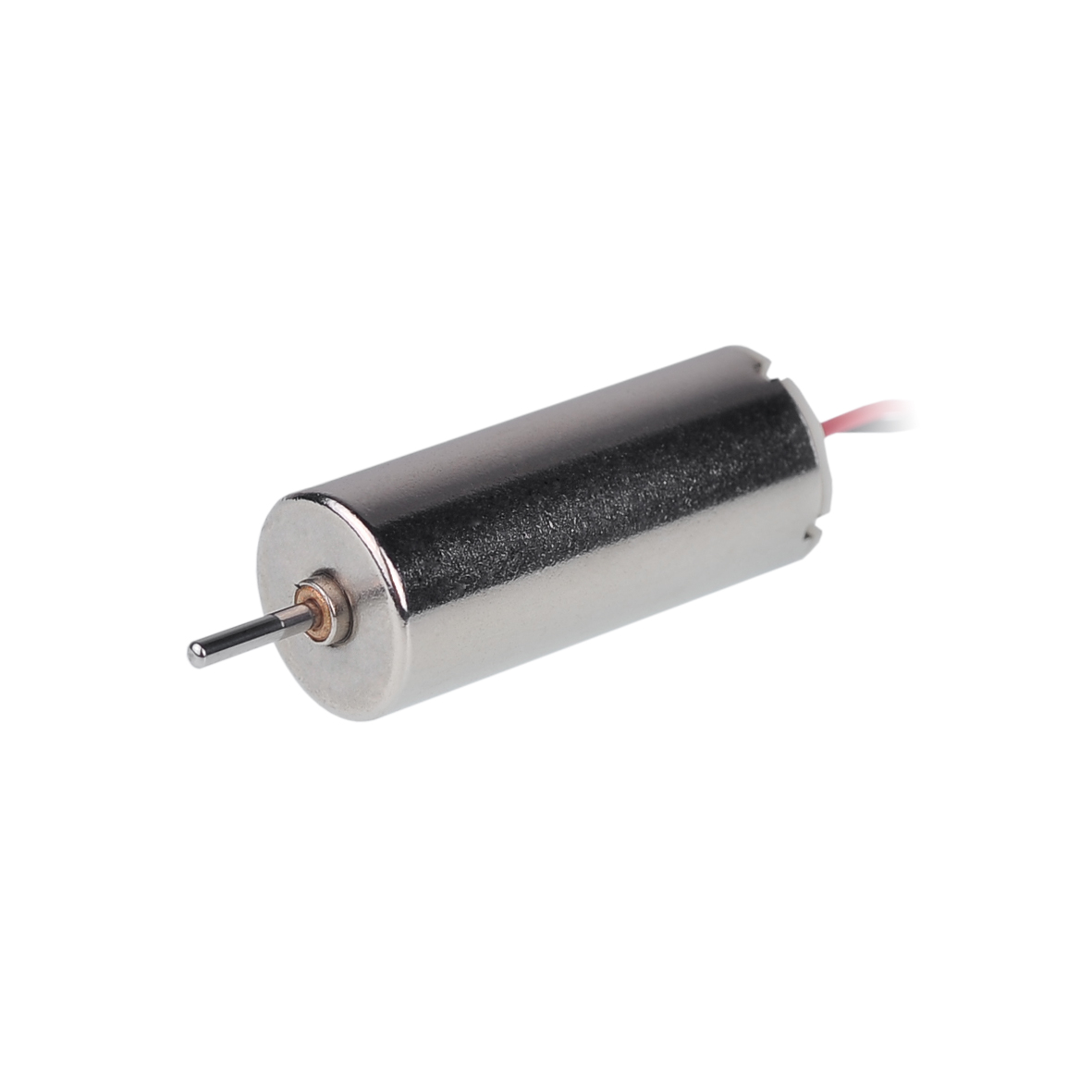

8mm DC Coreless Motor Series

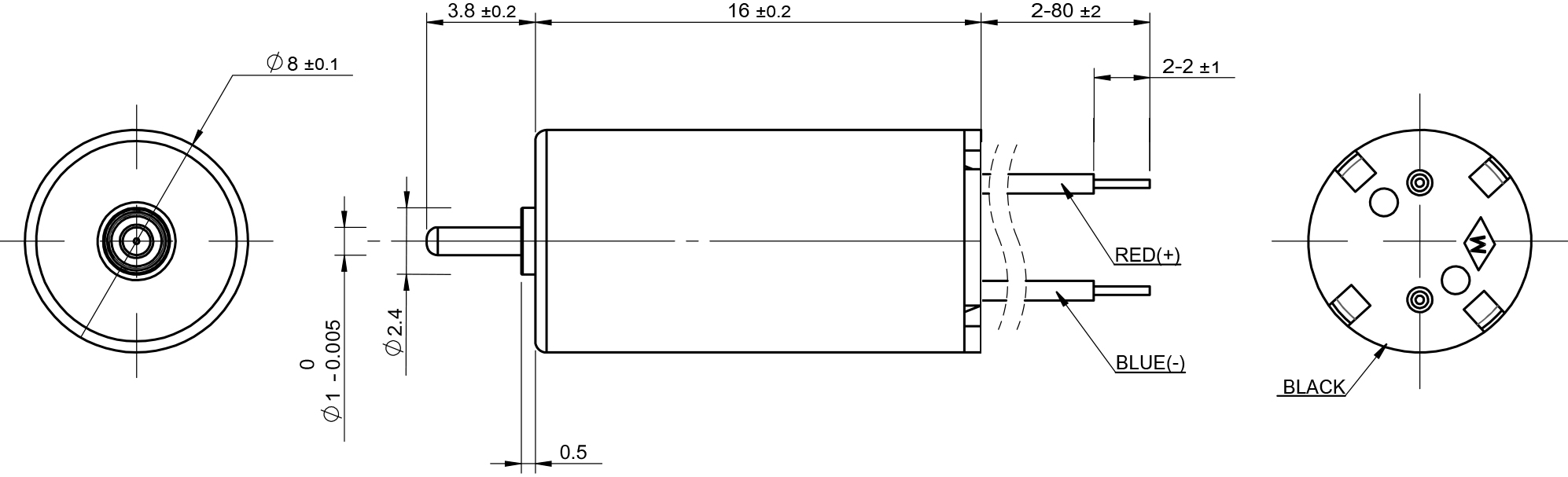

Width: 8mm; Length: 16mm; Voltage: 3.4v, 5.5v, 6.0v; No-load speed: 24300-43000rpm; Maximum output power: 1-1.59w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

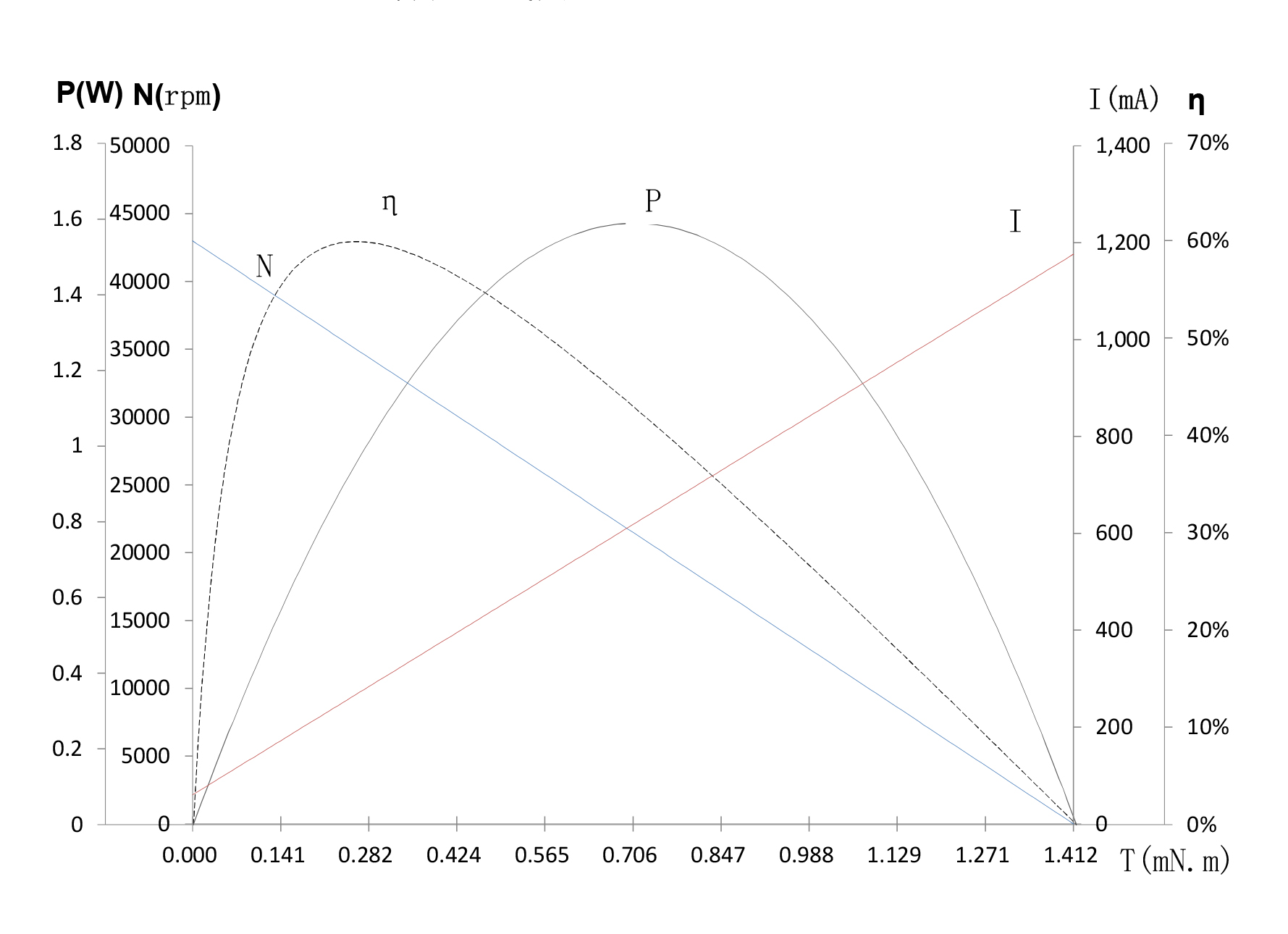

Nombre	Unidad	13-430-6.0	06-243-3.4	35-262-5.5
Voltage	V	6.0	3.4	5.5
Terminal resistance	Ω	5.1	2.7	4.95
No-load speed	rpm	43000	24300	26200
No-load current	mA	60	40	60
Stall torque	mNm	1.4	1.6	1.99
Stall current	mA	1180	1260	1100
Load torque	mNm	0.5	0.5	0.5
Load speed	rpm	27770	16600	19620
Load current	mA	460	430	320
Max.output power	W	1.59	1	1.37
Max.efficiency	%	59.9	67.6	59.4
Back-EMF constant	mV/rpm	0.13	0.14	0.2
Torque constant	mNm/A	1.26	1.29	1.9
Speed/torque gradient	rpm/mNm	30453	15409	13166
Weight	g	3.1	3.1	3.4
Rotor inertia	gcm²	0.07	0.07	0.07
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
