Planetary Gear Motor

12**...12*P...

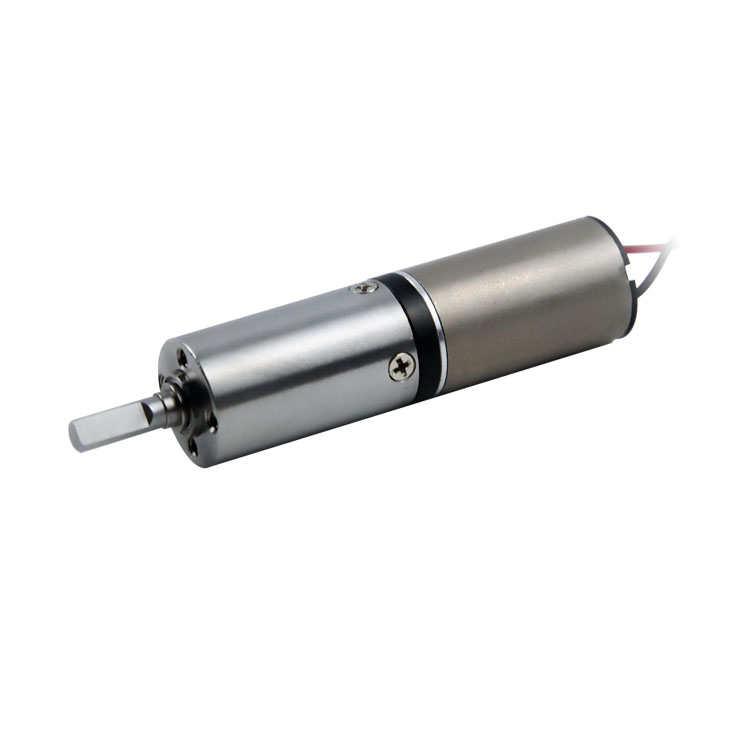

12mm planetary gear reduction motor

Diameter: 12mm; Length: 43-60mm; Voltage: 5v, 6v, 12v; Reduction ratio: 4~4096;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

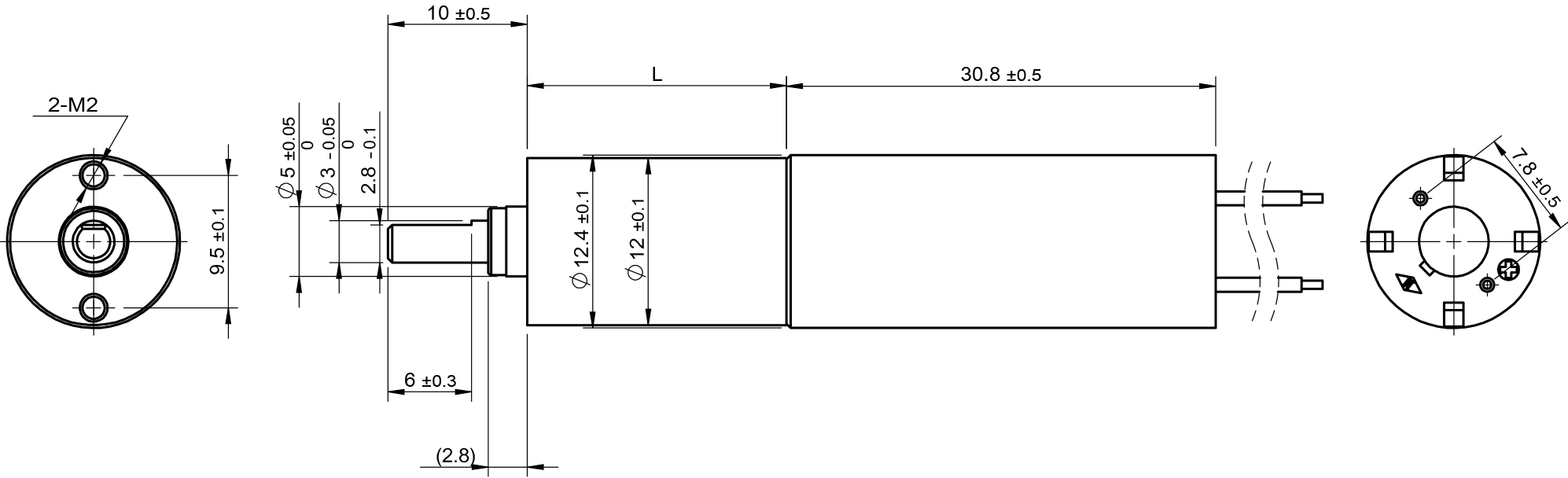

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 1230N5M15-113-12.0 1230N7M**-100-6.0 B1220N2B01-175-5.0
Voltage V 12.0 6.0 5.0
Terminal resistance Ω 10.4 2.9 2
No-load speed rpm 11300 10000 17500
No-load current mA 15 25 180
Stall torque mNm 11.4 11.6 5.8
Stall current mA 1150 2070 2500
Nominal torque mNm 3.0 2 1.4
Nominal speed rpm 8320 8270 11600
Nominal current mA 310 380 780
Max.output power W 3.36 3.03 2.5
Max.efficiency % 79 79 51
Back-EMF constant mV/rpm 1 0.6 0.3
Torque constant mNm/A 10 5.7 2.5
Speed/torque gradient rpm/mNm 990 860 3030
Rotor inertia gcm2 0.25 0.25 0.17
Weight g 17.7 17.7 9.5
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 4 16 64 256 1024 4096
Max. rated torque mNm 80 120 160 180 200 200
Max. momentary torque mNm 240 360 180 540 600 600
Length（L） mm 12.8 16.1 19.4 22.7 26 29.3
Shell material Metal
Gear processing technology Plastic injection
