Planetary Gear Motor

25**...26*P...

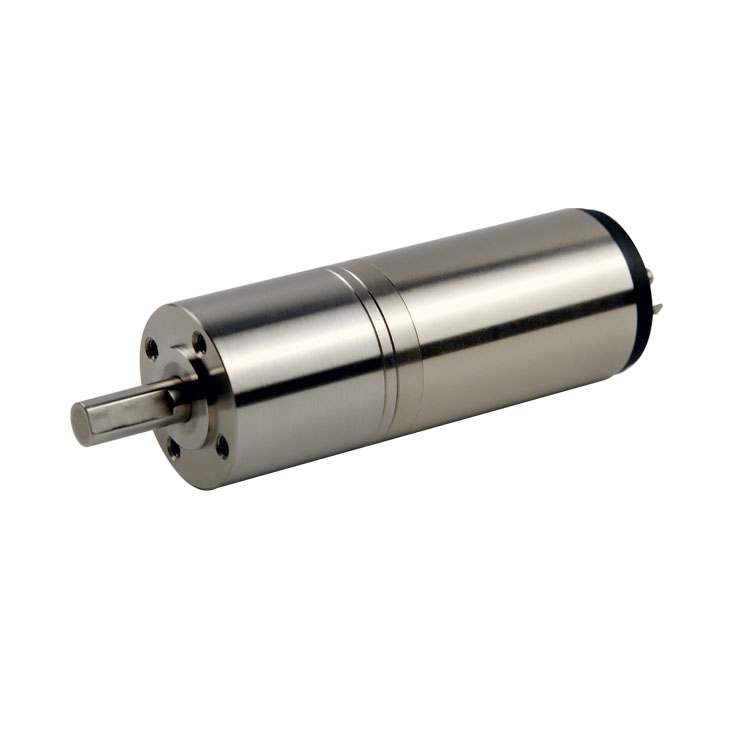

26mm planetary gear reduction motor

Diameter: 26mm; Length: 65~91mm; Voltage: 14v, 24v, 48v; Reduction ratio: 3.7~352;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

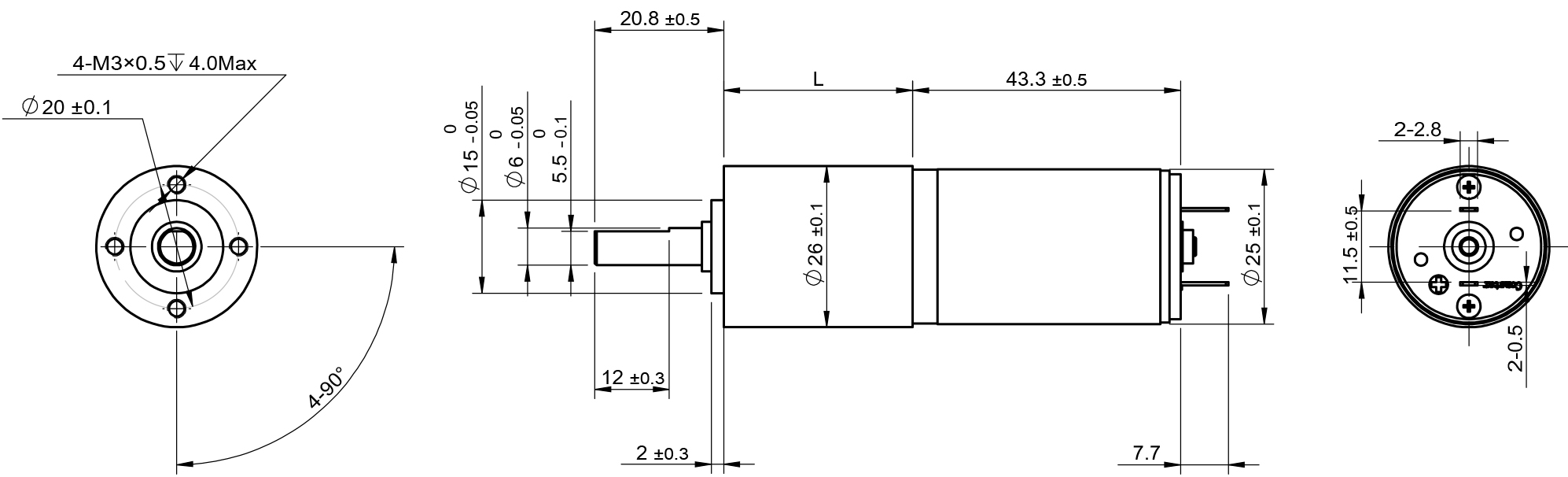

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 2543N9C2B05-65-48.0 2543N9C2B10-90-24.0 2554N9C2B09-60-14.0
Voltage V 48.0 24.0 14.0
Terminal resistance Ω 23.5 3.9 2.7
No-load speed rpm 6500 9000 6000
No-load current mA 0.03 0.035 0.05
Stall torque mNm 139.7 154.8 113.42
Stall current mA 2.04 6.15 5.19
Nominal torque mNm 40.0 30 20
Nominal speed rpm 4640 7260 4940
Nominal current mA 0.61 1.22 0.96
Max.output power W 23.8 36.5 17.8
Max.efficiency % 77 86 81
Back-EMF constant mV/rpm 7.3 2.7 2.3
Torque constant mNm/A 69.5 25.3 22.1
Speed/torque gradient rpm/mNm 46.5 58.1 52.9
Rotor inertia gcm2 13.2 13.2 14.2
Weight g 96 96 120
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 3.7,5.2 13~27 50~140 187~352 　 　
Max. rated torque mNm 500 750 2000 2500 　 　
Max. momentary torque mNm 750 1100 3000 3750 　 　
Length（L） mm 21.5 30.5 39.5 48.5 　 　
Shell material Metal
Gear processing technology Metal CNC
