L0616...06PP...

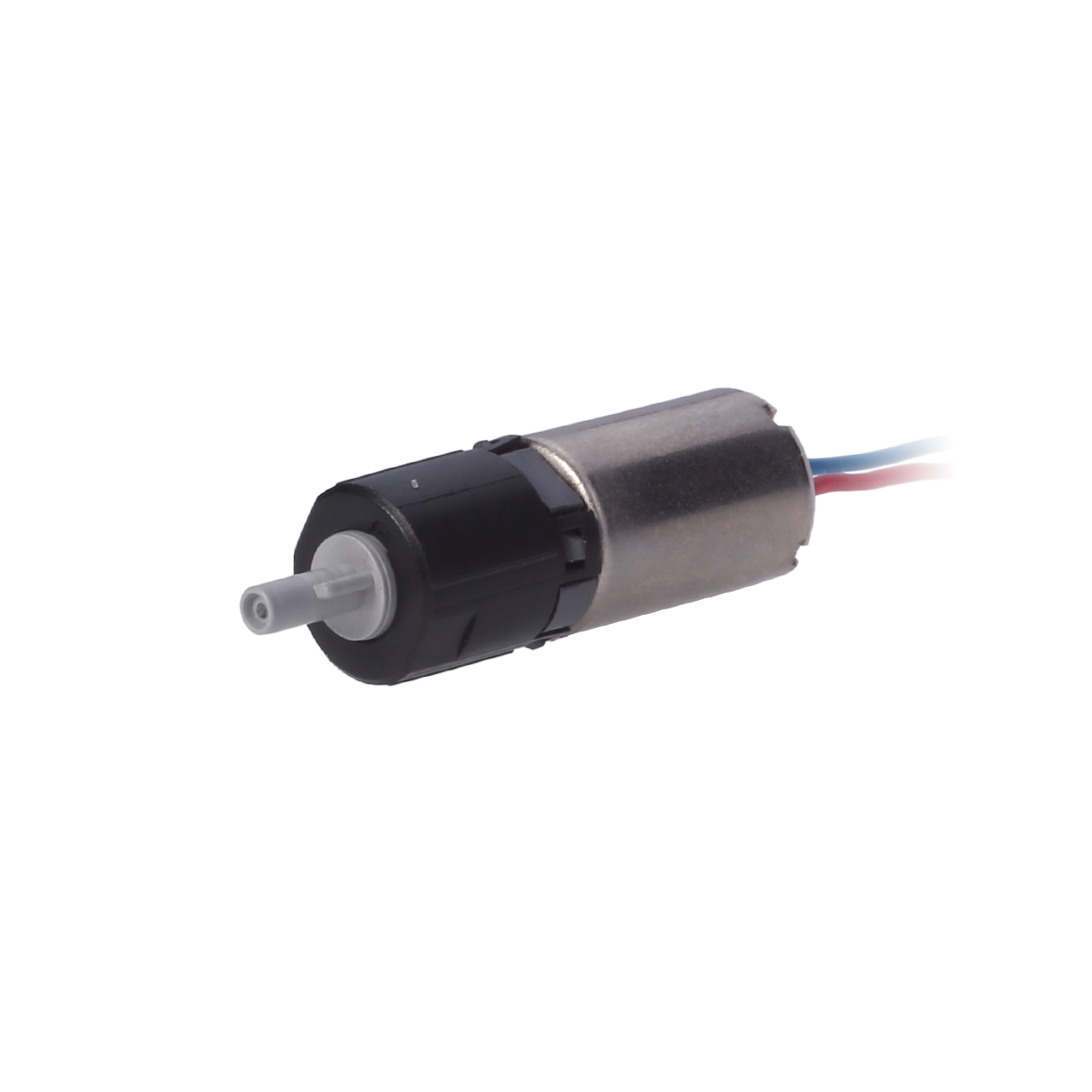

6mm micro DC reduction motor

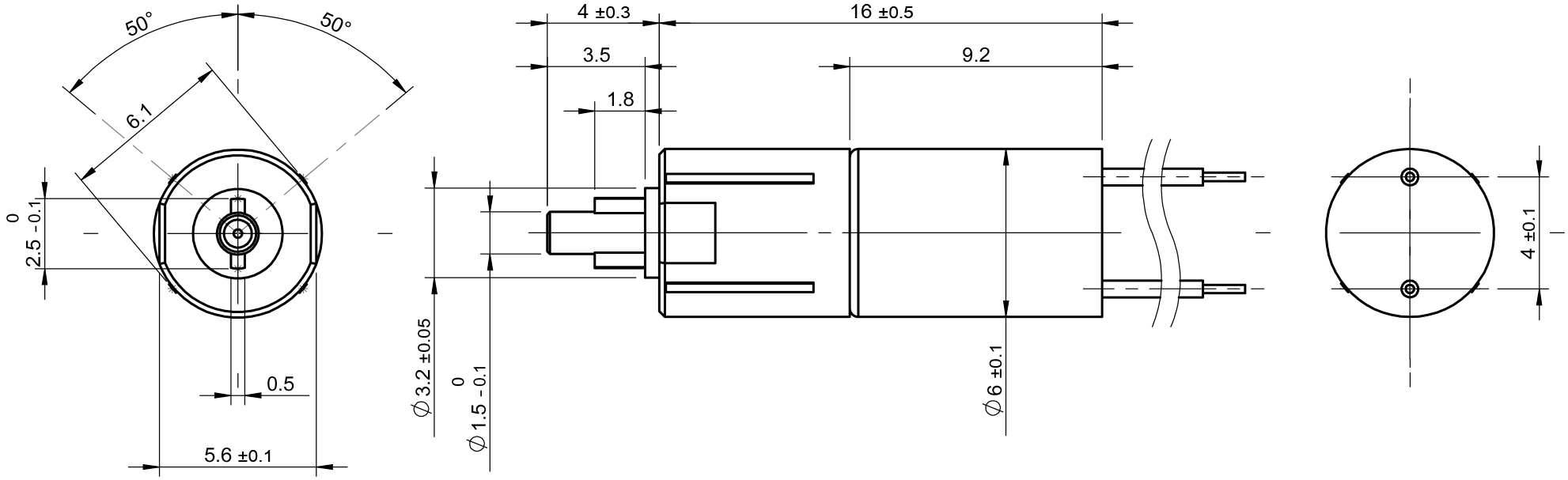

Diameter: 6mm Length: 16mm Voltage: 3.0v Gearbox: plastic planetary gear; Reduction ratio: 1:25

Applications: medical equipment, security systems and locks, audio and visual producks, personal healthcare products, and high-end hobby products.

Customizable options: wire length, shaft length, performance,

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	L0616-1300-3.0-06PP25-0001	L0615-1300-3.0-06PF25-0025	L0615-1800-3.0-06PR25-0035
Voltage	V	3.0	3.0	3.0
Terminal resistance	Ω	13.7	13.7	7.8
No-load speed	rpm	1300	1300	1750
No-load current	mA	50	50	55
Max torque	mNm	2.94	2.94	3.4
Load torque	mNm	0.2	0.2	0.2
Load speed	rpm	1210	1200	1680
Load current	mA	60	60	65
Reduction ratio		1/25	1/25	1/25
Weight	g	1.2	1.2	1.2
Operating temperature range	℃	-10～+70	-10～+70	-10～+70
