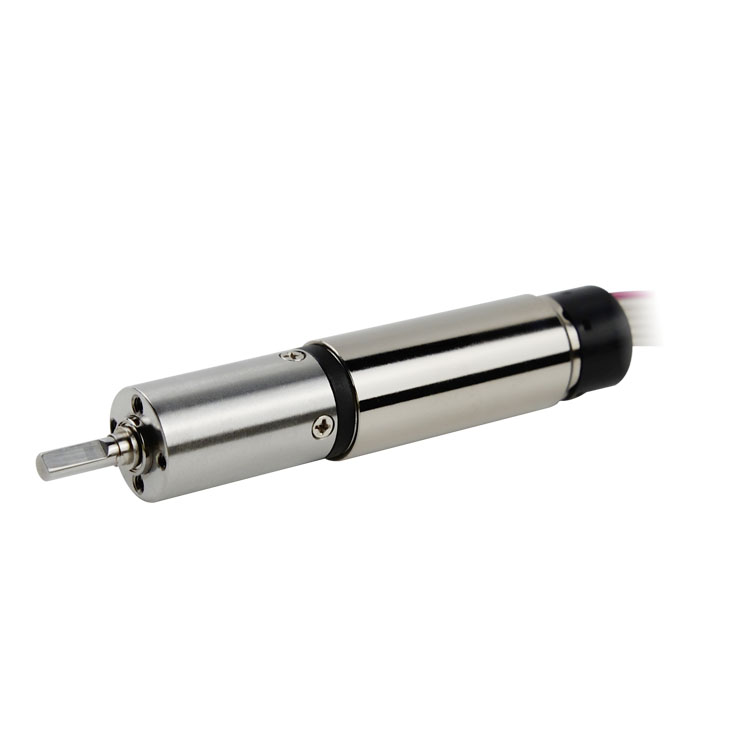

Coreless Brushed Motor

12**M7...M...

Diameter: 12mm; Length: 33-63mm; Voltage: 4.5v, 6v, 12v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

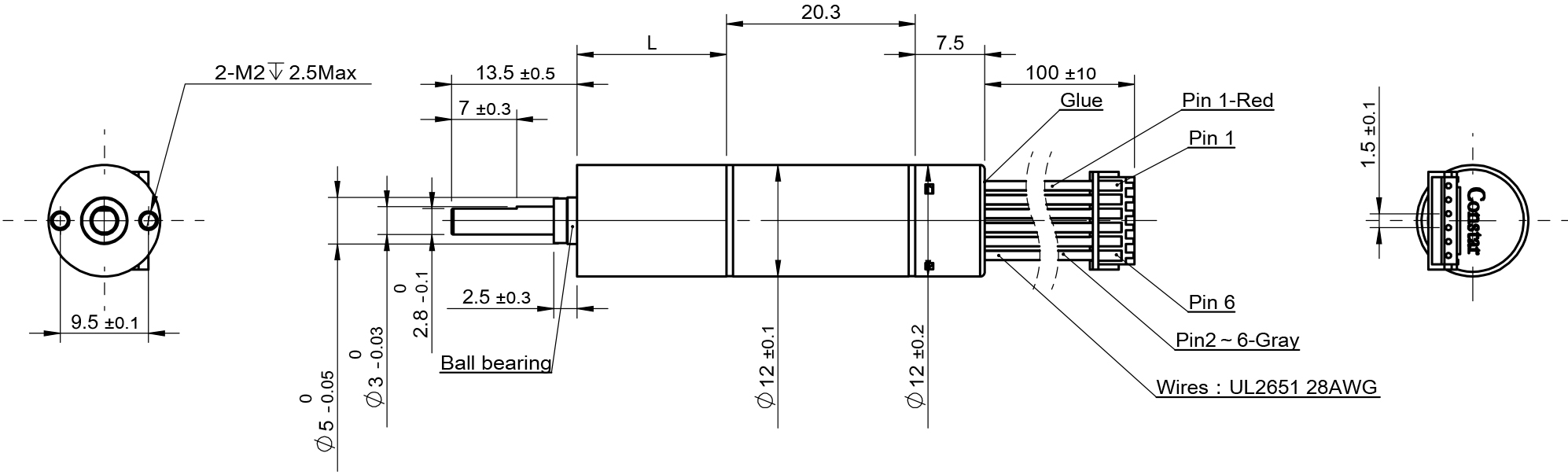

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 1026N7M03-125-6.0 1026N7M01-125-12.0 1026N7M04-130-12.0
Voltage V 4.5 6.0 12.0
Terminal resistance Ω 8.5 3.8 22
No-load speed rpm 4800 14000 16200
No-load current mA 15 60 20
Stall torque mNm 4.48 5.98 3.58
Stall current mA 530 1580 550
Nominal torque mNm 2.0 2.78 2.45
Nominal speed rpm 2760 7500 5200
Nominal current mA 235 770 380
Back-EMF constant mV/rpm 0.91 0.41 0.71
Torque constant mNm/A 8.72 3.94 6.81
Gearbox
Number of stages 1 2 3 4 5 6 6
Reduction ratio 4 16 64 256 1024 4096 4096
Max. rated torque 80 120 160 180 200 200 40
Max. momentary torque 240 360 480 540 600 600 120
Length（L） 12.8 16.1 19.4 22.7 26 29.3 23.1
Shell material Metal
Gear processing technology Metal CNC
Encoder 　 　 　 　
Number of channels 　 2 3 　
Counts per turn cpt 16,32,64,256,512 16,32,64,256,512 　
Supply voltage V 5.0 （5.0） 5.0 （5.0） 　
Max. speed rpm 30000 30000 　
Phase shift °e 90±45 90±45 　 　
Output signal 　 TTL TTL 　 　
Diameter mm 8 8 　 　
Length mm 6.7 6.7 　 　
