C1723R

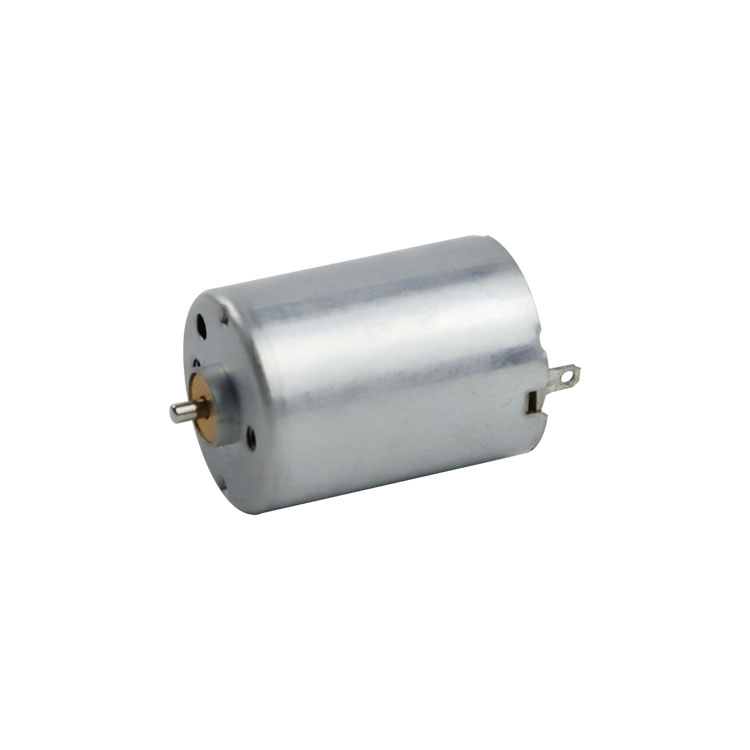

17mm DC iron core motor

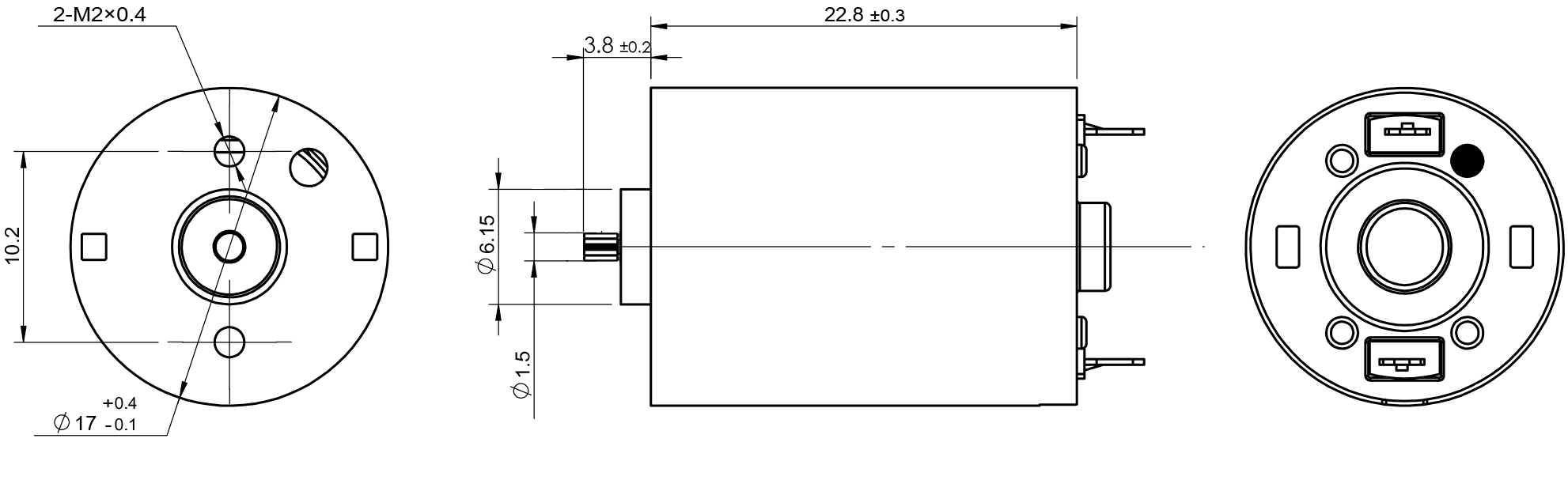

Diameter: 17mm; Length: 22.8mm; Voltage: 7.4v, 12.0v; No-load speed: 17200-18800rpm; Load torque: 0.49-0.88mNm; Maximum output power: 4.43-5.31W.

Application areas: small electronic products, portable tools, smart door locks, etc.

Customizable options: specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	31B-0114	31B-0159	31B-0165
Voltage	V	7.4	12.0	12.0
No-load speed	rpm	18800	18400	17200
No-load current	mA	120	80	80
Stall torque	mNm	9	9.8	11.77
Stall current	mA	3700	1900	2700
Load torque	mNm	0.49	0.88	0.49
Load speed	rpm	17780	16700	16500
Load current	mA	310	240	180
Max output power	W	4.43	4.73	5.31
Max efficiency	%	46.5	57.1	47.7
Torque constant	mNm/A	2.51	5.38	4.49
Speed/torque gradient	rpm/mNm	2089	1878	1461
Weight	g	18.2	18.2	18.2
Varistor	Yes/No	Yes	Yes	Yes
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
