L0612N5M

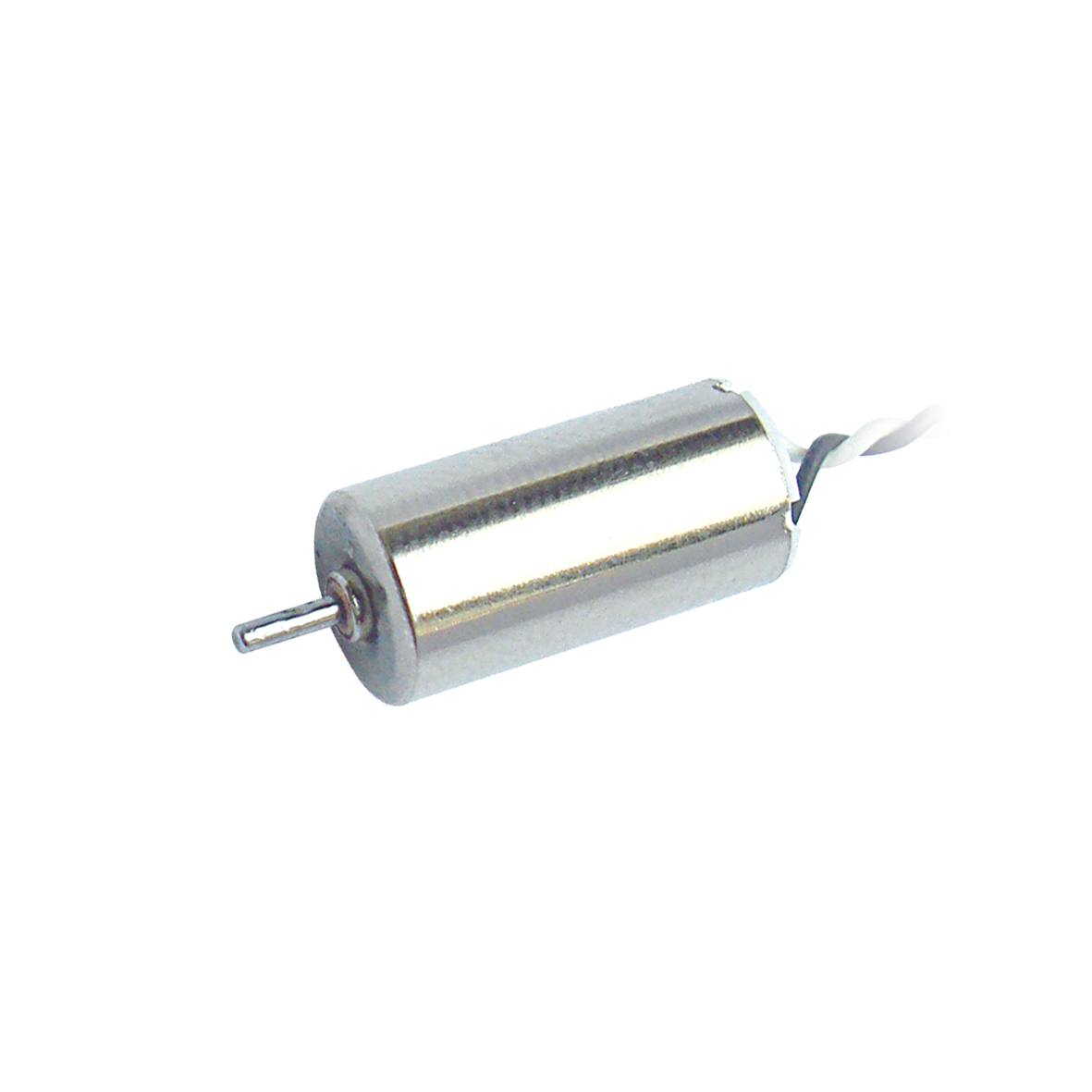

6mm DC Coreless Motor Series

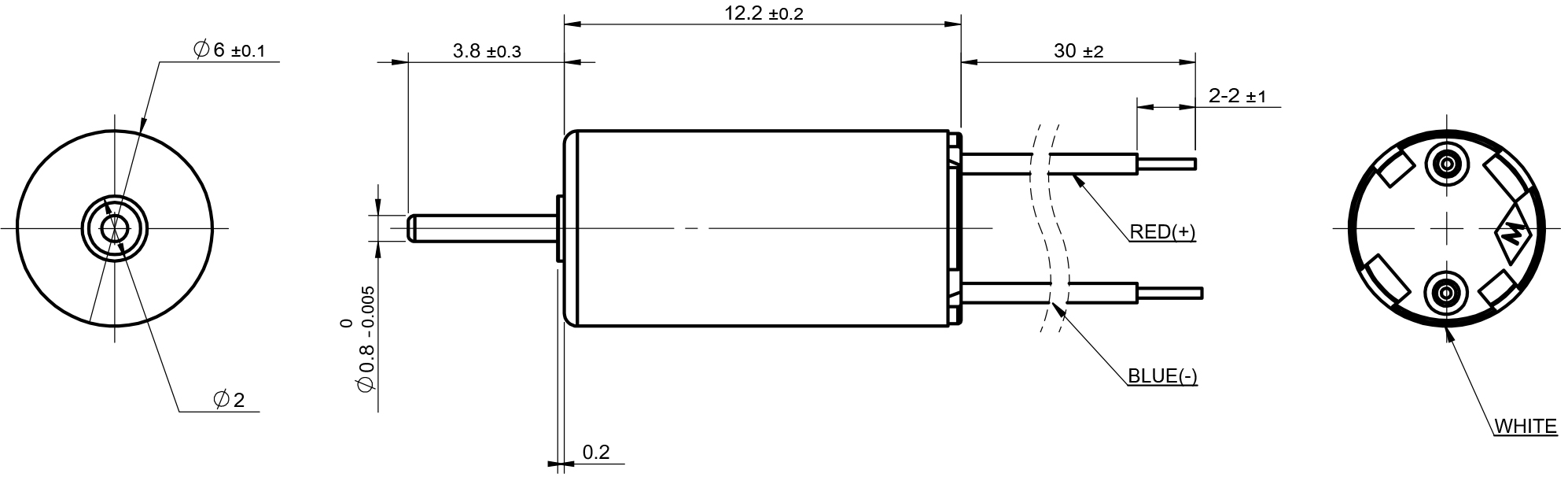

Width: 6mm; Length: 12.2mm; Voltage: 3.2-3.7v; No-load speed: 50000-76400rpm; Maximum output power: 1-1.8w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

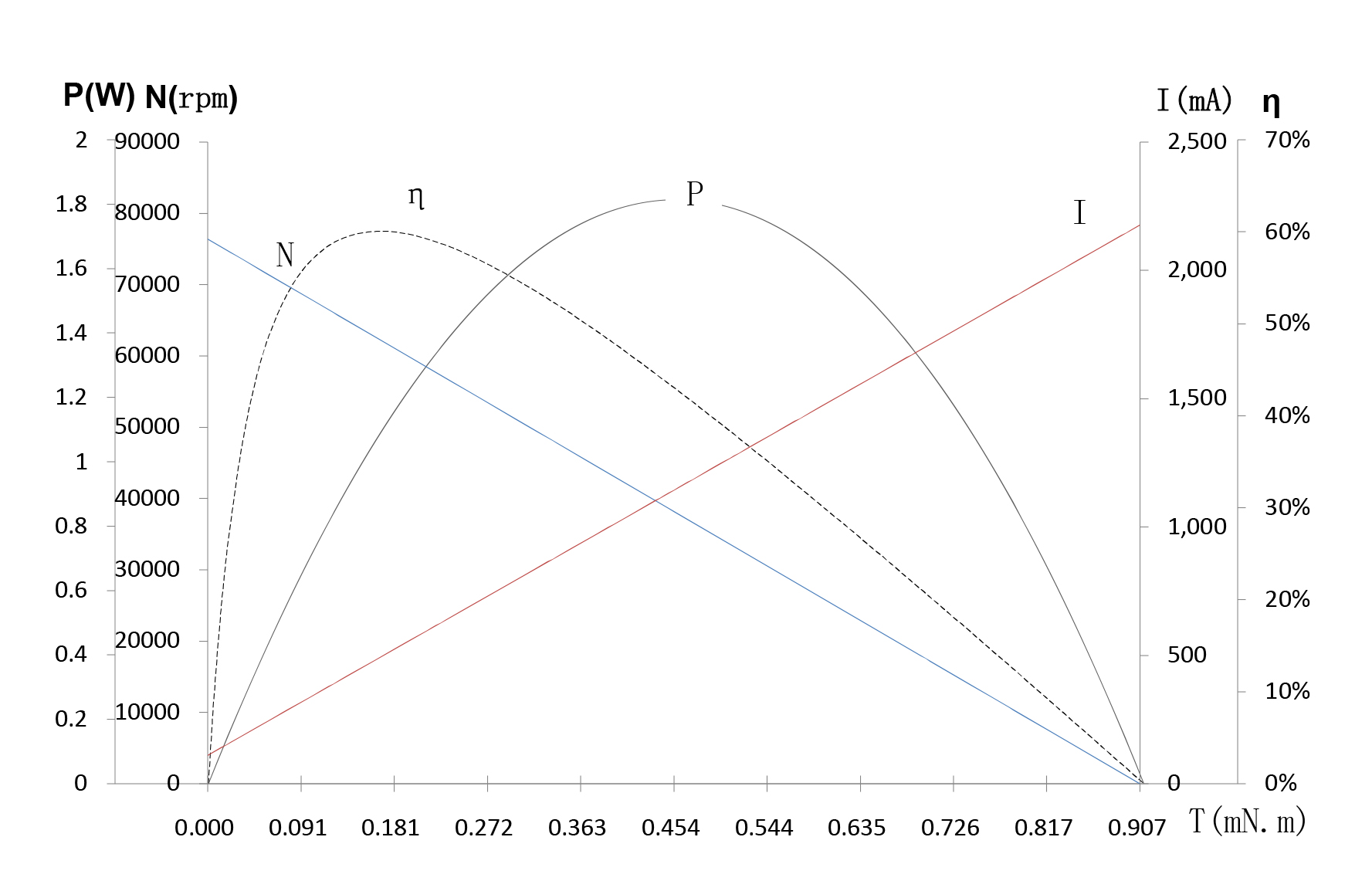

Nombre	Unidad	55-764-3.7	20-500-3.2	78-730-3.7
Voltage	V	3.7	3.2	3.7
Terminal resistance	Ω	1.7	2.2	2
No-load speed	rpm	76400	50000	73000
No-load current	mA	110	80	90
Stall torque	mNm	0.91	0.79	0.81
Stall current	mA	2176	1455	1850
Load torque	mNm	0.05	0.05	0.05
Load speed	rpm	72190	46850	68490
Load current	mA	220	170	200
Max.output power	W	1.8	1	1.5
Max.efficiency	%	60.1	58.7	60.8
Back-EMF constant	mV/rpm	0.05	0.06	0.05
Torque constant	mNm/A	0.44	0.58	0.46
Speed/torque gradient	rpm/mNm	84234	62972	90123
Weight	g	1.3	1.3	1.3
Rotor inertia	gcm²	0.014	0.014	0.014
Operating temperature range	°C	-20～+100	-20～+100	-20～+100
