Planetary Gear Motor

13**...13*P...

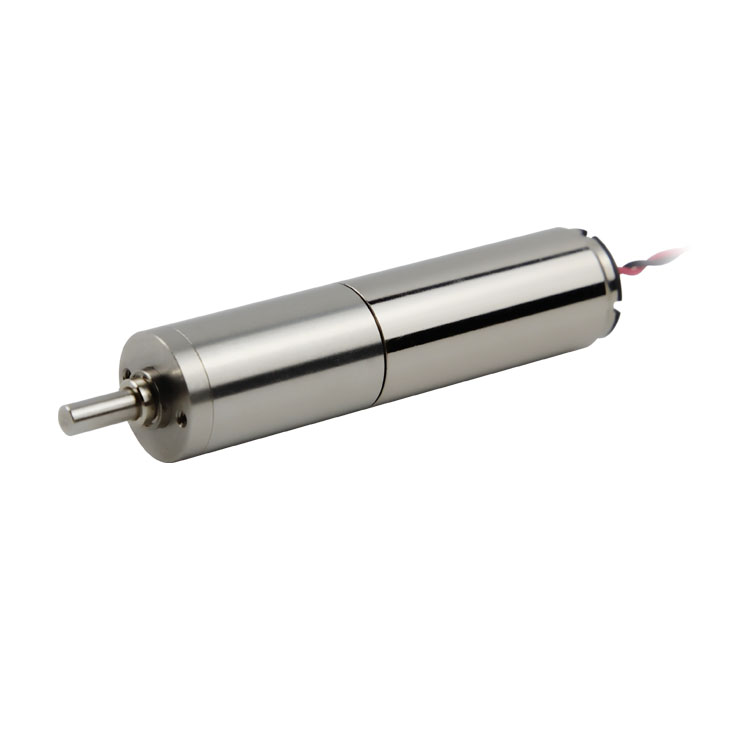

13mm planetary gear reduction motor

Diameter: 13mm; Length: 42~58mm; Voltage: 6v, 12v, 24v; Reduction ratio: 4~4096;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

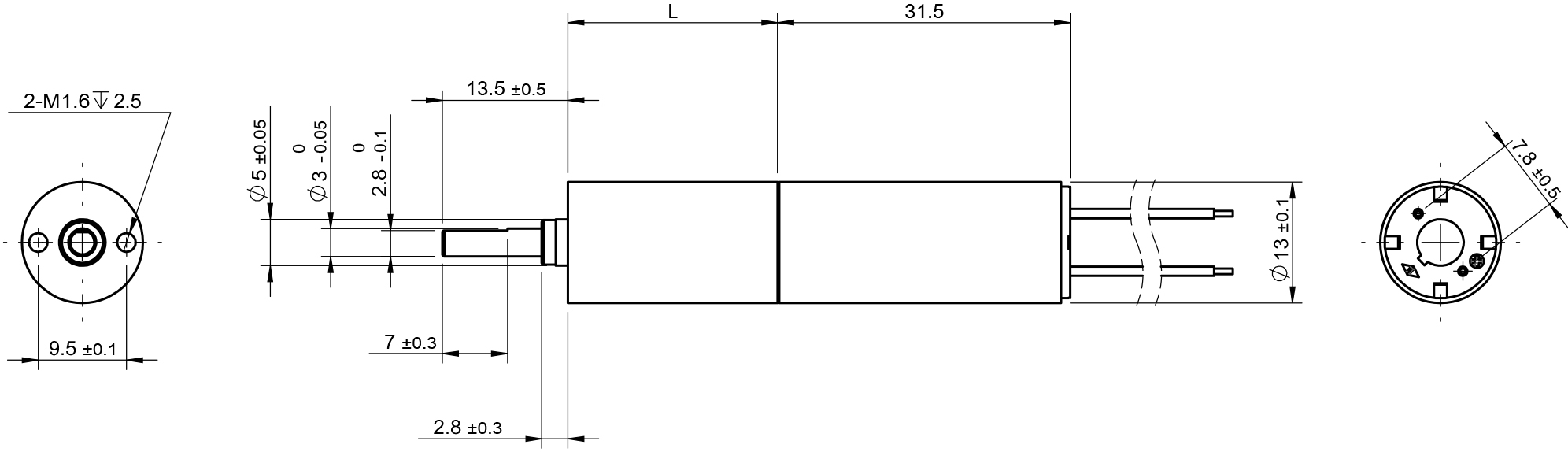

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 1331N5M09-87-12.0 1331N7M02-110-6.0 1331N7M01-96-24.0
Voltage V 12.0 6.0 24.0
Terminal resistance Ω 15.7 2.6 39.8
No-load speed rpm 8700 11000 9600
No-load current mA 10 25 8
Stall torque mNm 9.7 11.8 15.3
Stall current mA 760 2310 630
Nominal torque mNm 2 2 4
Nominal speed rpm 6920 9130 6790
Nominal current mA 160 410 170
Max.output power W 2.22 3.39 3.69
Max.efficiency % 78 80 79
Back-EMF constant mV/rpm 1.4 0.5 2.6
Torque constant mNm/A 13 5.2 24.6
Speed/torque gradient rpm/mNm 900 900 600
Rotor inertia gcm2 0.52 0.52 0.52
Weight g 20 20 20
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 4 16 64 256 1024 4096
Max. rated torque mNm 80 120 160 180 200 200
Max. momentary torque mNm 240 360 480 540 600 600
Length（L） mm 10.3 13.6 16.9 20.2 23.5 26.8
Shell material Metal
Gear processing technology Plastic injection
