Products Precision Servo Motor Coreless Brushless Motor 22**NH...M...（2）
22**NH...M...（2）
Coreless Brushless Motor

22**NH...M...（2）

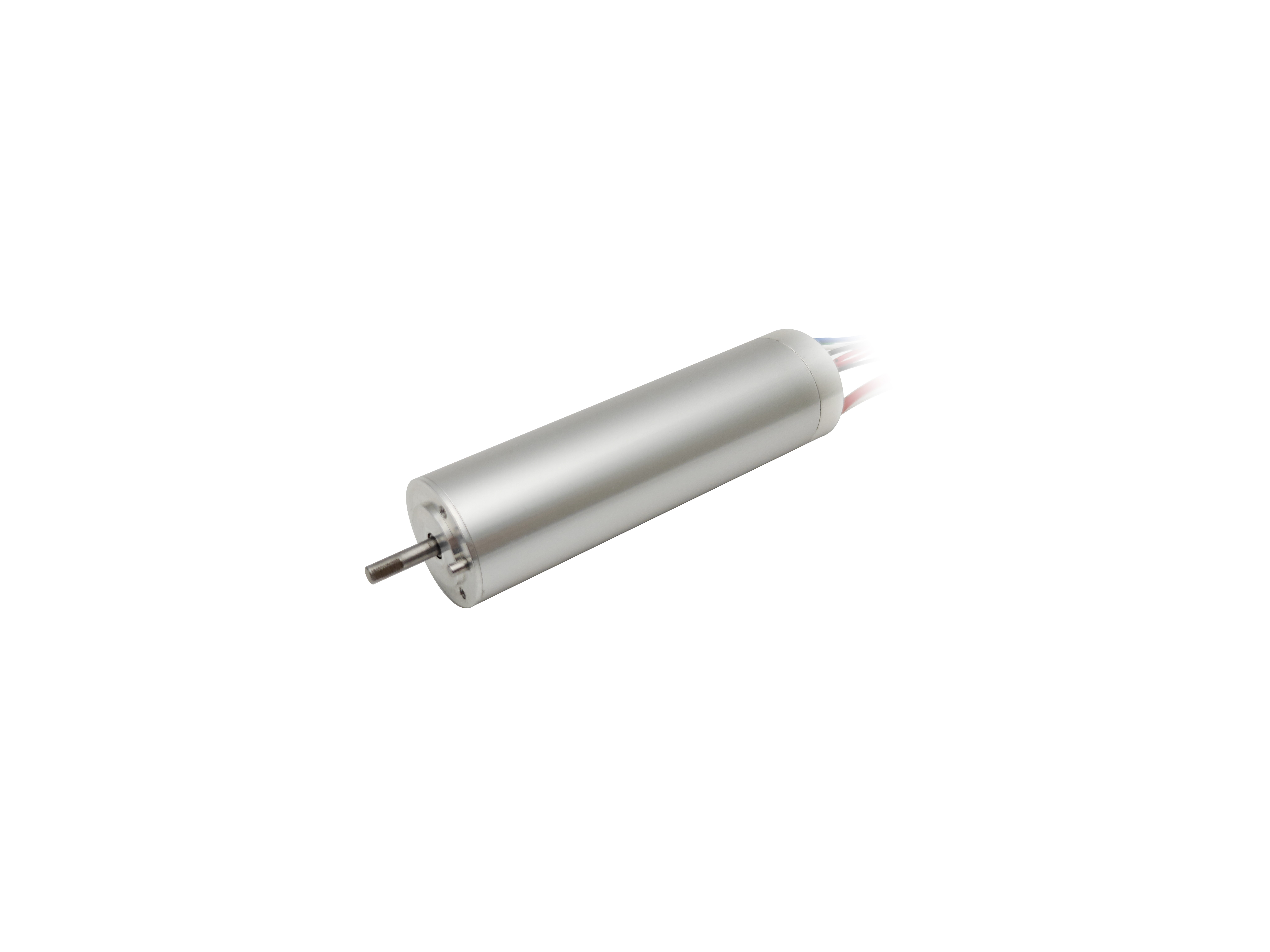

22mm coreless brushless servo motor

Diameter: 22mm; Voltage: 24v, 36v, 48v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

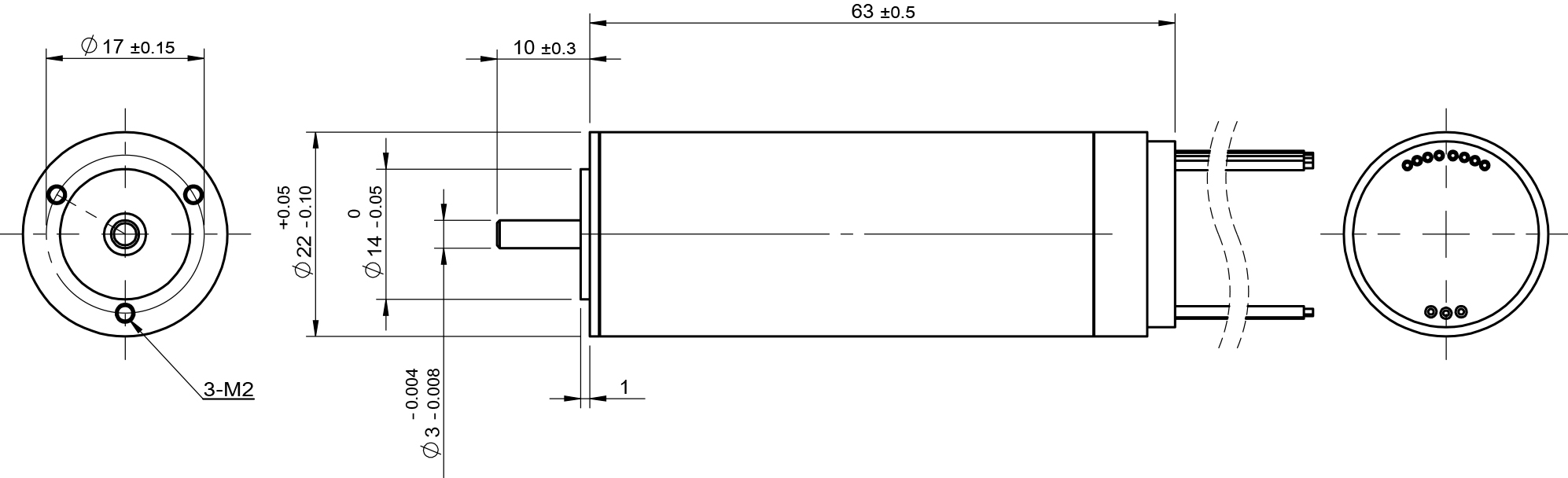

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 01-500-24.0 02-500-36.0 03-500-48.0
Voltage V 24.0 36.0 48.0
Terminal resistance Ω 0.19 0.43 0.76
No-load speed rpm 50000 50000 50000
No-load current mA 0.4 0.26 0.21
Stall torque mNm 575 572 575
Stall current mA 126.32 83.72 42.48
Nominal torque mNm 14 14 14
Nominal speed rpm 48750 48750 48750
Nominal current mA 3.55 2.35 1.78
Back-EMF constant mV/rpm 0.478 0.718 0.957
Torque constant mNm/A 4.569 6.854 9.137
Encoder 　 　 　 　
Number of channels 2 3 　
Counts per turn 16,32,64,256,512.1024 16,32,64,256,512.1024 　
Supply voltage 5.0 （5.0） 5.0 （5.0） 　
Max. speed 100000 100000 　
Phase shift 90±45 90±45 　 　 　
Output signal TTL TTL 　 　 　
22**NH...M...（2）
