Coreless Brushed Motor

10**M7...M...

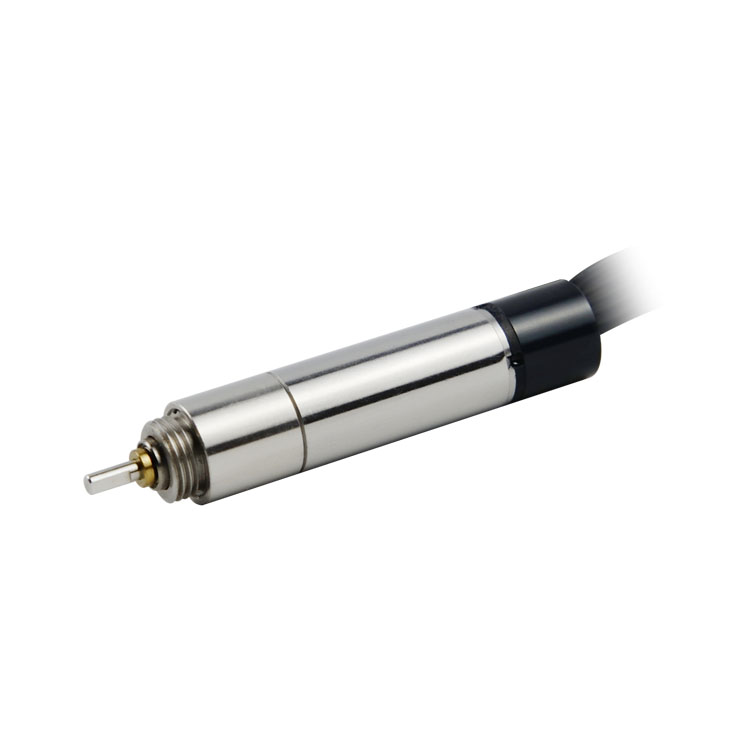

10mm dc coreless servo motor

Diameter: 10mm; Length: 36-51mm; Voltage: 6v, 12v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

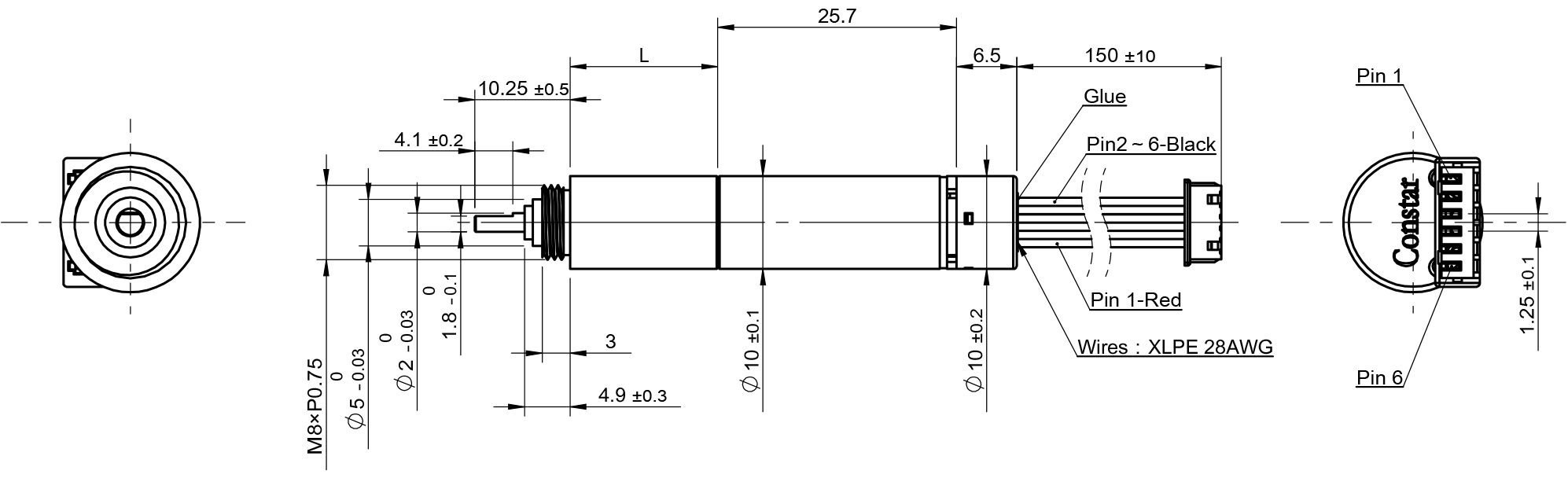

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 1026N7M03-125-6.0 1026N7M01-125-12.0 1026N7M04-130-12.0
Voltage V 6.0 12.0 12.0
Terminal resistance Ω 6 23.7 29.6
No-load speed rpm 11000 11000 12700
No-load current mA 30 15 15
Stall torque mNm 4.9 5.0 3.39
Stall current mA 1000 510 405
Nominal torque mNm 2.0 2.1 0.88
Nominal speed rpm 6500 6400 9400
Nominal current mA 430 220 120
Back-EMF constant mV/rpm 0.53 1.07 0.91
Torque constant mNm/A 5.05 10.19 8.69
Gearbox
Number of stages 1 2 3 4 5 6 6
Reduction ratio 4 16 64 256 1024 4096 4096
Max. rated torque 5 10 30 40 50 60 40
Max. momentary torque 15 30 90 120 150 180 120
Length（L） 9.7 12.8 15.9 19 22.1 25.2 23.1
Shell material Metal
Gear processing technology Metal CNC
Encoder 　 　 　 　
Number of channels 　 2 3 　
Counts per turn cpt 12,16,64,256,512 12,16,64,256,512 　
Supply voltage V 5.0 （5.0） 5.0 （5.0） 　
Max. speed rpm 30000 30000 　
Phase shift °e 90±45 90±45 　 　
Output signal 　 TTL TTL 　 　
Diameter mm 10 10 　 　
Length mm 6.5 6.5 　 　
