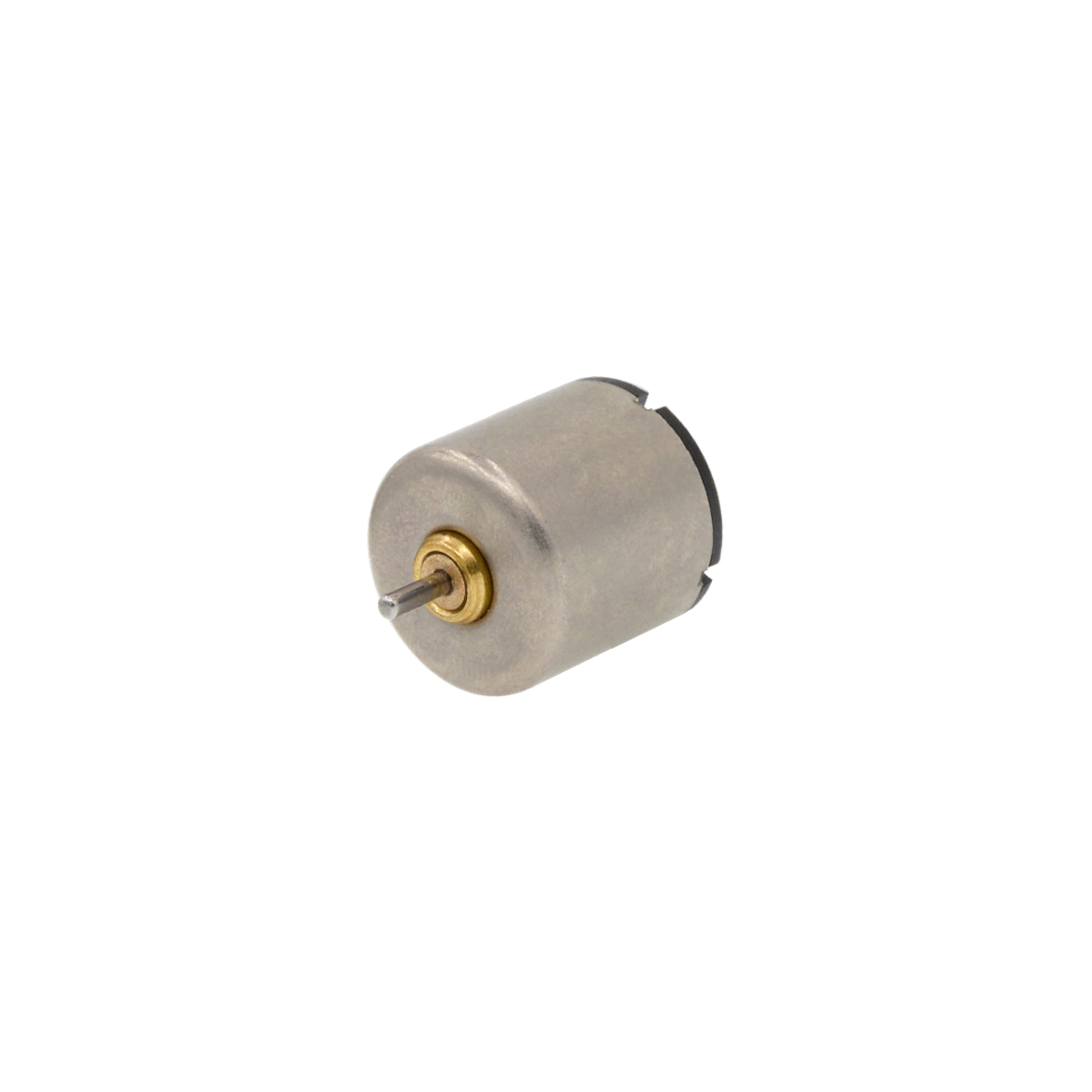

L1515N5M

15mm DC Coreless Motor Series

Width: 15mm; Length: 15.2mm; Voltage: 7.4v, 12.0v; No-load speed: 25000-32500rpm; Maximum output power: 4.5-8.3w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	12-325-7.4	13-250-12.0	02-260-7.4
Voltage	V	7.4	12.0	7.4
Terminal resistance	Ω	1.6	7.7	2.5
No-load speed	rpm	32500	25000	26000
No-load current	mA	60	35	70
Stall torque	mNm	9.8	6.8	7.7
Stall current	mA	4625	1558	2960
Load torque	mNm	1	1	1
Load speed	rpm	29180	21340	22610
Load current	mA	526	260	600
Max.output power	W	8.3	4.5	5.2
Max.efficiency	%	79	72	72
Back-EMF constant	mV/rpm	0.22	0.47	0.28
Torque constant	mNm/A	2.15	4.48	2.65
Speed/torque gradient	rpm/mNm	3320	3660	3390
Weight	g	12	12	12.1
Rotor inertia	gcm²	0.7	0.7	0.7
Operating temperature range	°C	-20～+85	-20～+85	-20～+85
