L8.523N5M

8.5mm DC Coreless Motor Series

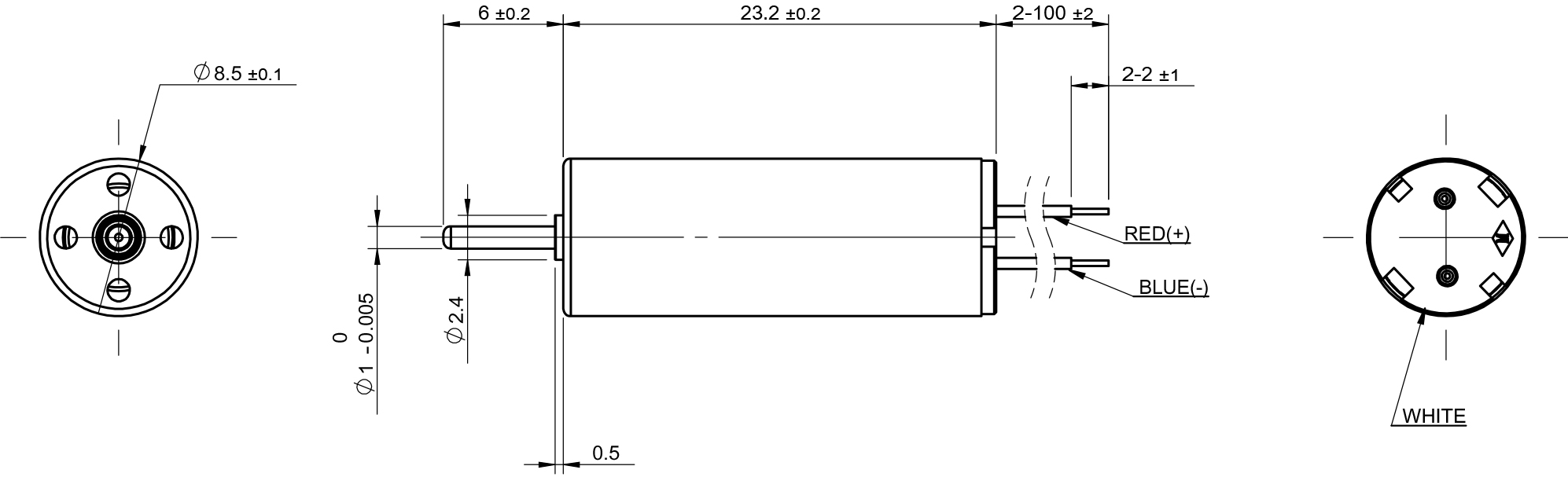

Width: 8.5mm; Length: 23.2mm; Voltage: 3.0v, 3.7v; No-load speed: 34400-46000rpm; Maximum output power: 2.58-6w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

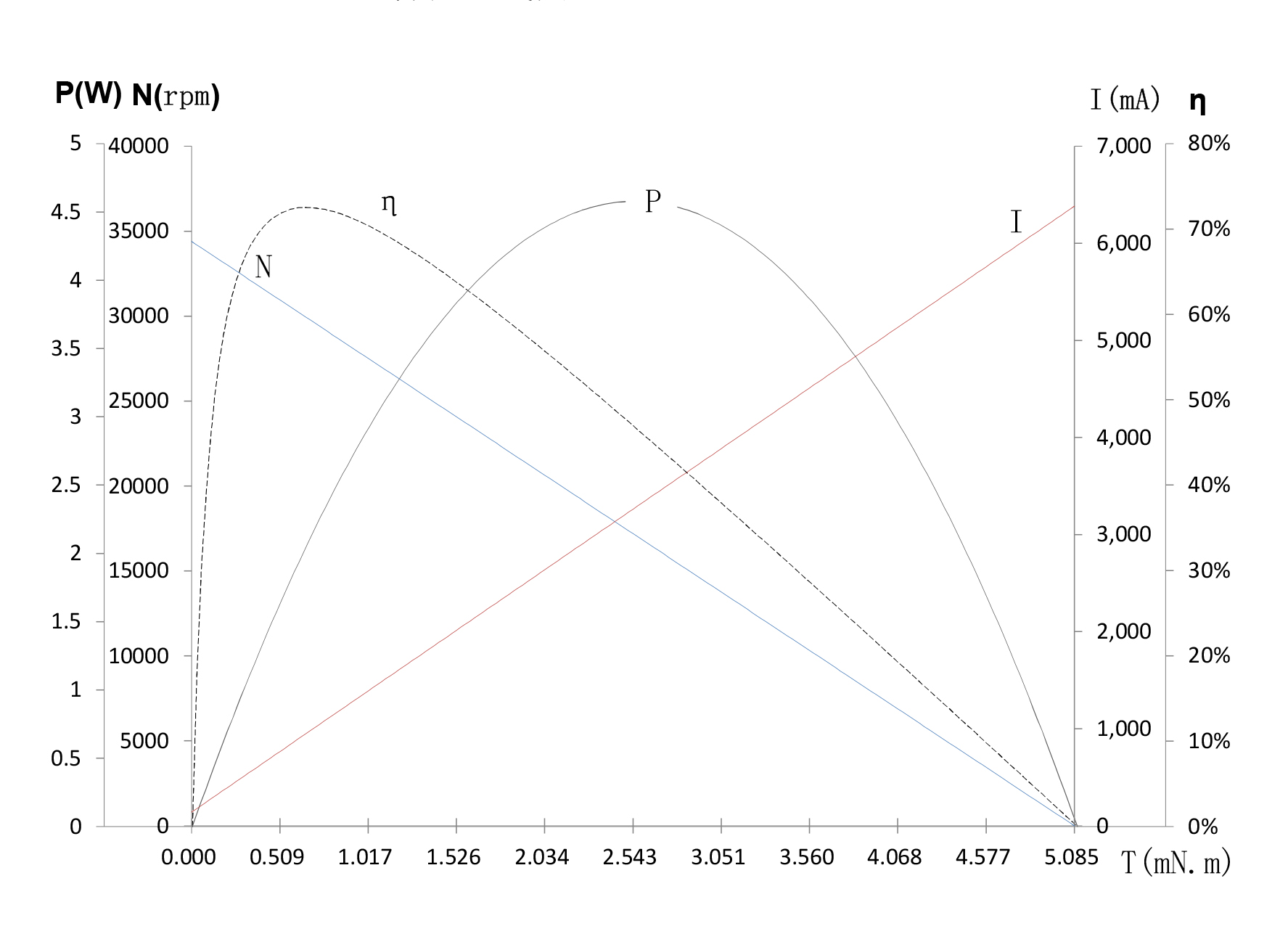

Nombre	Unidad	12-344-3.7	14-367-3.0	31-460-3.0
Voltage	V	3.0	3.0	3.0
Terminal resistance	Ω	0.47	0.45	0.36
No-load speed	rpm	34400	36700	46000
No-load current	mA	140	160	200
Stall torque	mNm	5.1	5	4.9
Stall current	mA	6380	6670	8330
Load torque	mNm	1	1	1
Load speed	rpm	27640	29300	36700
Load current	mA	1370	1470	1840
Max.output power	W	4.58	4.77	5.96
Max.efficiency	%	72.7	71.5	71.5
Back-EMF constant	mV/rpm	0.09	0.08	0.06
Torque constant	mNm/A	0.81	0.76	0.61
Speed/torque gradient	rpm/mNm	6765	7404	9304
Weight	g	5.6	5.6	5.7
Rotor inertia	gcm²	0.09	0.09	0.09
Operating temperature range	°C	-20～+120	-20～+120	-20～+120
