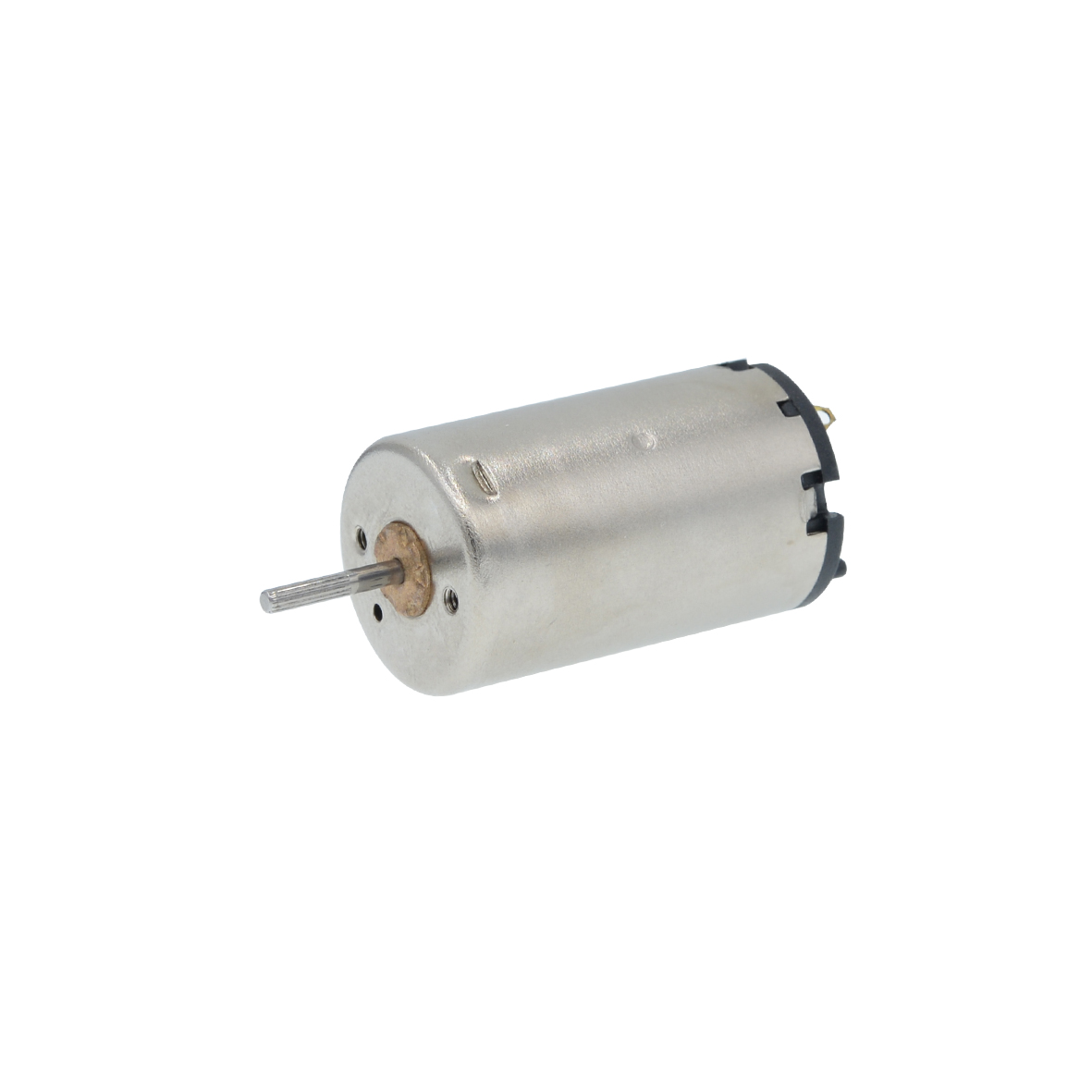

C1636R

16mm DC iron core motor

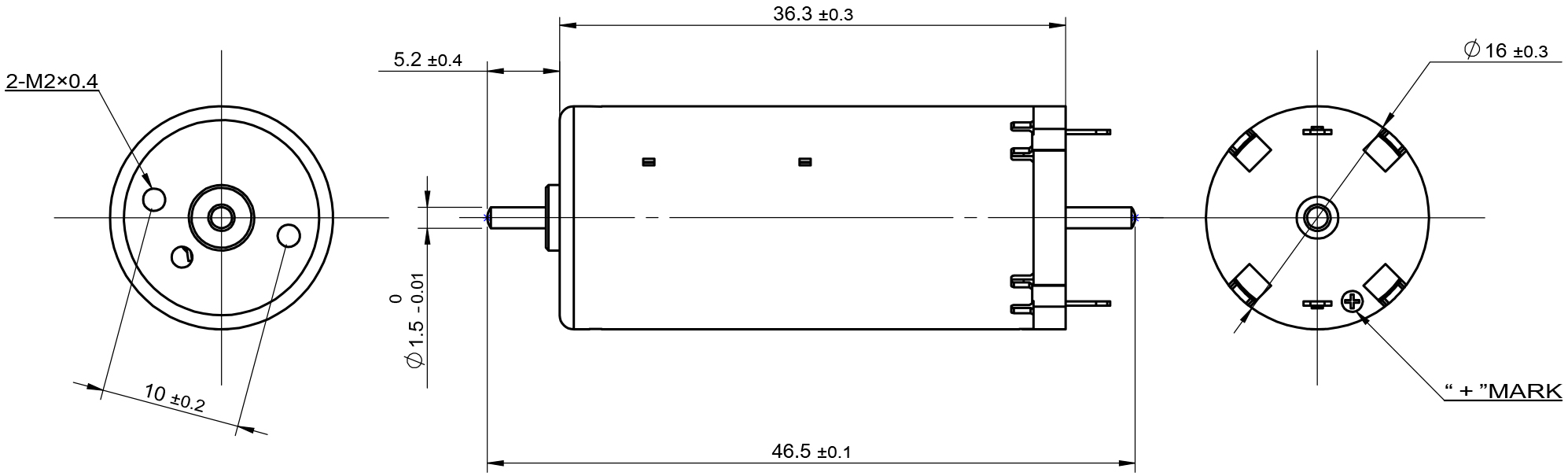

Diameter: 16mm; Length: 36.3mm; Voltage: 24v; No-load speed: 14526rpm;

Load torque: 1.96mNm; Maximum output power: 9.36W.

Application areas: small electronic products, portable tools, smart bicycles, etc.

Customizable options: specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote according to customer quantity and solution requirements

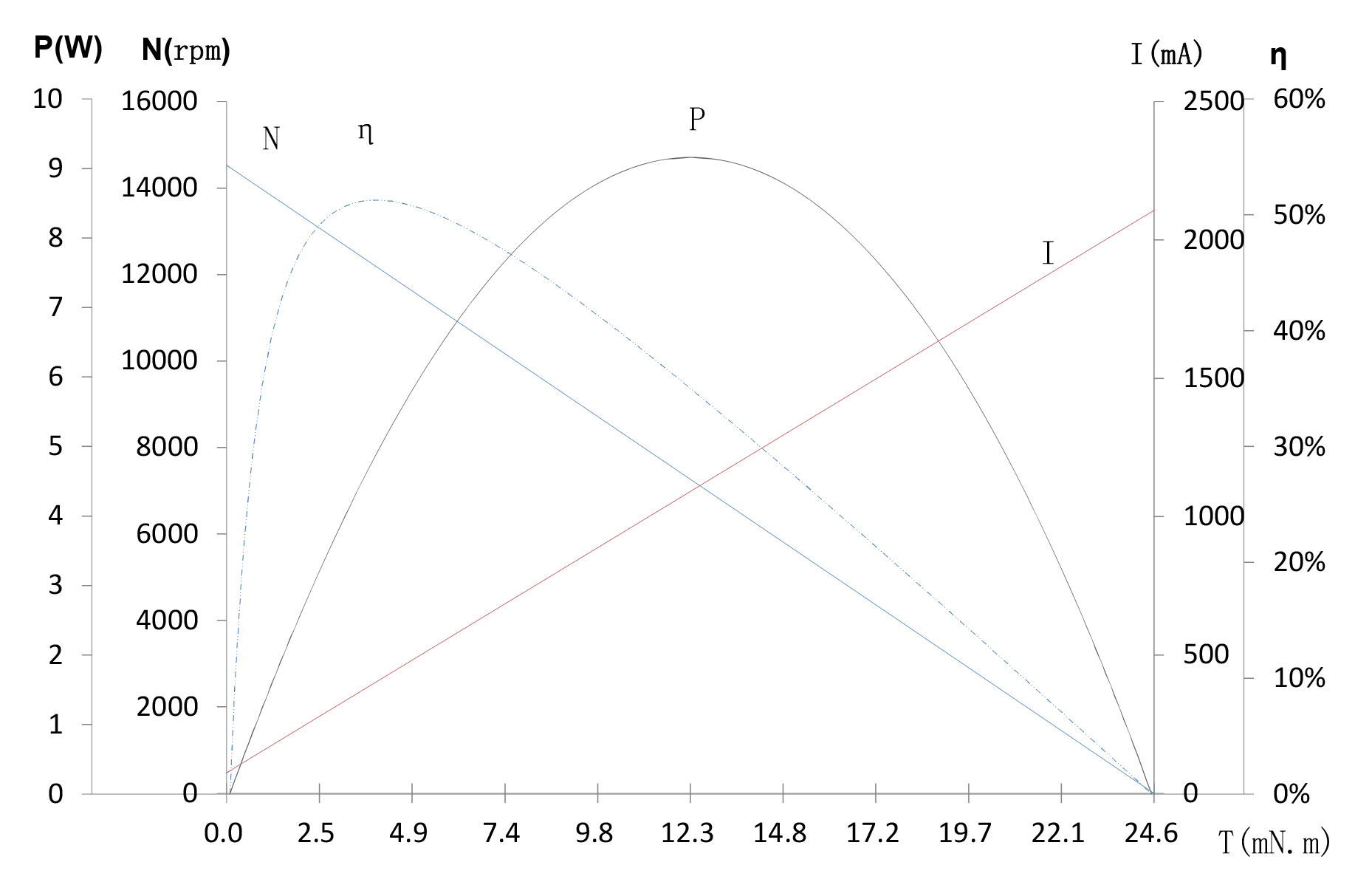

Nombre	Unidad	31-0111
Voltage	V	24.0
No-load speed	rpm	14526
No-load current	mA	75
Stall torque	mNm	24.6
Stall current	mA	2107
Load torque	mNm	1.96
Load speed	rpm	13368
Load current	mA	237
Max output power	W	9.36
Max efficiency	%	52.4
Torque constant	mNm/A	12.11
Speed/torque gradient	rpm/mNm	590
Weight	g	32
Varistor	Yes/No	Yes
Operating temperature range	°C	0～+60
