Planetary Gear Motor

BO61**...62*P...

61mm planetary gear reduction motor

Diameter: 61mm; Length: 79~96mm; Voltage: 24v, 36v, 48v;

Reduction ratio: 3.65~393; Gearbox: Metal planetary.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

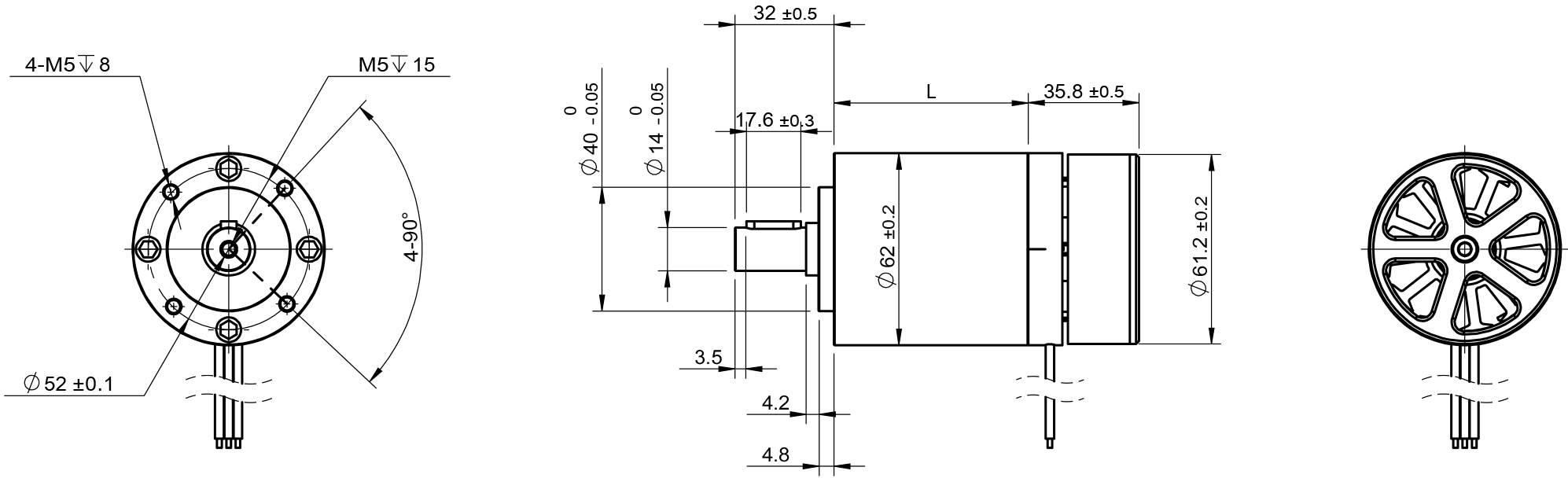

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad BO6133N2B01-50-48.0 BO6133N2B02-50-36.0 BO6133N2B03-50-24.0
Voltage V 48.0 36.0 24.0
Terminal resistance Ω 0.78 0.43 0.19
No-load speed rpm 5000 5000 5000
No-load current mA 0.35 0.5 0.7
Stall torque mNm 5577 5687 5725
Stall current mA 61.5 83.7 126.3
Nominal torque mNm 558 553 558
Nominal speed rpm 3700 3700 3700
Nominal current mA 5.5 7.3 11
Max.output power W 730 744 749
Max.efficiency % 85.4 85.1 85.6
Back-EMF constant mV/rpm 9.5 7.2 4.8
Torque constant mNm/A 91.2 68.3 45.6
Speed/torque gradient rpm/mNm 0.9 0.9 0.9
Rotor inertia gcm2 599 599 599
Weight g 230 230 230
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 3.65~8.63 28~58 67~393 　 　 　
Max. rated torque mNm 8000 25000 50000 　 　 　
Max. momentary torque mNm 16000 50000 100000 　 　 　
Length（L） mm 45.1 62.7 80.3 　 　 　
Shell material Metal
Gear processing technology Metal CNC
