Products Precision Servo Motor Coreless Brushless Motor 19**NH...M...
19**NH...M...
Coreless Brushless Motor

19**NH...M...

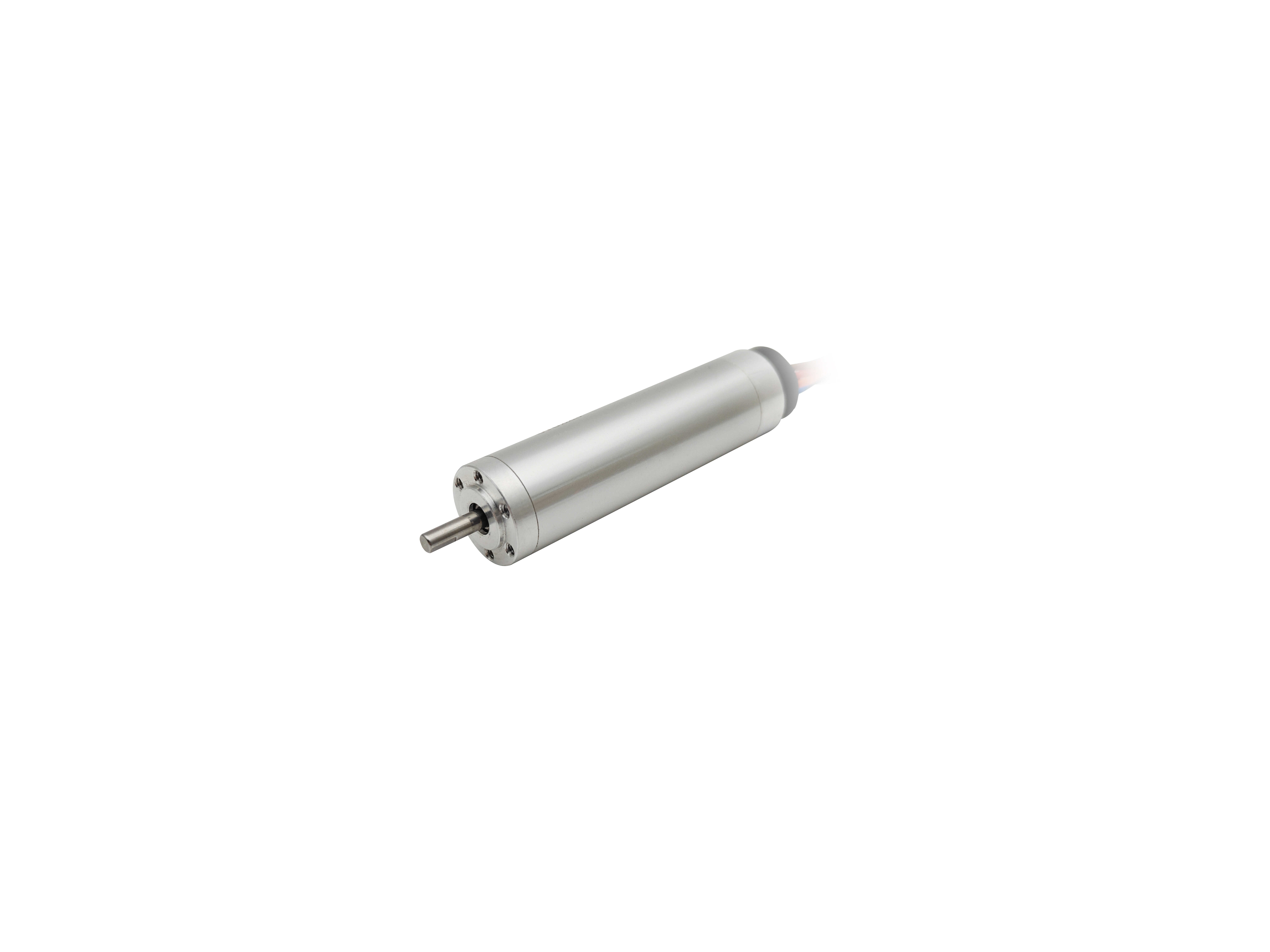

19mm coreless brushless servo motor

Diameter: 19mm; Voltage: 24v, 36v, 36v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

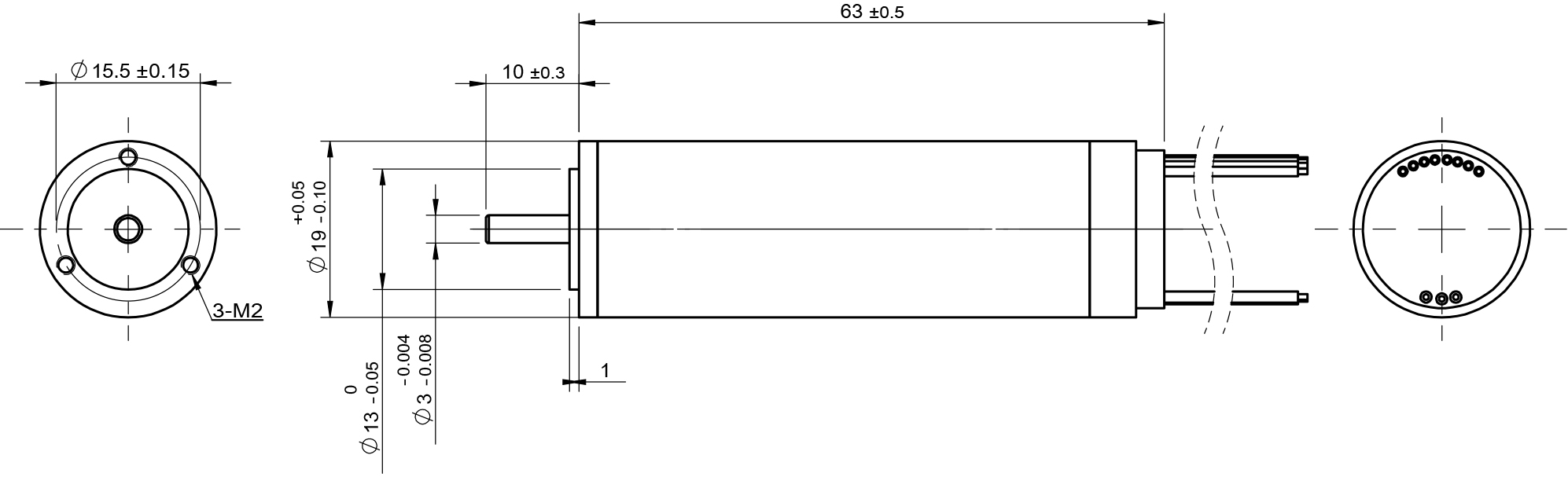

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 01-482-24.0 02-482-36.0 03-482-48.0
Voltage V 24.0 36.0 48.0
Terminal resistance Ω 0.36 0.71 1.41
No-load speed rpm 48200 48200 48200
No-load current mA 0.24 0.2 0.14
Stall torque mNm 314.7 358.8 321
Stall current mA 66.67 50.7 34.04
Nominal torque mNm 21 18 18
Nominal speed rpm 45070 45800 45550
Nominal current mA 4.56 2.73 2
Back-EMF constant mV/rpm 0.496 0.744 0.992
Torque constant mNm/A 4.738 7.104 9.471
Encoder 　 　 　 　
Number of channels 2 3 　
Counts per turn 16,32,64,256,512.1024 16,32,64,256,512.1024 　
Supply voltage 5.0 （5.0） 5.0 （5.0） 　
Max. speed 100000 100000 　
Phase shift 90±45 90±45 　 　 　
Output signal TTL TTL 　 　 　
