Coreless Brushed Motor

13**M7...M...

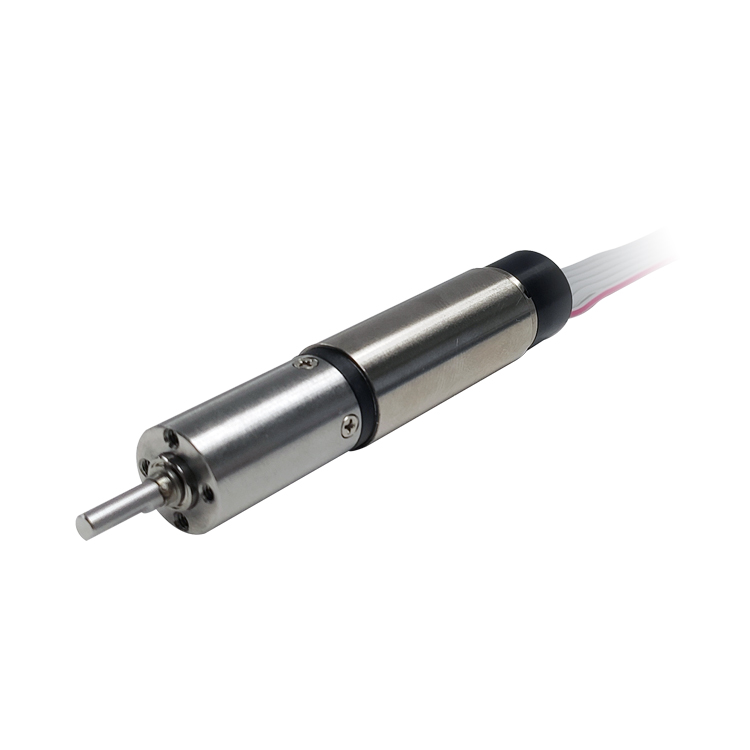

13mm 12v coreless servo motor

Diameter: 12mm; Length: 33-63mm; Voltage: 4.5v, 6v, 12v; Gearbox: Metal planetary gear;

Encoder: Magnetic encoder; Manufacturer: Shenzhen Micromotor Factory; Brand: Constar

Applications: medical equipment, intelligent prostheses, industrial robots, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox, encoder, driver

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

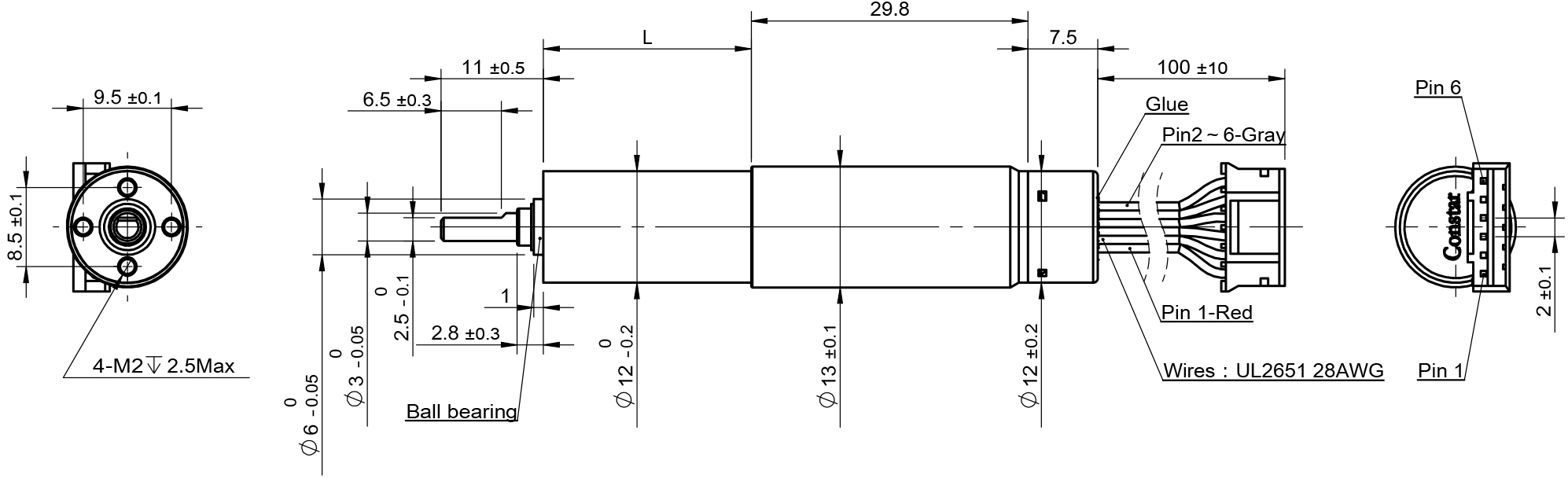

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 1331N7M08-100-12.0 1331N7M04-135-15.0 1331N7M07-90-24.0
Voltage V 12.0 15.0 24.0
Terminal resistance Ω 12.6 12.5 79
No-load speed rpm 10000 13500 9000
No-load current mA 10 20 10
Stall torque mNm 10.68 12.31 7.24
Stall current mA 950 1200 300
Nominal torque mNm 0.84 1.2 0.48
Nominal speed rpm 9200 12100 8400
Nominal current mA 80 140 50
Back-EMF constant mV/rpm 1.19 1.09 2.58
Torque constant mNm/A 11.33 10.43 24.63
Gearbox
Number of stages 1 2 3 4 5
Reduction ratio 4 16 64 256 1024
Max. rated torque 80 120 160 180 200
Max. momentary torque 240 360 480 540 600
Length（L） 14.4 18.4 22.4 26.4 30.4
Shell material Metal
Gear processing technology Metal CNC
Encoder 　 　 　 　
Number of channels 　 2 3 　
Counts per turn cpt 16,32,64,256,512 16,32,64,256,512 　
Supply voltage V 5.0 （5.0） 5.0 （5.0） 　
Max. speed rpm 30000 30000 　
Phase shift °e 90±45 90±45 　 　
Output signal 　 TTL TTL 　 　
Diameter mm 12 12 　 　
Length mm 7.5 7.5 　 　
