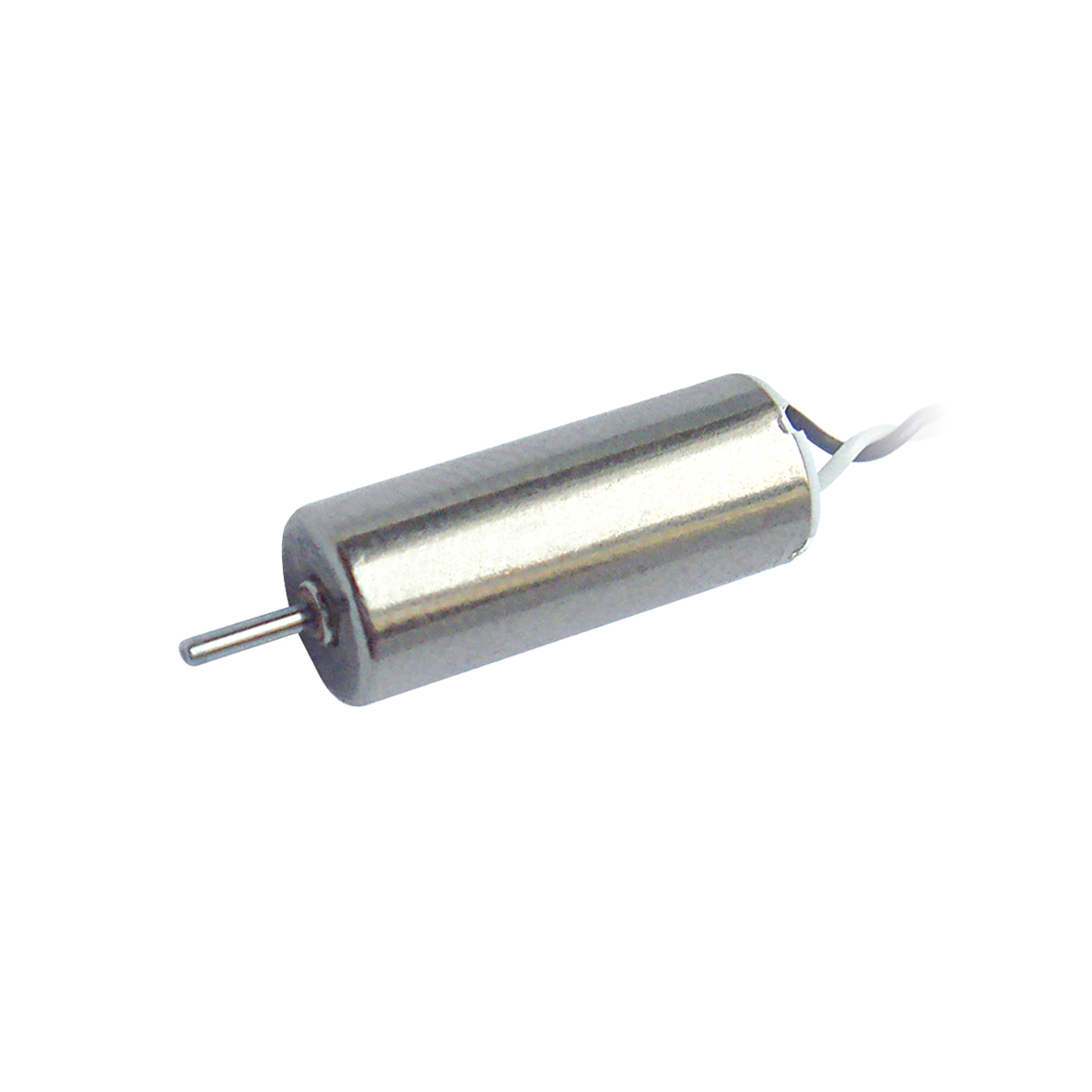

L0615N5M

6mm DC Coreless Motor Series

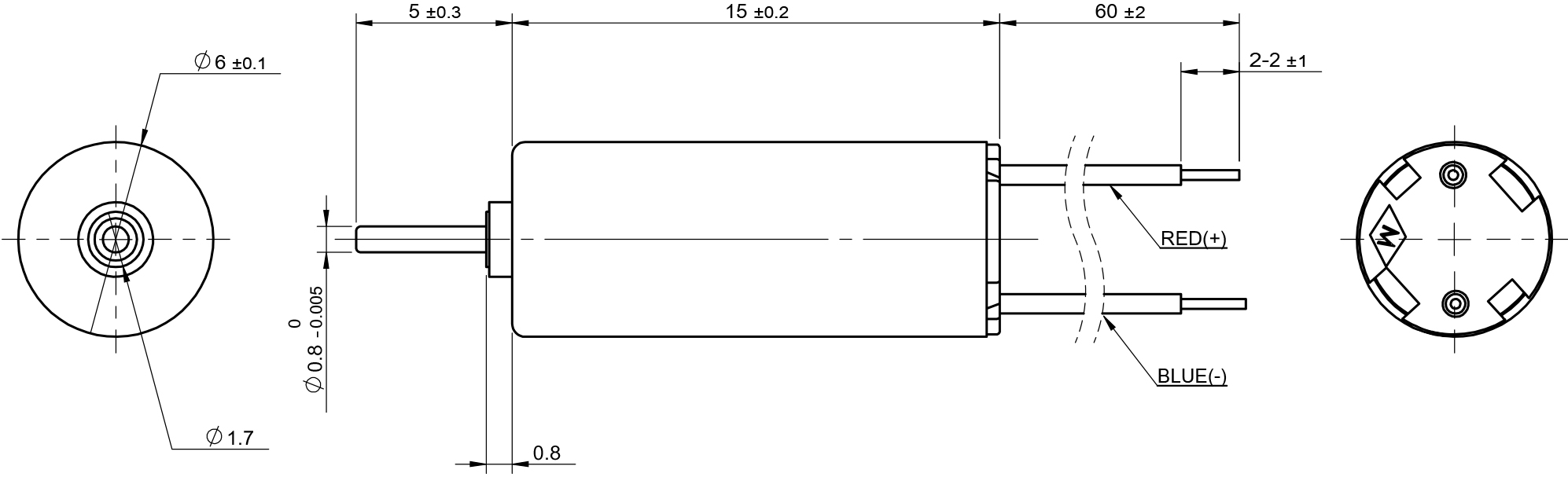

Width: 6mm; Length: 15mm; Voltage: 2.5-3.4v; No-load speed: 36000-43050rpm; Maximum output power: 1-1.1w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

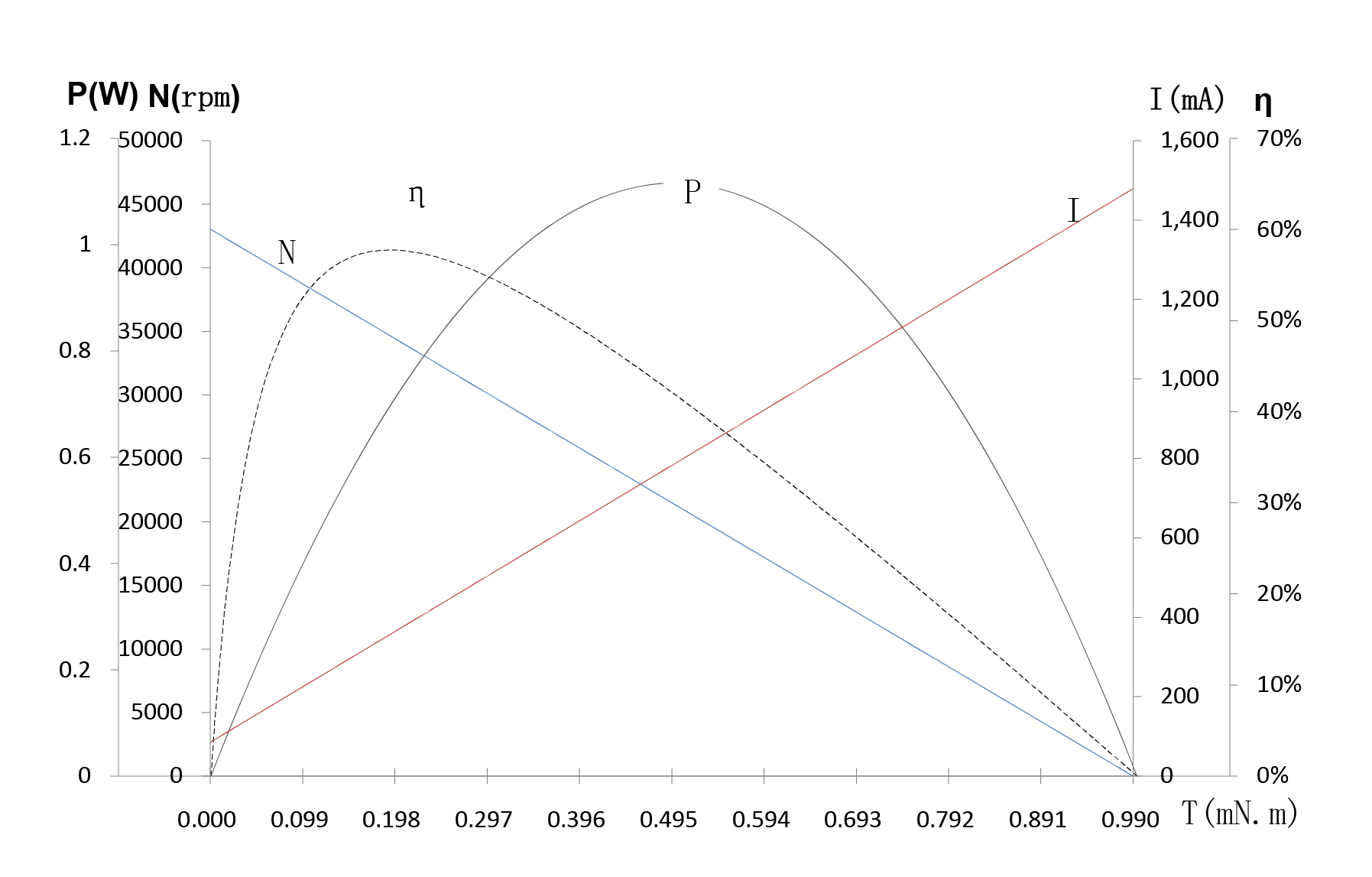

Nombre	Unidad	29-430-3.4	35-387-2.5	49-360-2.5
Voltage	V	3.4	2.5	2.5
Terminal resistance	Ω	2.3	1.45	1.4
No-load speed	rpm	43050	38700	36000
No-load current	mA	85	80	75
Stall torque	mNm	1	1	1.1
Stall current	mA	1478	1724	1786
Load torque	mNm	0.15	0.15	0.15
Load speed	rpm	36530	32700	31030
Load current	mA	300	340	310
Max.output power	W	1.1	1	1
Max.efficiency	%	57.8	61.6	63.3
Back-EMF constant	mV/rpm	0.07	0.06	0.07
Torque constant	mNm/A	0.71	0.59	0.64
Speed/torque gradient	rpm/mNm	43485	40021	33119
Weight	g	1.8	1.8	1.8
Rotor inertia	gcm²	0.016	0.016	0.016
Operating temperature range	°C	-20～+120	-20～+120	-20～+120
