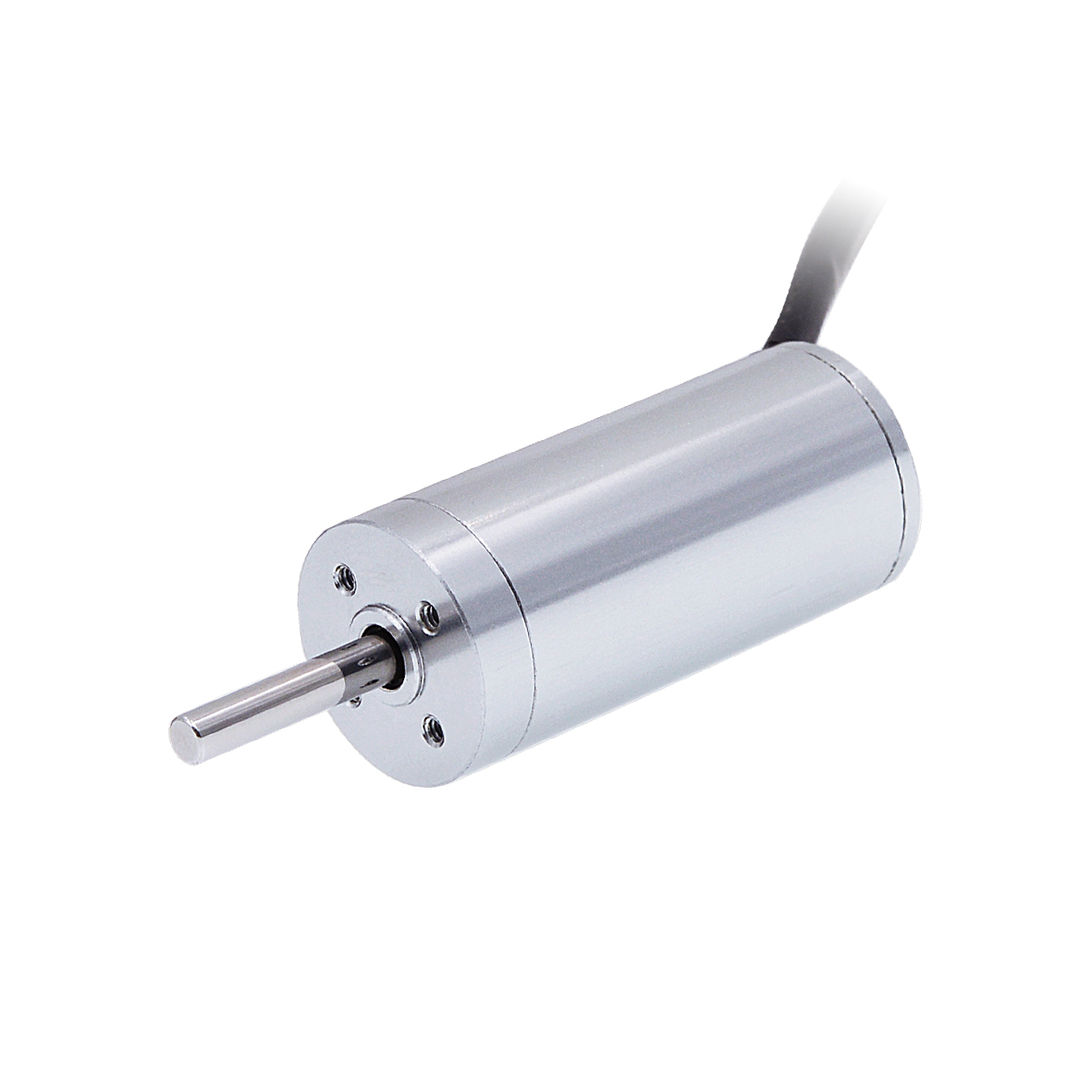

B1635N2B

16mm coreless Brushless Motor
Diameter: 16mm; Length: 35.7mm; Voltage: 12.0v; Max output power: 100W; Speed: 45000rpm; Rated torque: 1.5mNm.

Application : Medical, automation equipment, precision instruments, and other precision drive fields.
Customizable : Specifications, wire length, shaft length, performance, bearings, gearbox, encoder, driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

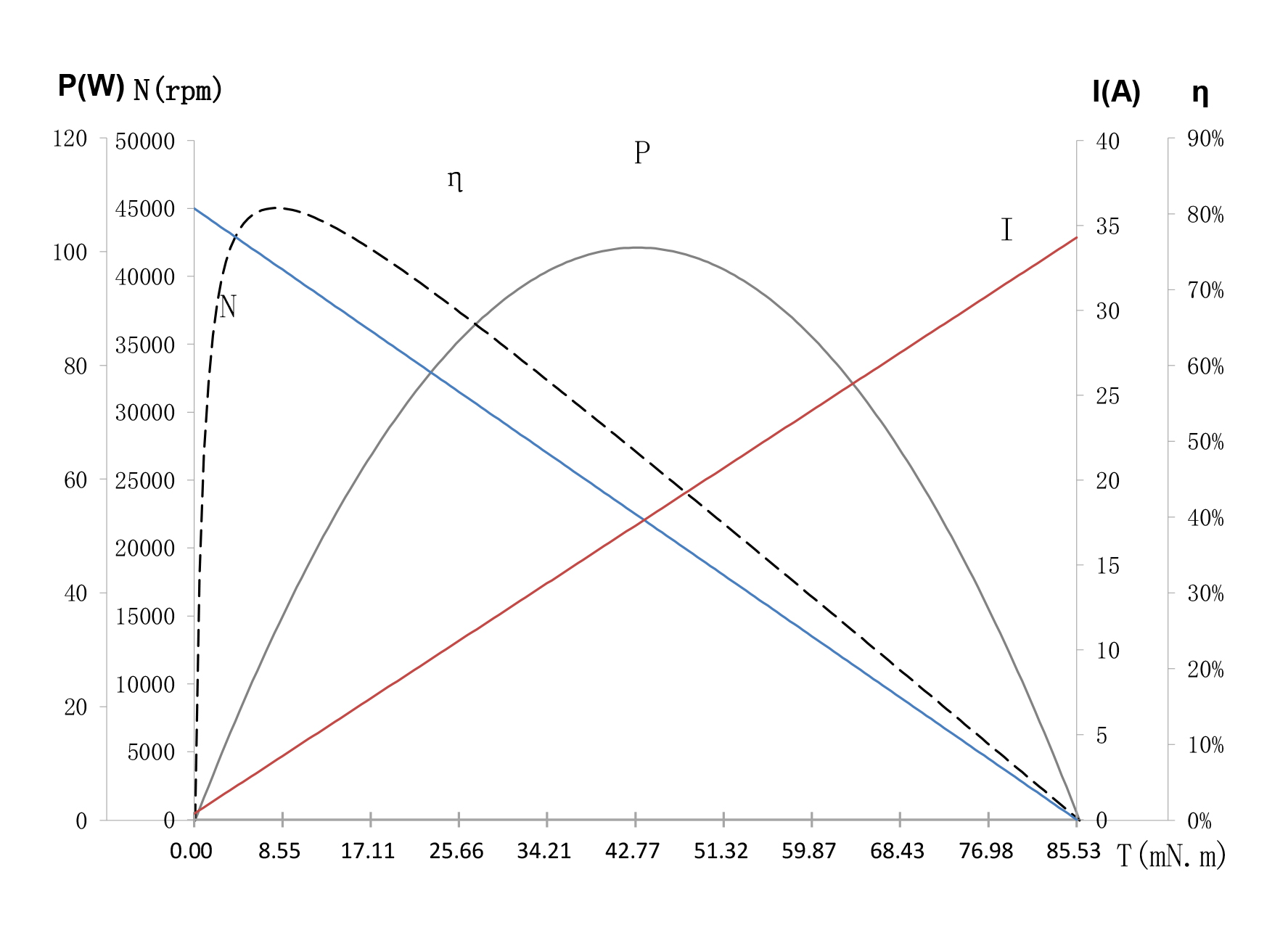

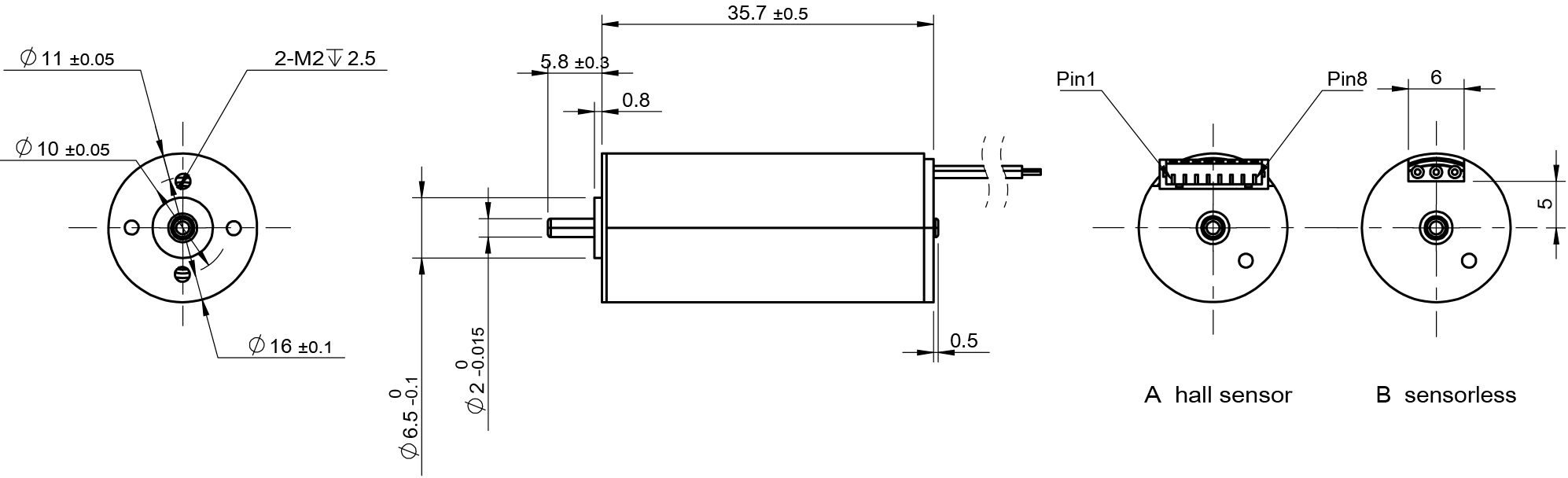

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-450-12.0
Voltage	V	12.0
Terminal resistance	Ω	0.35
No-load speed	rpm	45000
No-load current	A	0.35
Stall torque	mNm	85
Stall current	A	34
Nominal torque	mNm	1.5
Nominal speed	rpm	43800
Nominal current	A	0.96
Max.output power	W	100
Max.efficiency	%	81
Back-EMF constant	mV/rpm	0.3
Torque constant	mNm/A	2.5
KV Value	rpm/V	3750
Speed/torque gradient	rpm/mNm	530
Rotor inertia	gcm2	1.5
Weight	g	40
