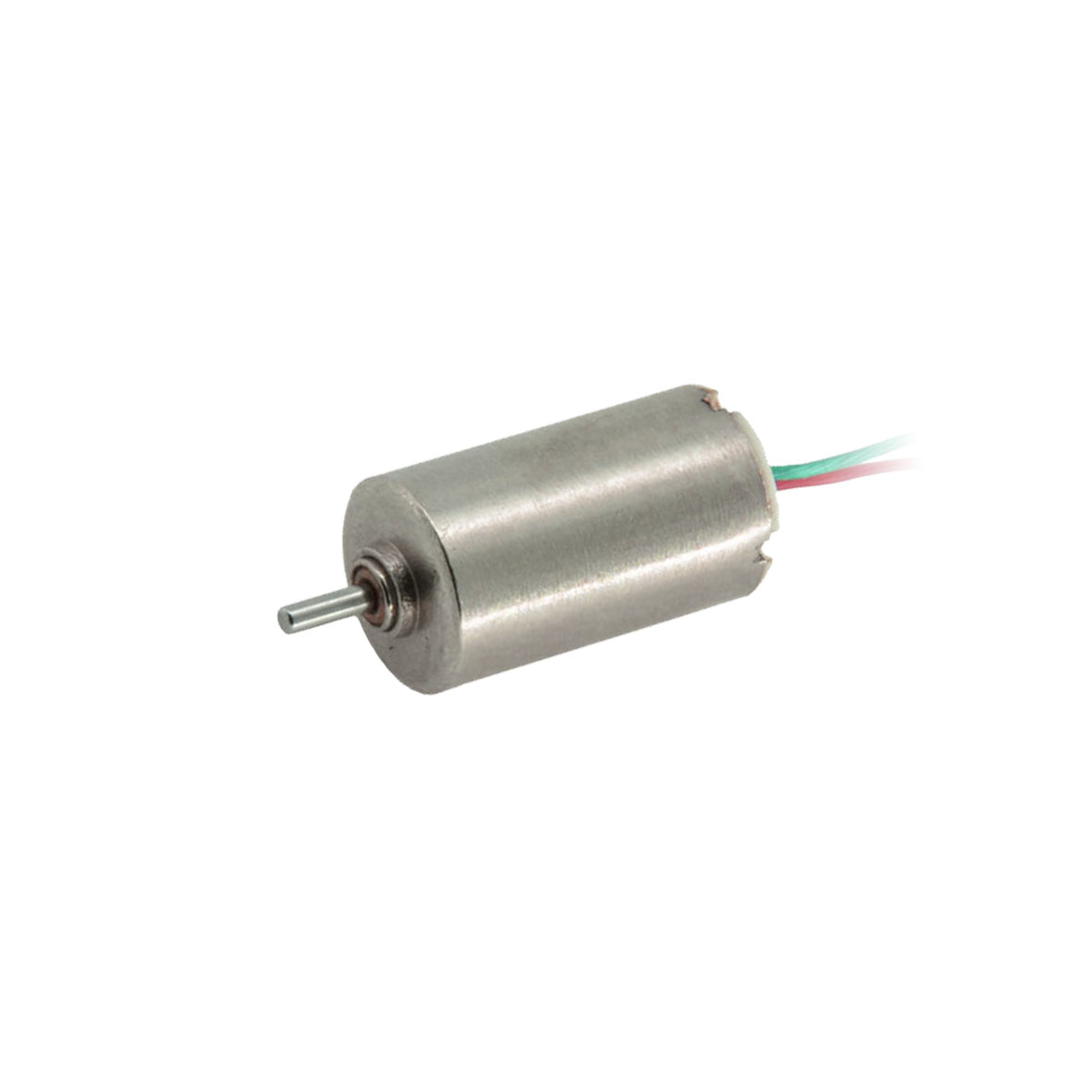

L0610N5M

6mm DC Coreless Motor Series

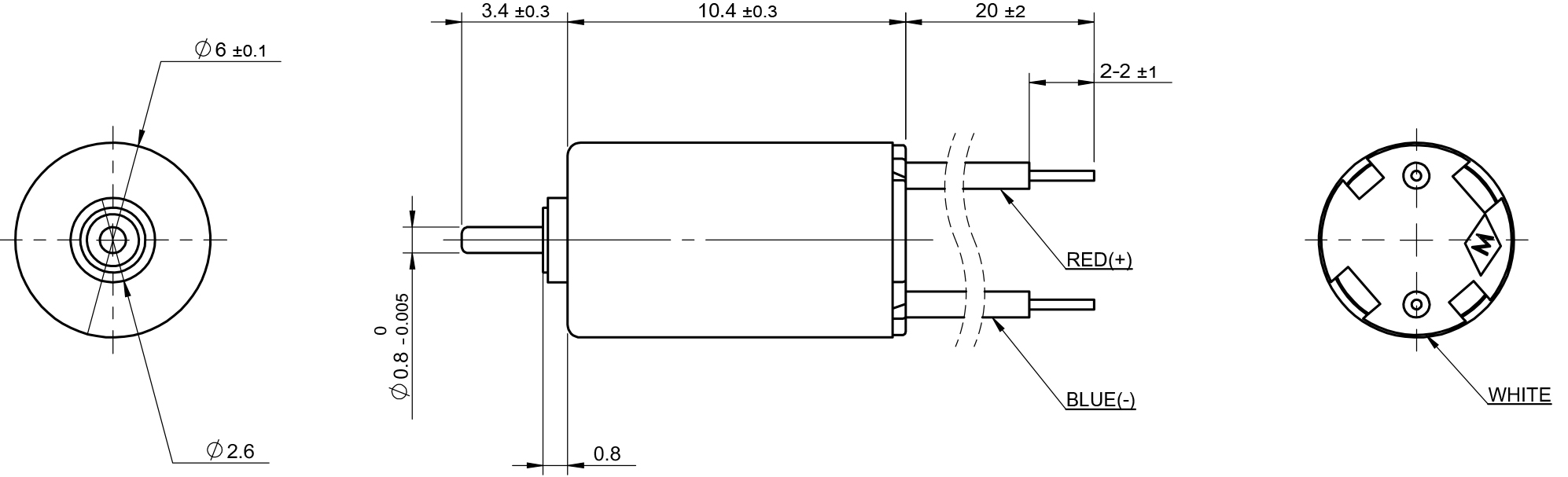

Width: 6mm; Length: 10.4mm; Voltage: 3.2-5.0v; No-load speed: 50000-66500rpm; Maximum output power: 0.54-0.9w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	11-585-5.0	22-665-3.4	05-550-3.2
Voltage	V	5.0	3.4	3.2
Terminal resistance	Ω	7.1	2.7	3.8
No-load speed	rpm	58500	66500	50000
No-load current	mA	45	100	85
Stall torque	mNm	0.5	0.52	0.42
Stall current	mA	704	1259	842
Load torque	mNm	0.05	0.05	0.05
Load speed	rpm	52700	60120	43990
Load current	mA	110	210	180
Max.output power	W	0.77	0.9	0.54
Max.efficiency	%	55.9	51.6	46.6
Back-EMF constant	mV/rpm	0.08	0.05	0.06
Torque constant	mNm/A	0.76	0.45	0.55
Speed/torque gradient	rpm/mNm	116071	127639	120192
Weight	g	1.2	1.2	1.3
Rotor inertia	gcm²	0.01	0.01	0.01
Operating temperature range	°C	-20～+80	-20～+65	-20～+65
