L1620N5M

16mm DC Coreless Motor Series

Width: 16mm; Length: 19.6mm; Voltage: 5.0v; No-load speed: 8000-9500rpm; Maximum output power: 1.4-1.6w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

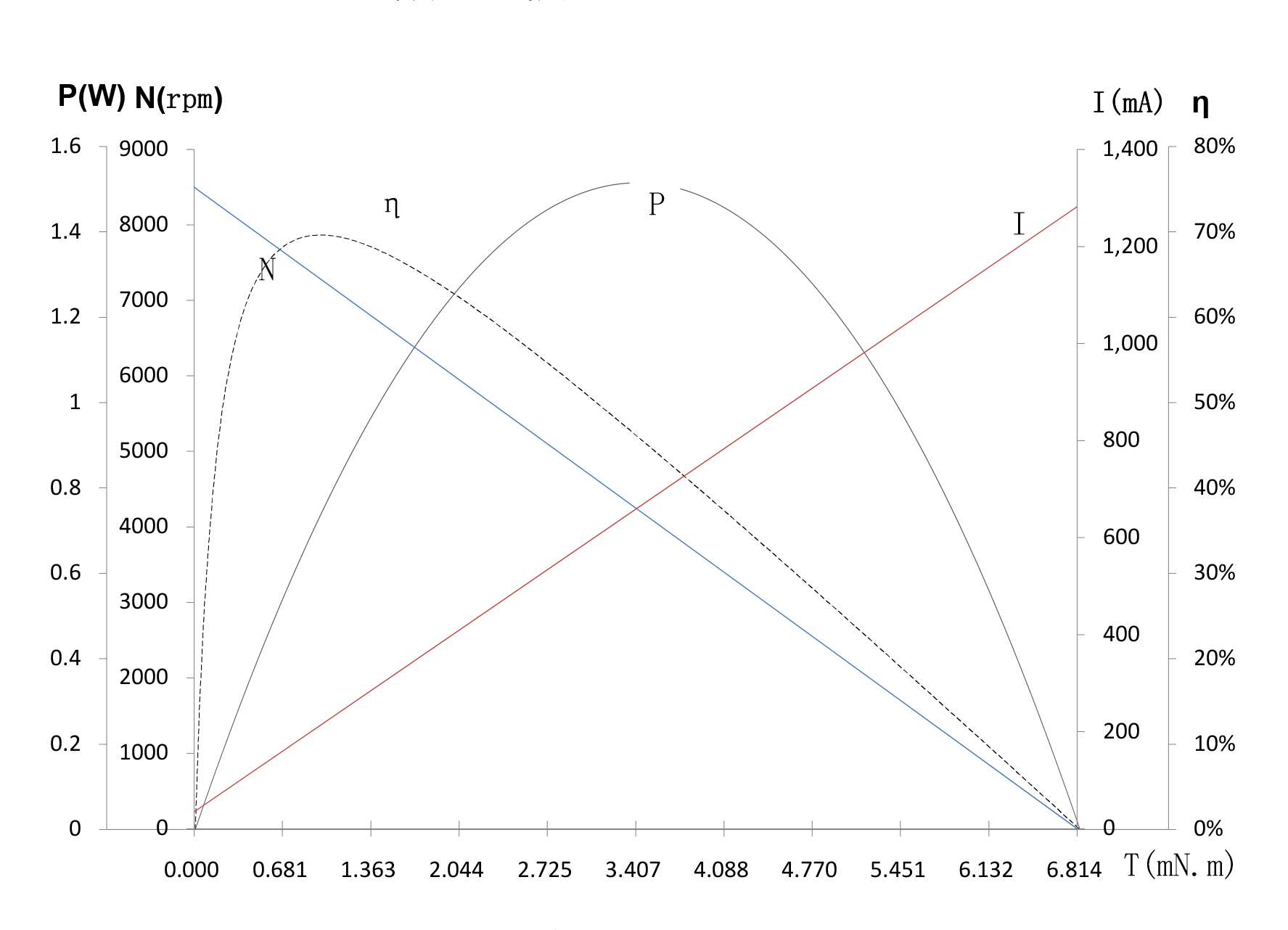

Nombre	Unidad	33-85-5.0	20-95-5.0	29-80-5.0
Voltage	V	5.0	5.0	5.0
Terminal resistance	Ω	3.9	4.1	3.7
No-load speed	rpm	8550	9500	8000
No-load current	mA	35	35	25
Stall torque	mNm	6.8	5.78	7.8
Stall current	mA	1280	1220	1350
Load torque	mNm	1	1	1
Load speed	rpm	7290	7860	6970
Load current	mA	220	240	200
Max.output power	W	1.5	1.4	1.6
Max.efficiency	%	70	69	75
Back-EMF constant	mV/rpm	0.6	0.5	0.6
Torque constant	mNm/A	5.4	4.9	5.9
Speed/torque gradient	rpm/mNm	1260	1640	1030
Weight	g	15.8	15.8	15.8
Rotor inertia	gcm²	0.45	0.45	0.45
Operating temperature range	°C	-20～+85	-20～+85	-20～+85
