Planetary Gear Motor

30**...28*P...

30mm planetary gear reduction motor

Diameter: 30mm; Length: 63~101mm; Voltage: 9v, 24v; Reduction ratio: 4~939;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

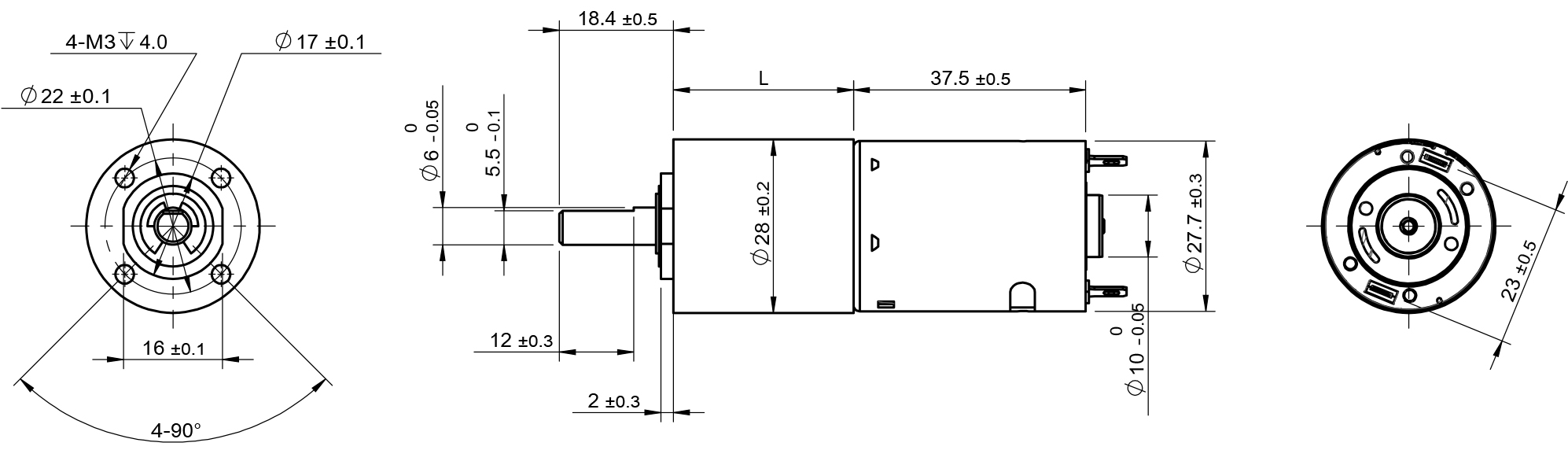

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 3068N9C2B01-85-24.0 B2950NH2B01-130-24.0 C2838R-41-9.0
Voltage V 24.0 24.0 9.0
Terminal resistance Ω 0.9 1.32 1.1
No-load speed rpm 8500 13000 13200
No-load current mA 150 300 450
Stall torque mNm 711 310 55
Stall current mA 26670 18180 8170
Nominal torque mNm 60 28 8.33
Nominal speed rpm 7780 11830 11200
Nominal current mA 2390 1910 1450
Max.output power W 158.21 105.52 19.03
Max.efficiency % 86 76 75
Back-EMF constant mV/rpm 2.81 1.82 0.68
Torque constant mNm/A 26.81 17.34 7.94
Speed/torque gradient rpm/mNm 11.95 41.93 240
Rotor inertia gcm2 33 5 —
Weight g 250 140 70
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 4,5 14~35 51~139 246~939 　 　
Max. rated torque mNm 200 300 600 1000 　 　
Max. momentary torque mNm 600 900 1800 3000 　 　
Length（L） mm 24.5 30.9 37.3 43.7 　 　
Shell material Metal
Gear processing technology Powder metallurgy
