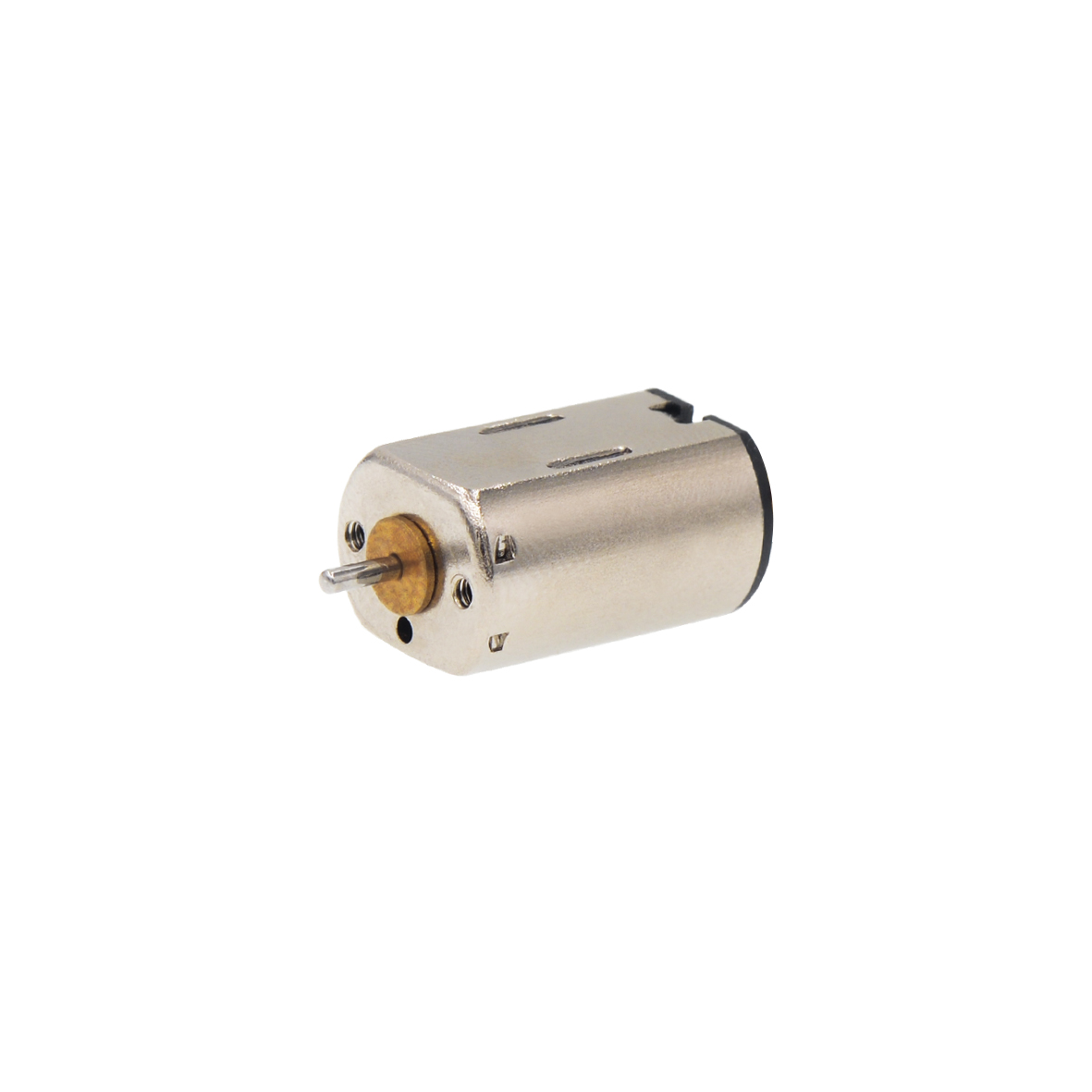

C1015F
Precious Metal Brush

C1015F

10mm DC Coreless Motor Series

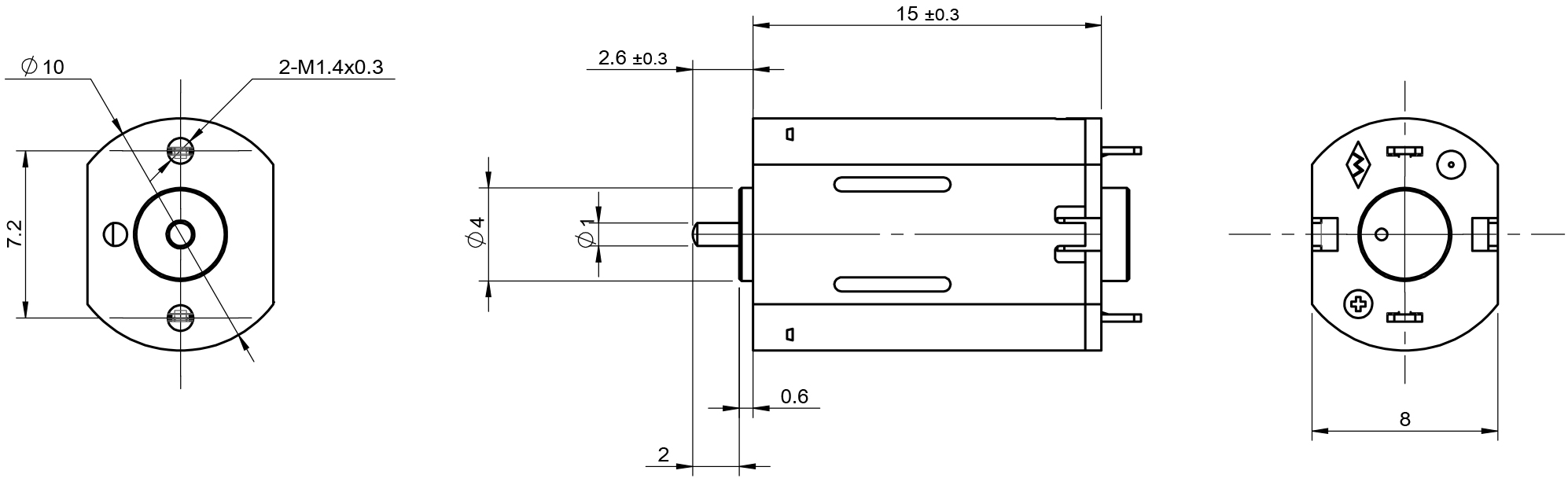

Width: 10mm; Length: 15mm; Voltage: 3.0v, 6.0v; No-load speed: 5500-20500rpm; Maximum output power: 0.06-0.7w.

Applications: security equipment, small electronic products, remote control model aircraft, personal care products, portable electric tools,  etc.

Customizable options: Specifications, lead length, shaft length, performance, bearings, gearboxes, encoders, drives

Unit price: Quote according to customer quantity and solution requirements

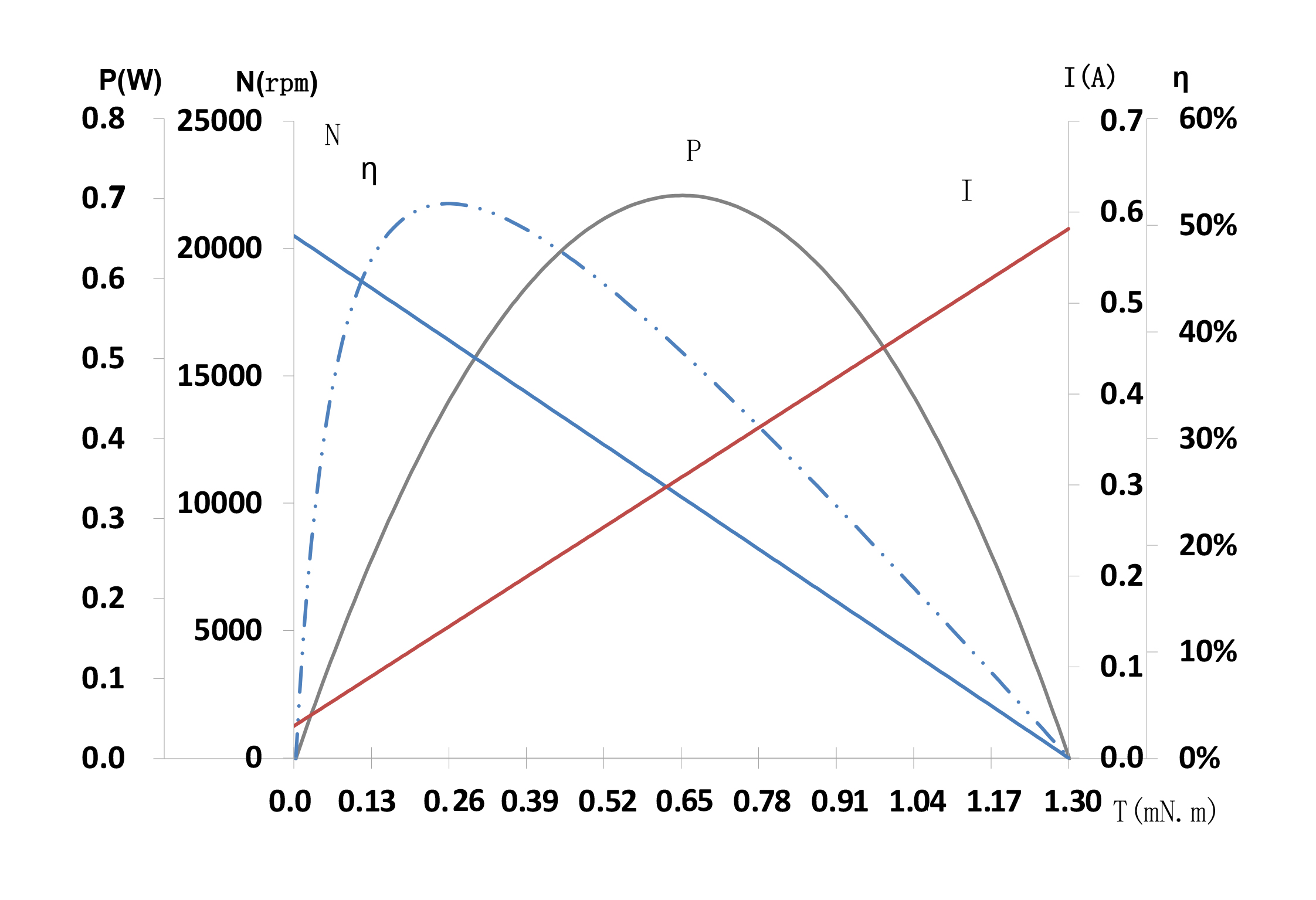

Nombre Unidad 33-0169 33-0107 33-0051
Voltage V 3.0 6.0 3.0
Terminal resistance Ω 4.5 10 35
No-load speed rpm 14700 20500 5500
No-load current mA 50 35 15
Stall torque mNm 1 1.3 0.4
Stall current mA 680 582 91
Load torque mNm 0.098 0.098 0.098
Load speed rpm 13300 19000 4200
Load current mA 110 75 33
Max.output power W 0.38 0.7 0.06
Max.efficiency % 45.8 51.6 42.7
Back-EMF constant mV/rpm 0.19 0.28 0.45
Torque constant mNm/A 1.56 2.38 5.25
Speed/torque gradient rpm/mNm 15000 15769 13750
Weight g 4 4.1 3.9
Varistor Yes/No Yes Yes Yes
Operating temperature range °C -20~+80 -20~+80 -20~+80
C1015F
