Planetary Gear Motor

24**...24*P...

24mm planetary gear reduction motor

Diameter: 24.4mm; Length: 46~80mm; Voltage: 6v, 6.8v, 24v; Reduction ratio: 5~3968;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

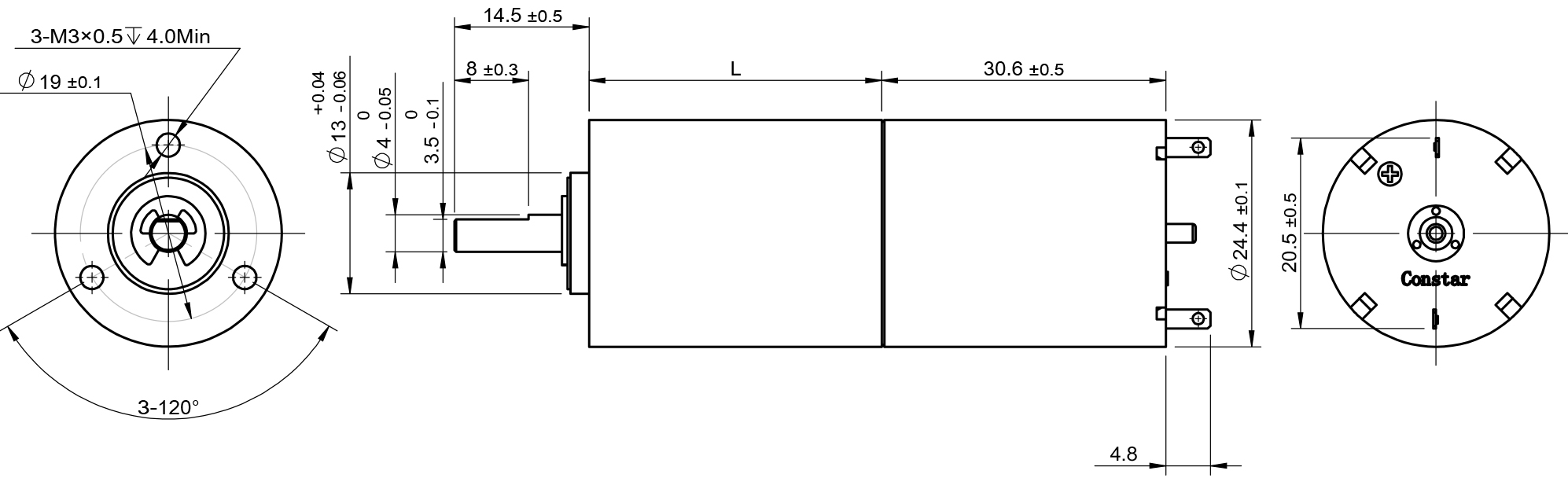

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 2433N5M2B01-76-4.5 B2040NH2B21-158-24.0 C2430R43-0010-12.0
Voltage V 4.5 24.0 12.0
Terminal resistance Ω 0.46 15 11
No-load speed rpm 7600 15800 6150
No-load current mA 0.03 0.08 0.035
Stall torque mNm 55 21 16.1
Stall current mA 9.78 1.6 9.78
Nominal torque mNm 10.0 4 1.96
Nominal speed rpm 6220 12800 5400
Nominal current mA 1.8 0.37 0.15
Max.output power W 10.9 8.67 2.59
Max.efficiency % 89 60 62.5
Back-EMF constant mV/rpm 0.6 1.44 1.89
Torque constant mNm/A 5.6 13.7 17.07
Speed/torque gradient rpm/mNm 140 754.3 382
Rotor inertia gcm2 2.2 2 —
Weight g 66 55 14.5
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 　 36 216 256 　 　
Max. rated torque mNm 　 500 1000 1500 　 　
Max. momentary torque mNm 　 1000 2000 3000 　 　
Length（L） mm 　 24.5 31.5 38.65 　 　
Shell material Metal
Gear processing technology Plastic injection
