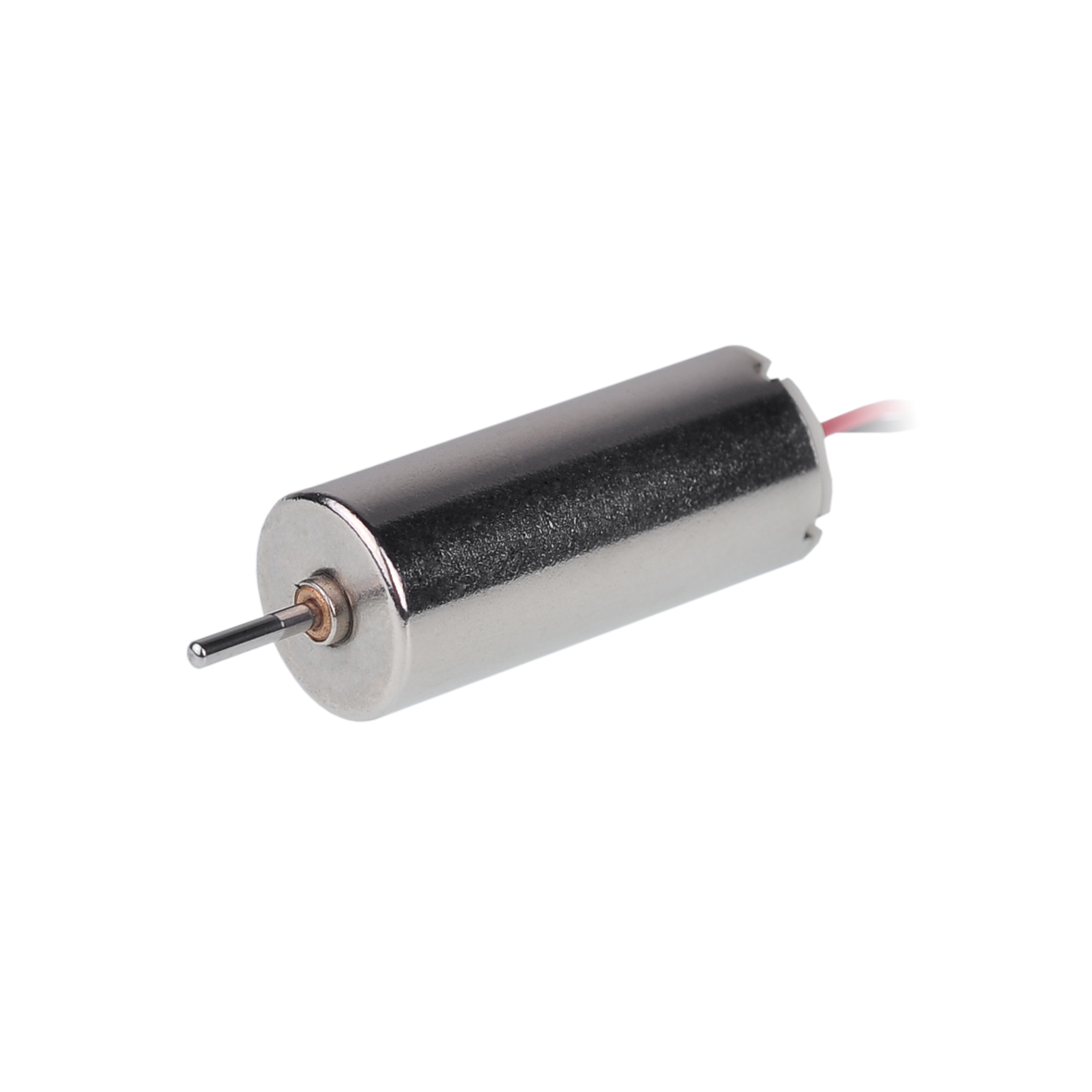

L0816N7M

8mm DC Coreless Motor Series

Width: 8mm; Length: 16.8mm; Voltage: 3.0v; No-load speed: 4500-6000rpm; Maximum output power: 0.1w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

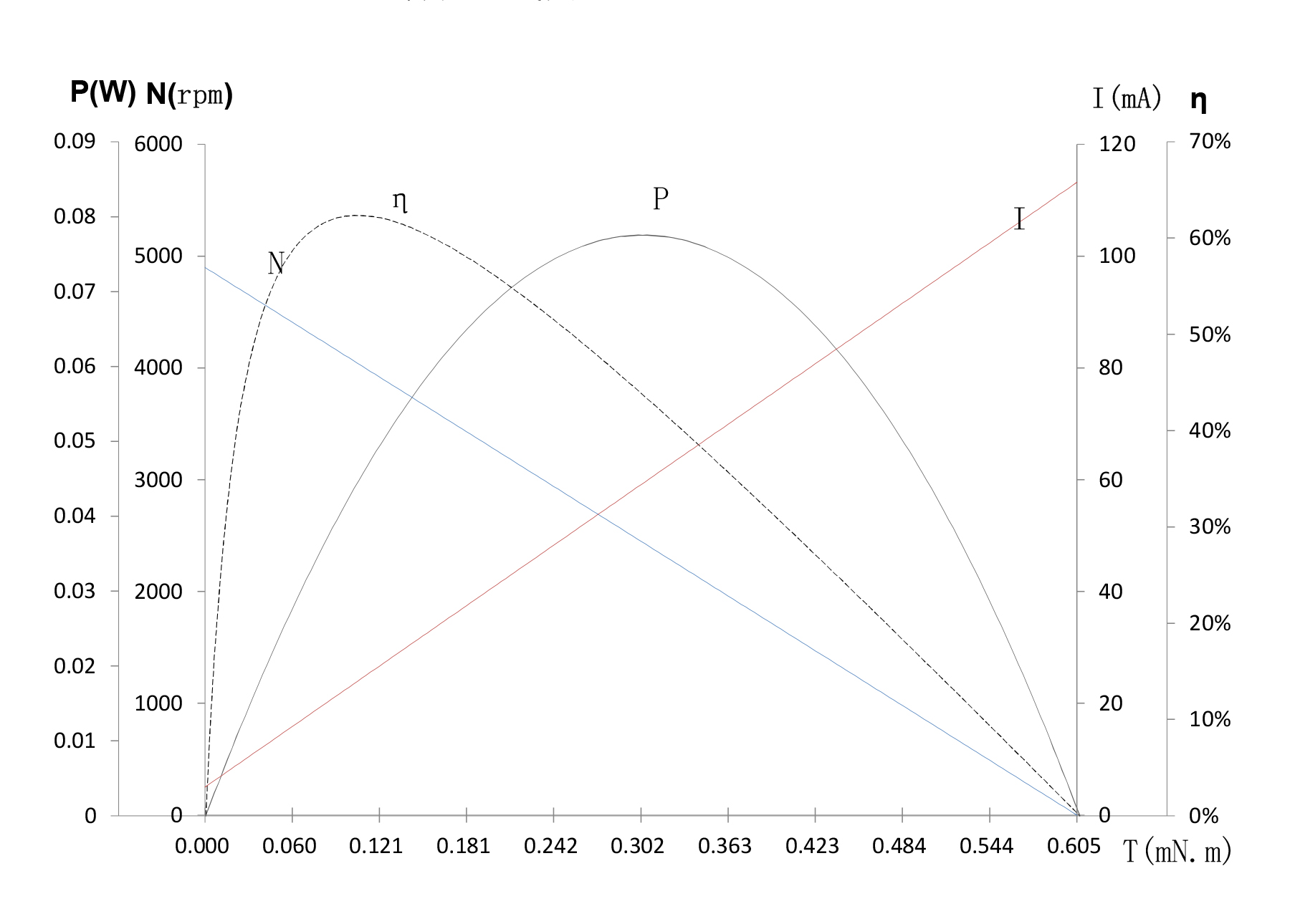

Nombre	Unidad	13-430-6.0	06-243-3.4	35-262-5.5
Voltage	V	3.0	3.0	3.0
Terminal resistance	Ω	26.5	36	21.5
No-load speed	rpm	4900	4500	6000
No-load current	mA	5	5	8
Stall torque	mNm	0.6	0.47	0.6
Stall current	mA	113	83	140
Load torque	mNm	0.3	0.3	0.3
Load speed	rpm	2450	1630	3000
Load current	mA	60	60	70
Max.output power	W	0.1	0.1	0.1
Max.efficiency	%	62	57.2	58.7
Back-EMF constant	mV/rpm	0.59	0.63	0.47
Torque constant	mNm/A	5.59	5.98	4.5
Speed/torque gradient	rpm/mNm	8167	9574	10000
Weight	g	3.7	3.7	3.7
Rotor inertia	gcm²	0.01	0.01	0.01
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
