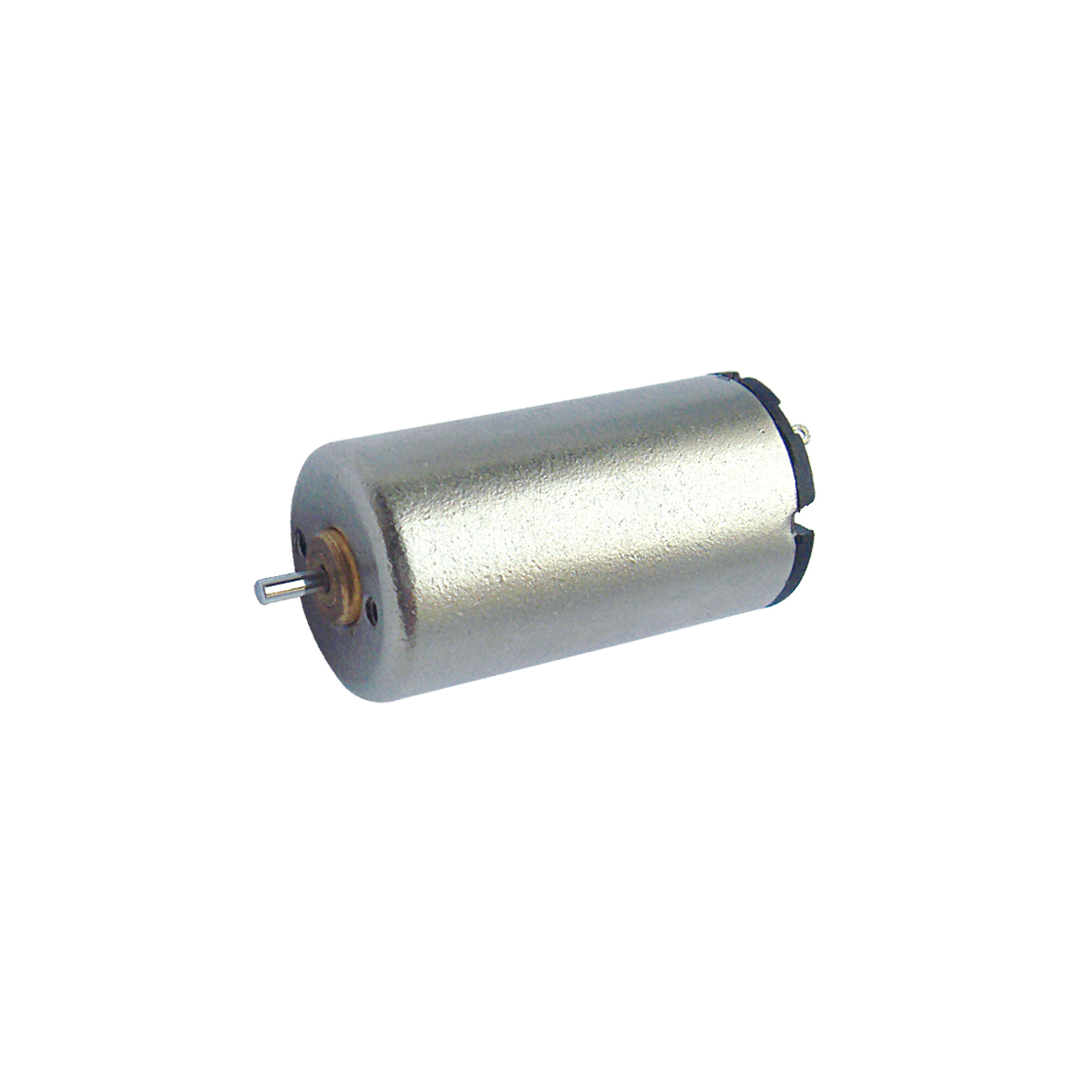

L1630N5M

16mm DC Coreless Motor Series

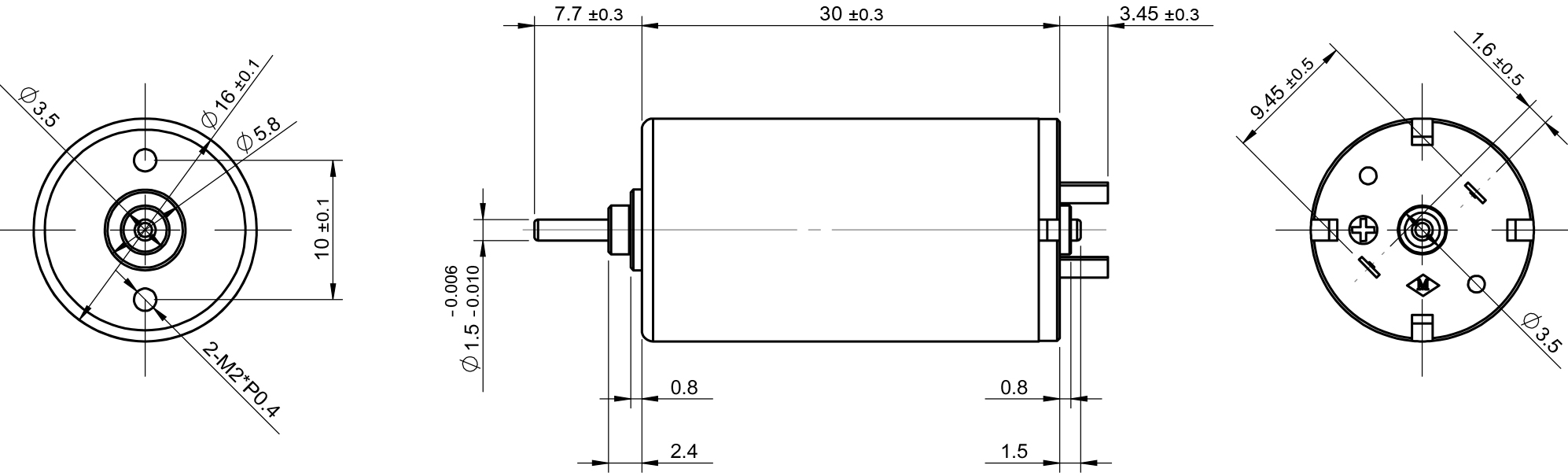

Width: 16mm; Length: 30mm; Voltage: 3.0v, 5.0v, 6.0v; No-load speed: 7700-12000rpm; Maximum output power: 0.3-6.4w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

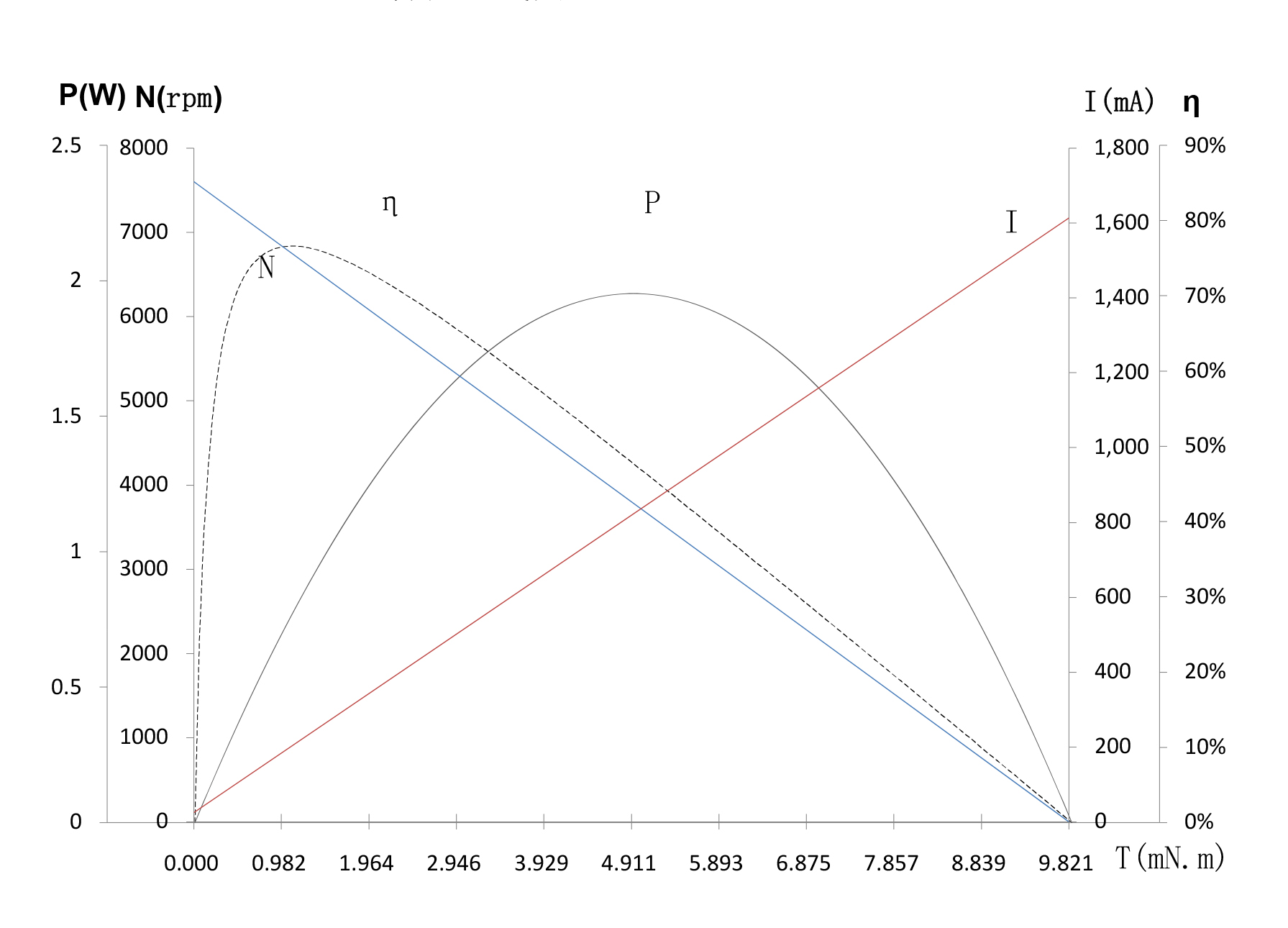

Nombre	Unidad	11-76-5.0	35-25-3.0	22-120-6.0
Voltage	V	5.0	3.0	6.0
Terminal resistance	Ω	3.1	7.2	1.4
No-load speed	rpm	7700	2500	12000
No-load current	mA	25	15	30
Stall torque	mNm	9.8	4.5	20.2
Stall current	mA	1610	420	4290
Load torque	mNm	0.5	1	2
Load speed	rpm	7310	1940	10810
Load current	mA	110	110	450
Max.output power	W	2	0.3	6.4
Max.efficiency	%	78	66	84
Back-EMF constant	mV/rpm	0.6	1.2	0.5
Torque constant	mNm/A	6.1	11	4.7
Speed/torque gradient	rpm/mNm	780	560	590
Weight	g	25.2	25.2	25.2
Rotor inertia	gcm²	0.7	0.7	0.7
Operating temperature range	°C	-20～+85	-20～+85	-20～+85
