C1020...10PP...（1）

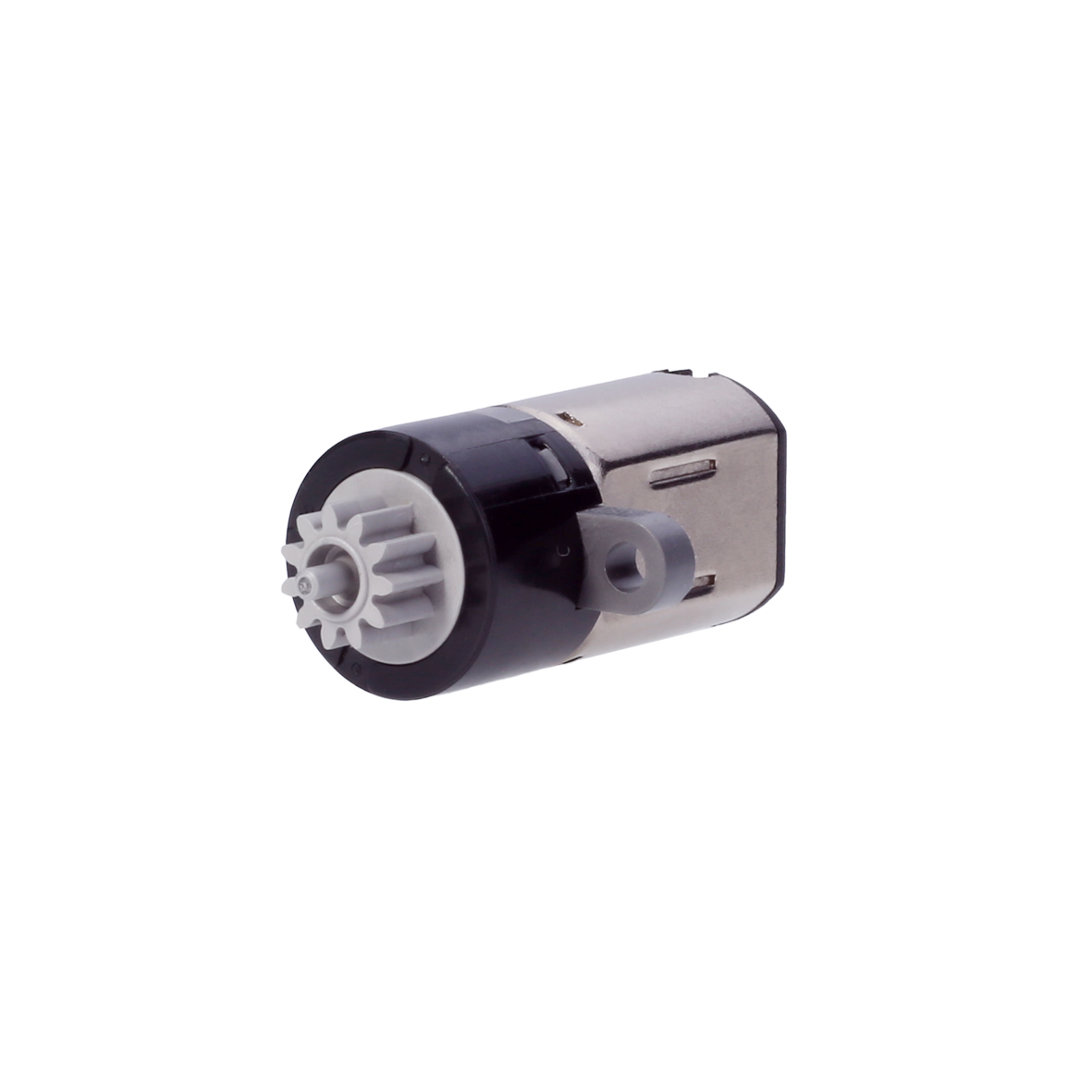

10mm plastic planetary reducer motor

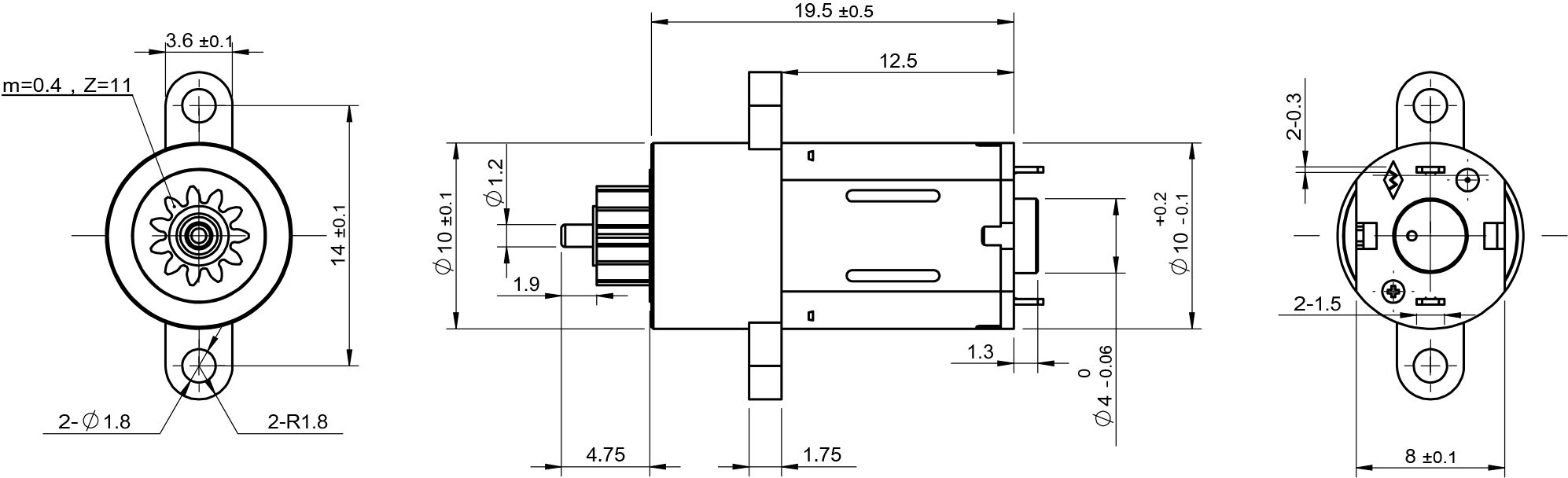

Diameter: 10mm Length: 19.5mm Voltage: 2.5v Speed: 110rpm Gear: Plastic planetary gear reducer Manufacturer: Shenzhen Guangming, Chongqing

Applications: medical equipment, security systems and locks, audio and visual producks, personal healthcare products, and high-end hobby products.

Customizable options: wire length, shaft length, performance,

Unit price: Quote based on customer quantity and solution requirements

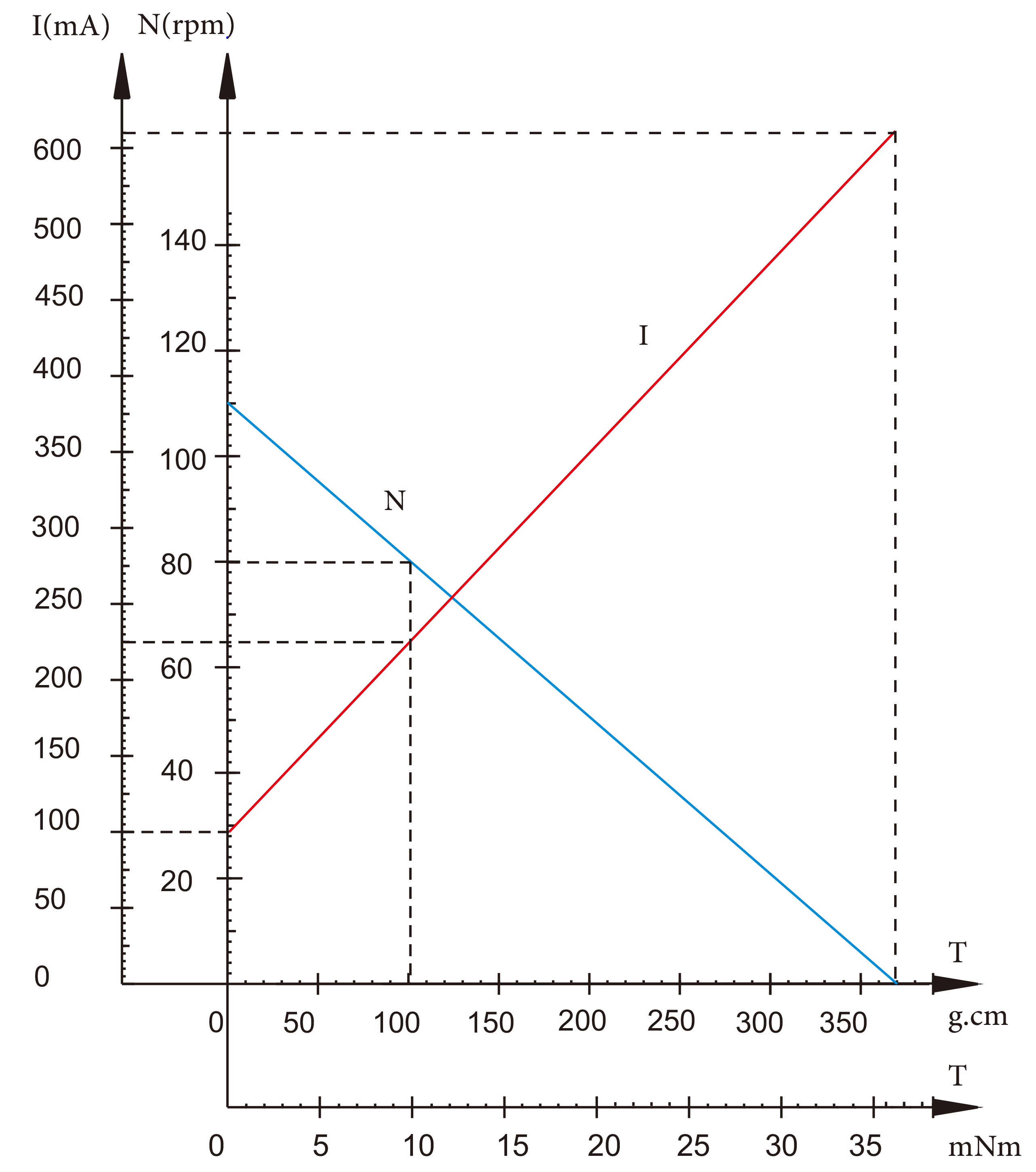

Nombre	Unidad	C1020-110-2.5-10PP171-0051
Voltage	V	2.5
Terminal resistance	Ω	3.7
No-load speed	rpm	110
No-load current	mA	100
Max torque	mNm	37.2
Load torque	mNm	9.8
Load speed	rpm	80
Load current	mA	230
Reduction ratio		1/171
Weight	g	3.8
Operating temperature range	℃	-10～+70
