C1628R

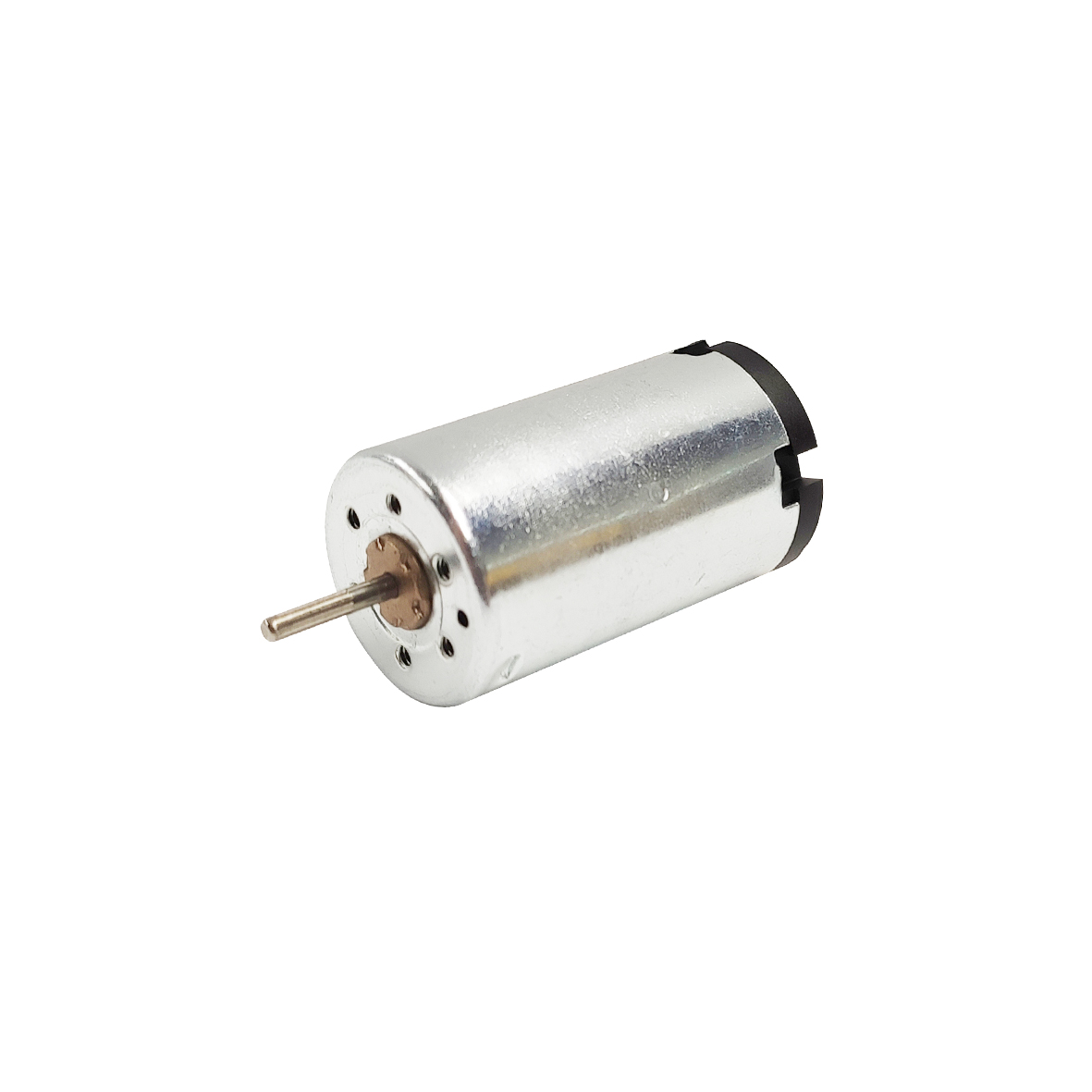

16mm DC iron core motor

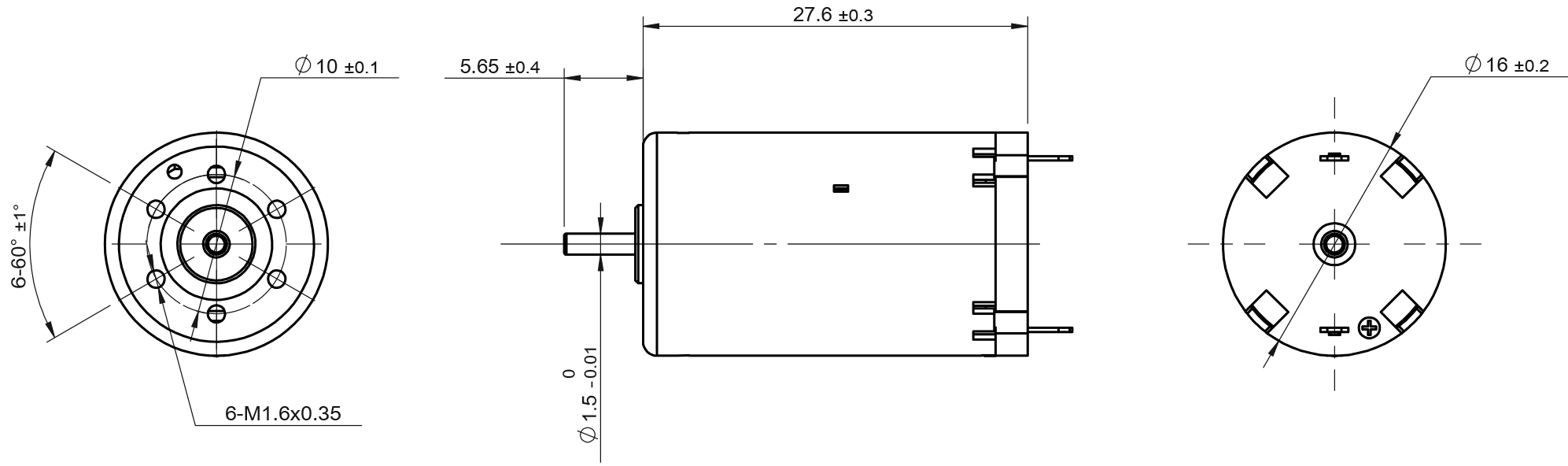

Diameter: 16mm; Length: 27.6mm; Voltage: 12v; No-load speed: 10800rpm;

Load torque: 1.96mNm; Maximum output power: 1.67W.

Applications: small electronic products, portable electric tools, smart door lock, etc.

Customizable options: specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote according to customer quantity and solution requirements

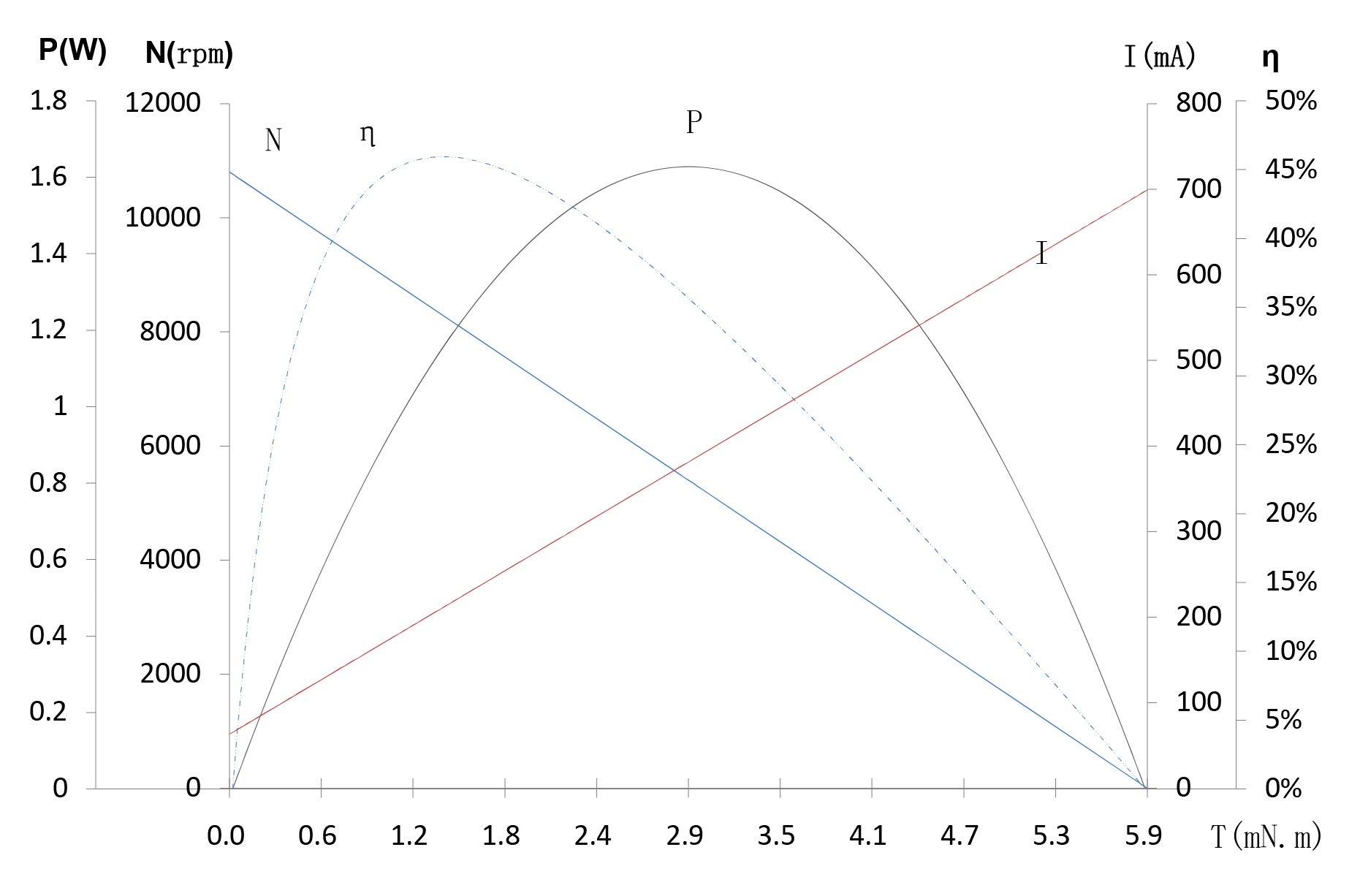

Nombre	Unidad	31-0108
Voltage	V	12.0
No-load speed	rpm	10800
No-load current	mA	63
Stall torque	mNm	5.9
Stall current	mA	700
Load torque	mNm	1.96
Load speed	rpm	7200
Load current	mA	275
Max output power	W	1.67
Max efficiency	%	47.1
Torque constant	mNm/A	9.26
Speed/torque gradient	rpm/mNm	1831
Weight	g	20.8
Varistor	Yes/No	Yes
Operating temperature range	°C	-20～+60
