L1213N5M

12mm DC Coreless Motor Series

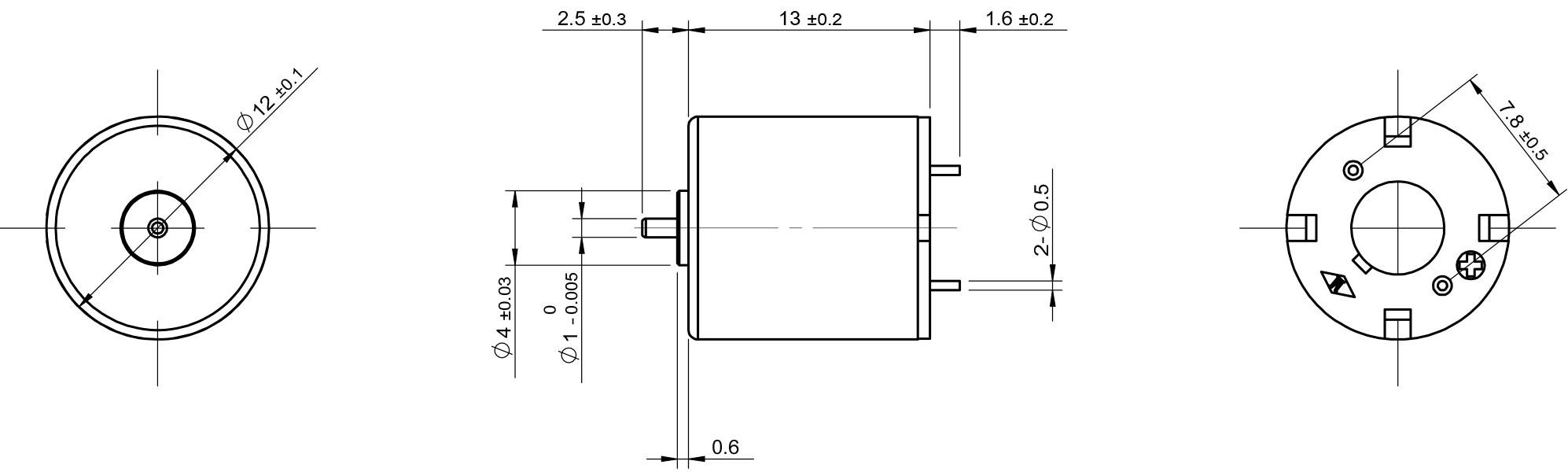

Width: 12mm; Length: 13mm; Voltage: 6.0v, 7.4v; No-load speed: 18500-40500rpm; Maximum output power: 0.9-3.9w.

Applications: mini UAV’s, remote control hobby products, small household appliances, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

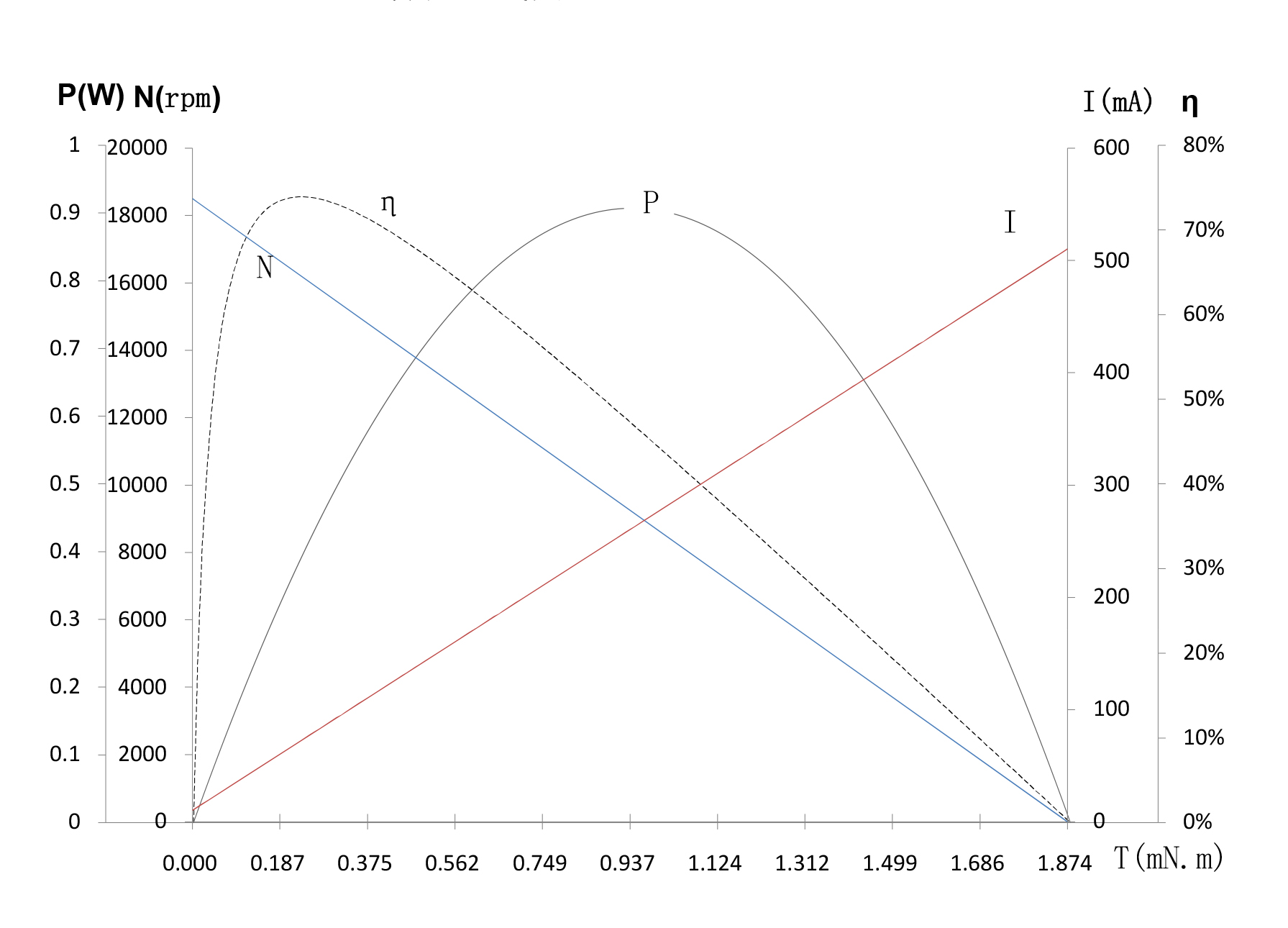

Nombre	Unidad	01-185-7.4	02-300-6.0	05-400-7.4
Voltage	V	7.4	6.0	7.4
Terminal resistance	Ω	14.5	4	3.2
No-load speed	rpm	18500	30000	40500
No-load current	mA	10	25	120
Stall torque	mNm	1.9	2.8	3.7
Stall current	mA	510	1500	2350
Load torque	mNm	0.5	0.5	0.5
Load speed	rpm	13560	24590	35020
Load current	mA	140	290	420
Max.output power	W	0.9	2.2	3.9
Max.efficiency	%	74	76	60
Back-EMF constant	mV/rpm	0.4	0.2	0.2
Torque constant	mNm/A	3.7	1.9	1.7
Speed/torque gradient	rpm/mNm	9880	10830	10970
Weight	g	6.5	6.5	5.6
Rotor inertia	gcm²	0.1	0.1	0.1
Operating temperature range	°C	-20～+85	-20～+85	-20～+85
