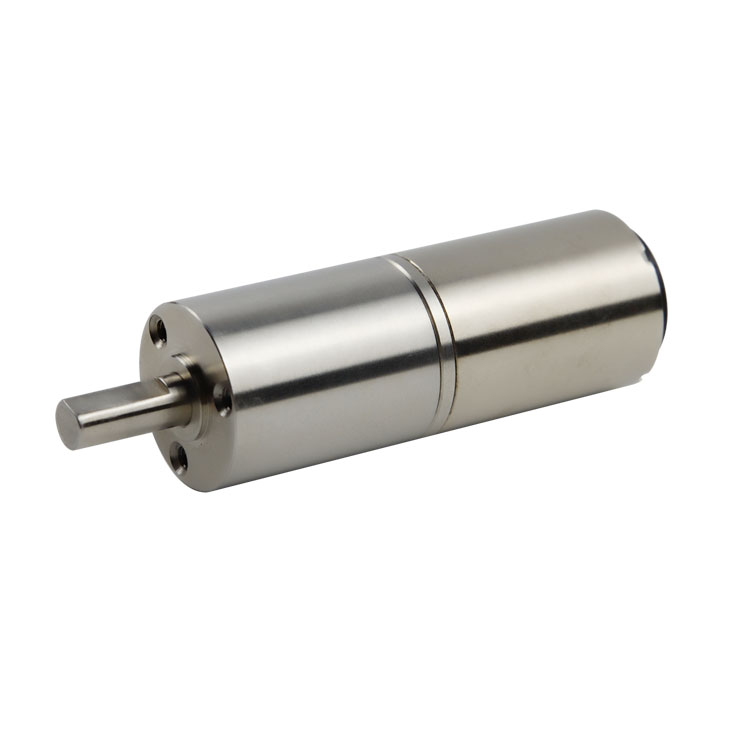

22mm planetary gear reduction motor

Diameter: 22mm; Length: 46~80mm; Voltage: 6v, 6.8v, 24v; Reduction ratio: 5~3968;

Gearbox: planetary metal, powder metallurgy, plastic reduction box.

Applications: medical equipment, scientific instruments, industrial equipment, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox,

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

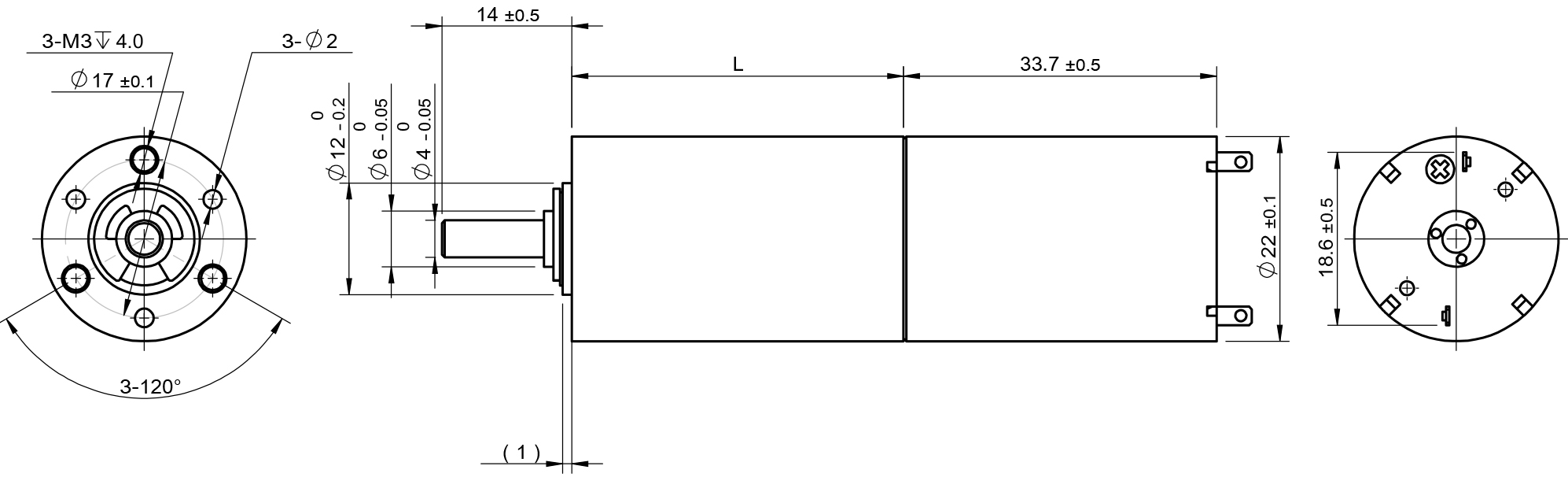

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 2232N5M2B08-63-6.0 2232N9M02-60-6.8 2232N9M01-100-24.0
Voltage V 6.0 6.8 24.0
Terminal resistance Ω 2.9 3 17.2
No-load speed rpm 6300 6000 10000
No-load current mA 0.02 0.015 0.008
Stall torque mNm 18.5 24.2 31.7
Stall current mA 2.07 2.27 1.4
Nominal torque mNm 4 5 7
Nominal speed rpm 4940 4760 7790
Nominal current mA 0.46 0.48 0.32
Max.output power W 3 3.8 8.3
Max.efficiency % 81 84 86
Back-EMF constant mV/rpm 0.9 1.1 2.4
Torque constant mNm/A 9 10.8 22.8
Speed/torque gradient rpm/mNm 300 200 300
Rotor inertia gcm2 4.4 4.4 4.4
Weight g 55 55 55
Gearbox
Number of stages 1 2 3 4 5 6
Reduction ratio 5 18~25 66~136 246~735 1475~3968 　
Max. rated torque mNm 100 300 400 500 600 　
Max. momentary torque mNm 300 900 1200 1500 1800 　
Length（L） mm 23.3 29.5 35.7 41.9 48.1 　
Shell material Metal
Gear processing technology Powder metallurgy
